Description

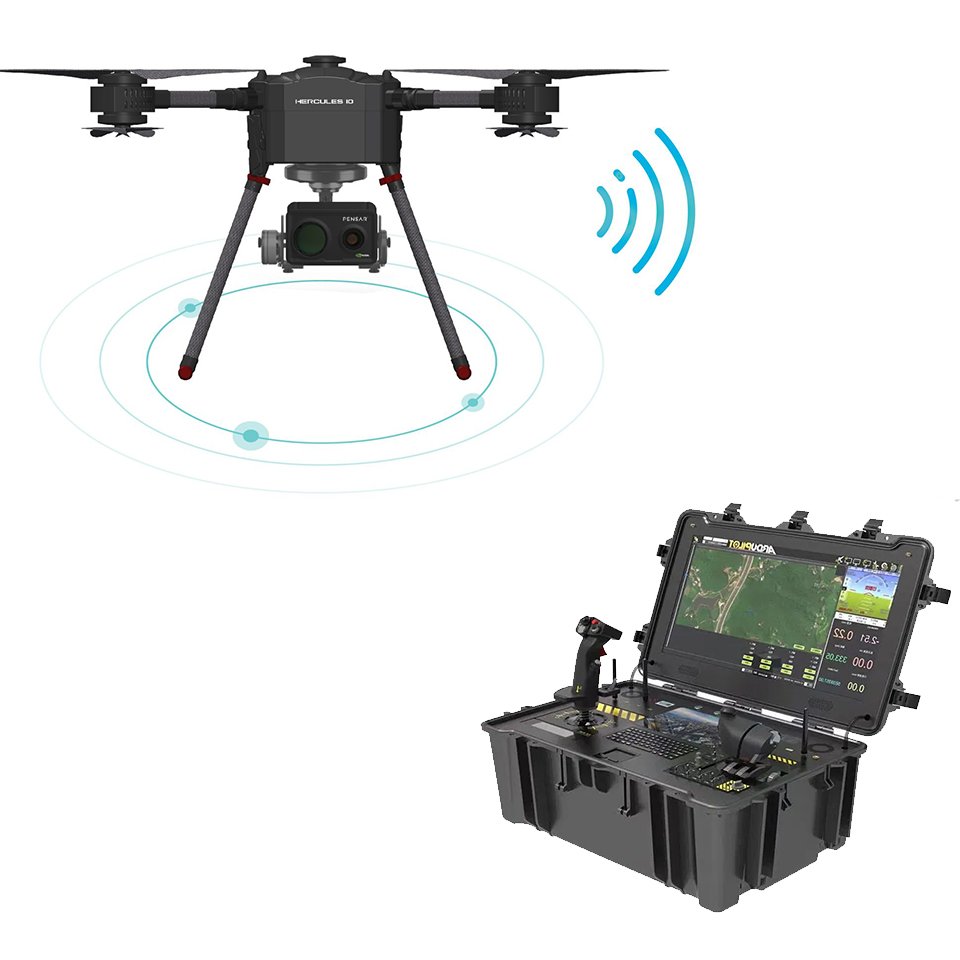

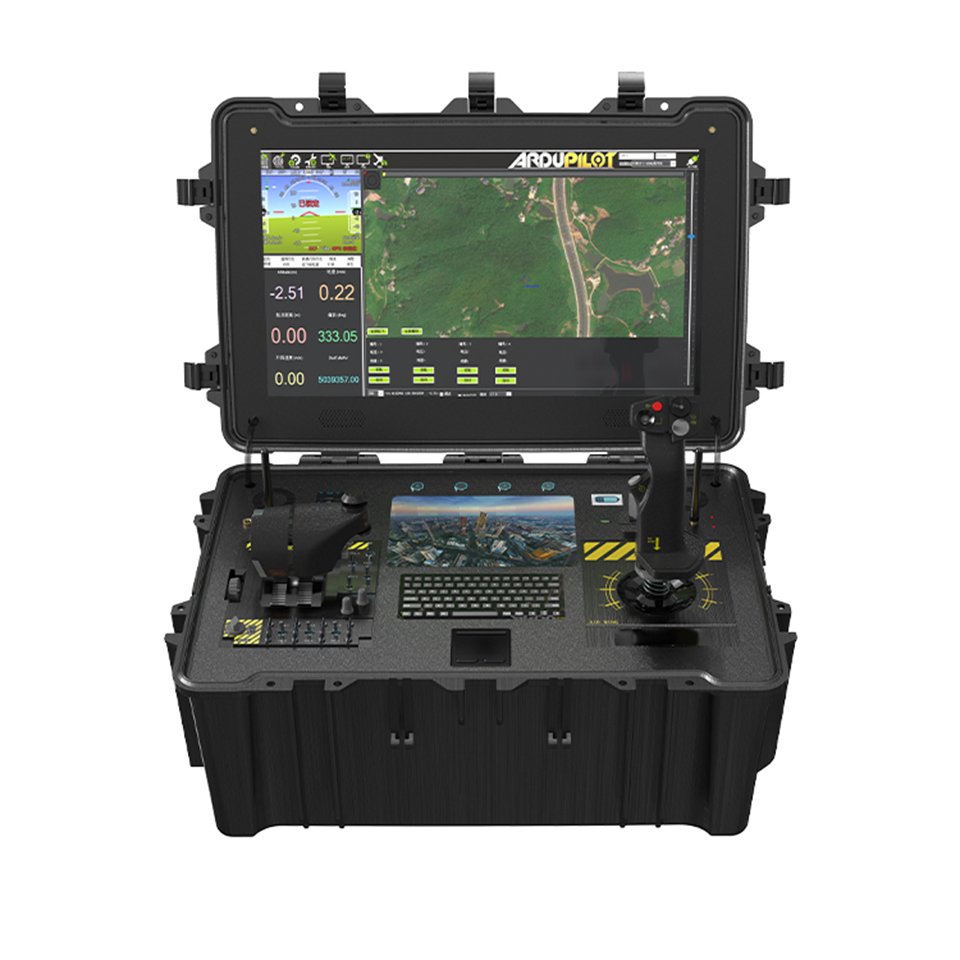

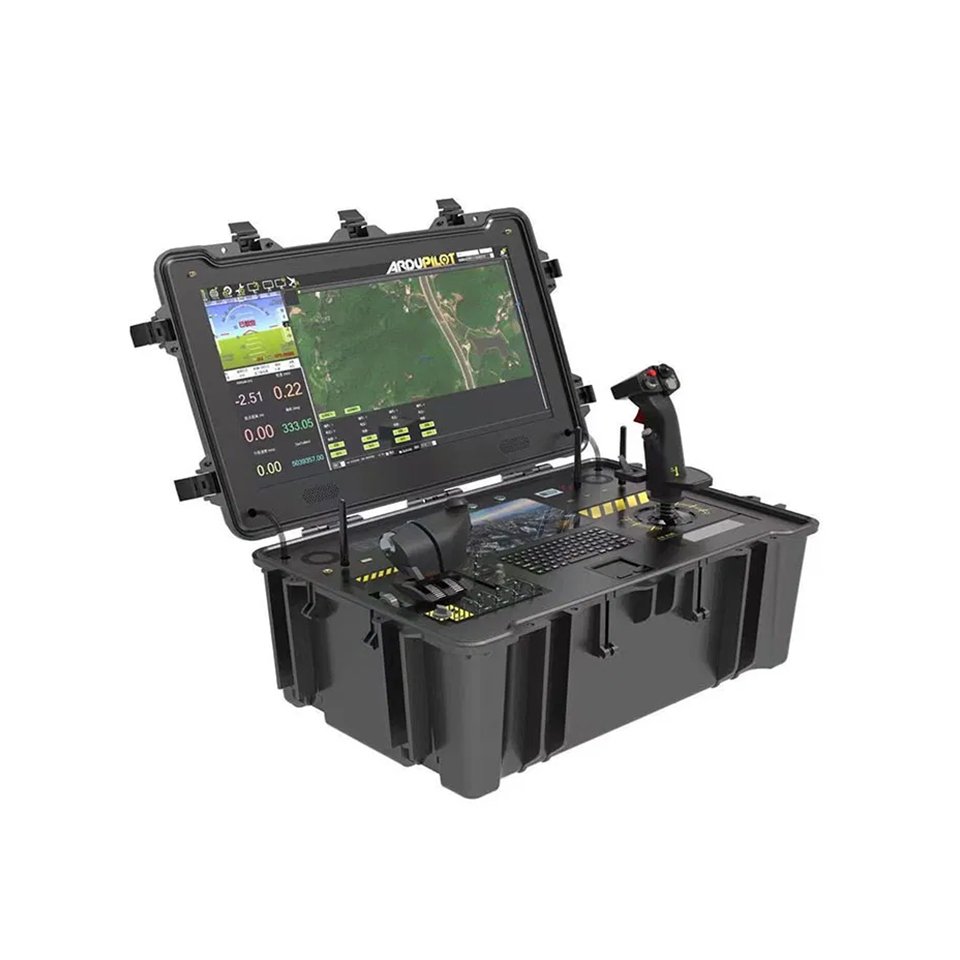

The SoarApex UAV control station S01 is a multi-functional portable ground control station (GCS) designed for professional UAV operations. It integrates a rugged industrial computer, dual high-brightness displays, precision control interfaces, and data link systems into a single 15kg transportable unit.
Multi-functional UAV Control Station S01 Key Features
- IP67 Three-Proof Protection: Rugged PVC safety case with built-in pull rod and external lifting cover for field deployment
- Dual 20″ High-Brightness Displays: 1920×1080 resolution, 1000nit LED backlight with automatic induction regulation for outdoor visibility
- Industrial Control System: Intel i5-6500T processor, Windows 10, 8GB RAM, 256GB SSD for reliable mission computing
- Precision Control Interface: Dual Hall sensor joysticks, 4 paddles, 2 knobs, and 4 push-buttons with SBUS/USB-HID protocols
- Extended Field Endurance: 4-hour battery operation with comprehensive protection (overcurrent, overvoltage, overtemperature, low voltage)
- Wide Temperature Operation: Reliable performance from -20°C to 60°C for extreme environments
System Overview
Built for mission-critical applications, the S01 provides comprehensive functions including mission planning, attitude control, payload management, remote monitoring, and real-time video display. The off-the-shelf design offers a flexible and universal solution for controlling unmanned vehicles and payloads across diverse operational scenarios.
Rugged Industrial Design
IP67 Three-Proof Protection
The S01 features a professional-grade safety enclosure with IP67 ingress protection, ensuring complete dust sealing and temporary water immersion resistance. The matte black PVC shell withstands harsh field conditions while the built-in pull rod and external lifting cover enable rapid deployment and transport.
Environmental Resilience
- Operating Temperature: -20°C to 60°C for desert, arctic, and tropical environments
- Impact Resistance: Reinforced corners and structural integrity for transport durability
- Portability: 556×358×230mm form factor with integrated mobility features
Dual Display System
20″ Industrial Monitors
The S01 integrates dual 20-inch displays with 1920×1080 full HD resolution and 16:9 aspect ratio. The LED backlight system delivers 1000nit maximum brightness with automatic induction regulation, ensuring clear visibility in direct sunlight and changing lighting conditions.
Display Specifications
- Resolution: 1920 × 1080 pixels
- Brightness: 1000nit with auto-regulation
- Input: HDMI interface for video sources
- Configuration: Left and right dual-screen setup for multi-view operations
Precision Control Interface
Industrial-Grade Joysticks
The S01 integrated UAV/USV/UGV control station features dual industrial joysticks with Hall sensors for precise, contactless control input. Hall effect technology eliminates mechanical wear, ensuring consistent performance over extended operational periods and resistance to environmental contamination.
Control Layout
- Joysticks: 2× industrial Hall sensor joysticks for primary flight control
- Paddles: 4× control paddles for auxiliary functions
- Knobs: 2× rotary knobs for parameter adjustment
- Push-buttons: 4× momentary buttons for discrete commands
- Protocol Support: SBUS and USB-HID output for universal compatibility
Integrated Computing Platform
Industrial Control Host
The SoarApex UAV control station S01 incorporates a high-reliability computing core based on the Intel i5-6500T processor with Windows 10 operating system. The 8GB memory and 256GB solid-state storage provide responsive performance for mission planning software, video decoding, and data logging applications.
Connectivity Options
- I/O Interfaces: USB, network port, serial port, HDMI
- Feeder Interfaces: N-type and SMA connectors for antenna systems
- Human-Machine Interface: Industrial mouse button suite
- Power Management: Main power supply, power-on key, link power control
SoarApex UAV control station S01 – Technical Specifications
| Physical Characteristics | |
| Enclosure Type | Three-proof safety case |
| Dimensions | 556mm (L) × 358mm (W) × 230mm (H) |
| Weight | 15kg |
| Shell Material | PVC |
| IP Rating | IP67 |
| Working Temperature | -20°C to 60°C |
| Color | Matte black |
| Portable Features | Built-in pull rod, external lifting cover |
| Battery Endurance | 4 hours |
| Operation Panel | |
| Panel Material | 3K Carbon fiber plate |
| Interface Support | USB × 2, DC IN, HDMI, RJ45 |
| Feeder Interface | N-type, SMA |
| Human-Machine Interaction | Industrial mouse button suite |
| Switch Parameters | Main power, power-on key, link power |
| Cooling System | Industrial cooling fan |
| Industrial Control Host | |
| Processor | Intel i5-6500T |
| Operating System | Windows 10 |
| Memory | 8GB |
| Storage | 256GB SSD |
| I/O Interface | USB, Network port, Serial port, HDMI |
| Dual Display System | |
| Screen Size | 20 inches (dual) |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Backlight Type | LED |
| Maximum Brightness | 1000nit (automatic induction regulation) |
| Input Interface | HDMI |
| Control Interface | |
| Joysticks | 2 × industrial Hall sensor joysticks |
| Paddles | 4 |
| Knobs | 2 |
| Push-buttons | 4 |
| Communication Protocol | SBUS, USB-HID |
| Battery & Power Management | |
| Display Contents | Voltage, current, residual capacity, power |
| System Protection | Overcurrent, overvoltage, low voltage, overcapacity |
| Battery Protection | Overcurrent, overtemperature, overvoltage, low voltage |
| Endurance | 4 hours |
SoarApex UAV control station S01 – Application Scenarios
Industrial Drone Operations
The S01 provides comprehensive ground control for VTOL fixed-wing drones, multi-rotor systems, and unmanned helicopters in applications including powerline inspection, pipeline monitoring, and precision agriculture.
Emergency Response & Search
With IP67 protection and wide temperature operation, the S01 deploys rapidly to disaster zones for search and rescue coordination, fire monitoring, and emergency communication relay.
Surveillance & Security
Dual high-brightness displays enable continuous monitoring of multiple video feeds for border patrol, facility security, and law enforcement operations.
Regulatory Compliance
For UAV ground control operations, refer to FAA Part 107 guidelines for commercial UAS operations and ITU-R recommendations for radio frequency spectrum allocation for frequency usage compliance.
Related Products

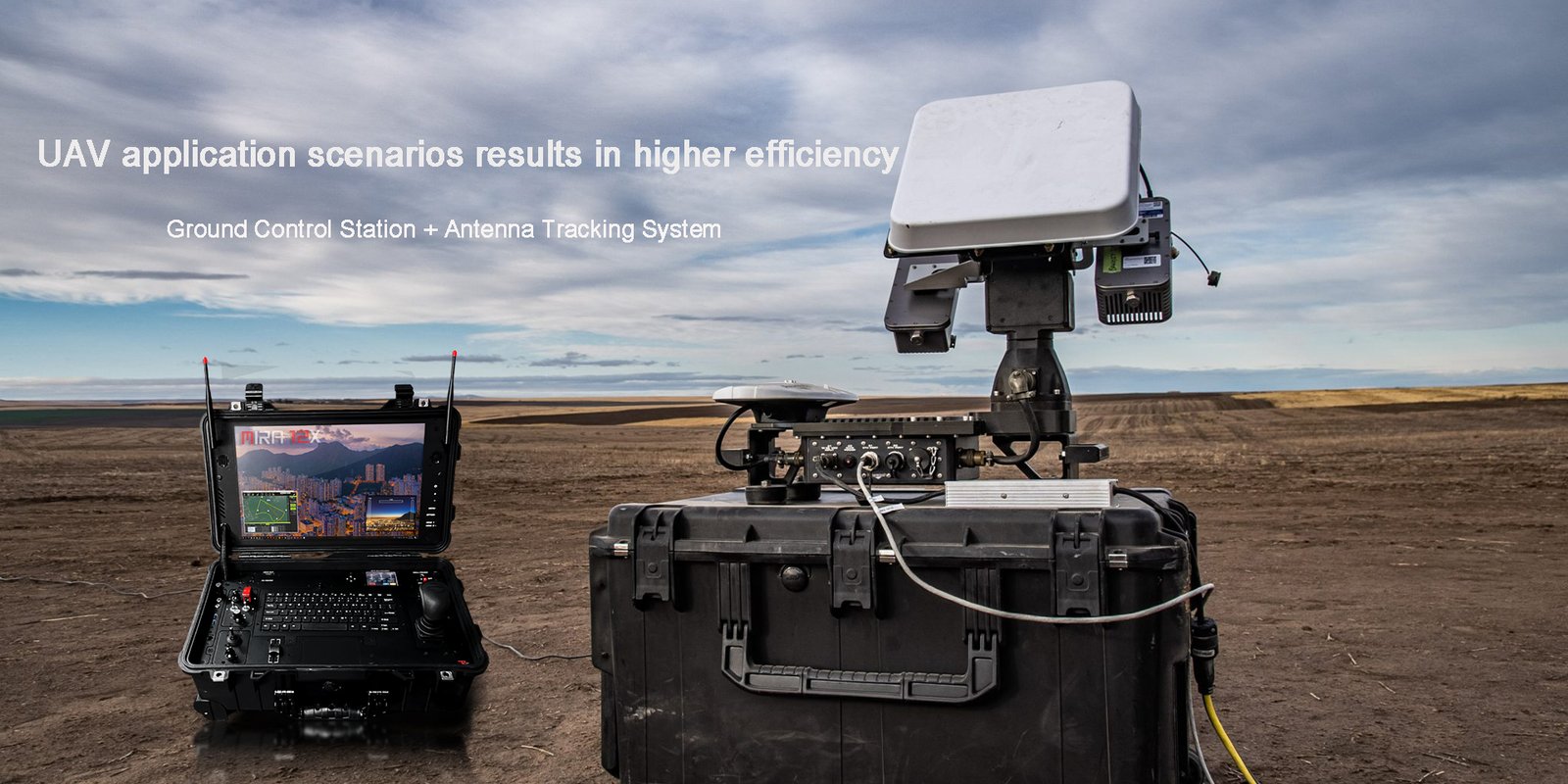

For enhanced antenna tracking, see our Automatic Antenna Tracking System. For long-range communication, explore our UAV Data Link Systems. For extended field power, consider our Industrial UAV/USV Outdoor Power Station.
Frequently Asked Questions of SoarApex UAV control station S01
What is the S01 control station used for?
The S01 is a portable multi-functional ground control station for UAVs, USVs, and robotic systems. It integrates flight control, telemetry, video display, and payload management in a ruggedized IP67 enclosure for field operations.
Does the S01 support VTOL aircraft?
Yes, the S01 is specifically designed for VTOL fixed-wing, multi-rotor, and helicopter platforms with dedicated attitude control and mission planning capabilities.
What is the display brightness of the SoarApex UAV control station S01?
The S01 features dual 20-inch displays with 1000nit LED backlight and automatic induction regulation, ensuring clear visibility in direct sunlight and outdoor environments.
How long does the S01 battery last?
The standard configuration provides 4 hours of continuous operation. Extended battery options are available for longer missions.
Is the S01 waterproof?
Yes, the S01 has IP67 protection, meaning it is completely dust-tight and can withstand temporary immersion in water up to 1 meter depth.
Can the S01 operate in extreme temperatures?
Yes, the S01 is rated for -20°C to 60°C operation, making it suitable for desert, arctic, and tropical deployment environments.
Contact us for custom configurations, bulk pricing, and integration support.
