Specialized Unmanned Systems
Multi-Domain Integration – Air, Surface, and Ground

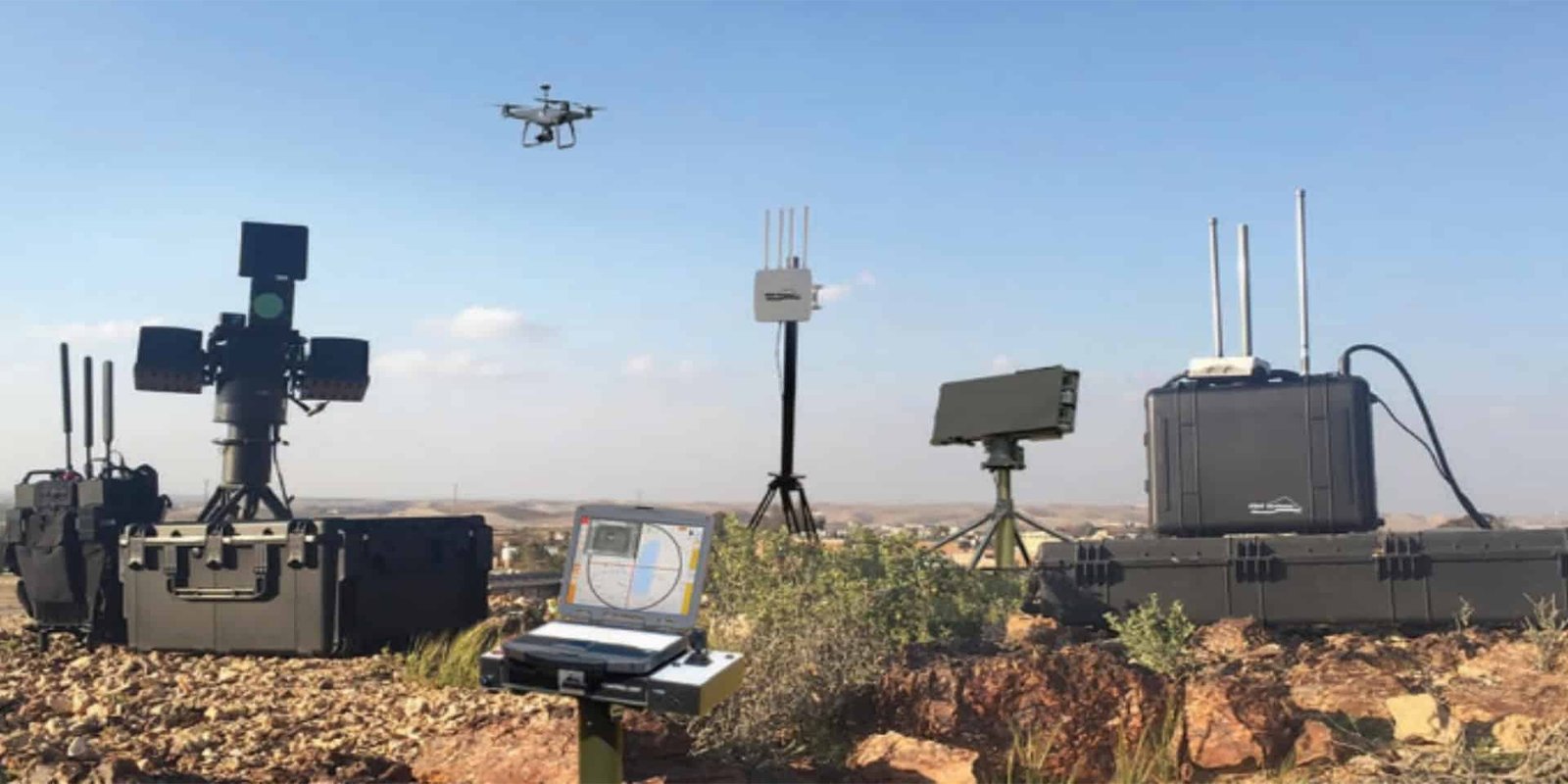

SoarApex designs and deploys integrated specialized unmanned systems for complex operational environments. Our solutions combine FPV aerial platforms, unmanned surface vessels (USV), and unmanned ground vehicles (UGV) into a unified command architecture – delivering cross-domain situational awareness from a single ground control station.
One Command Architecture, Three Domains
SoarApex integrates FPV aerial systems, USV maritime platforms, and UGV ground vehicles into unified command-and-control networks – one operator, multiple domains, full situational awareness.
Aerial Domain
UAV / FPVRapid-response quadcopters with thermal/EO dual-sensor, mesh-networked relay for beyond-line-of-sight operations.
- FPV rapid-response deployment
- Thermal/EO dual-sensor payload
- Mesh-networked relay
- 15-minute patrol cycle
Maritime Domain
USVAutonomous patrol boats with radar/sonar payload, automatic intruder tracking, and 8-hour endurance.
- 35+ knots high-speed USV
- Radar/sonar payload
- 8-hour endurance
- Emergency supply delivery
Ground Domain
UGVMobile surveillance units with all-terrain mobility, 360° panoramic vision, and autonomous route patrol.
- All-terrain mobility
- 360° panoramic vision
- Autonomous route patrol
- Toxic gas detection
Integrated Special Mission Solutions
Each solution combines domain-specific platforms with SoarApex data links, ground control systems, and mission software. All configurations are validated for cross-platform interoperability and unified command interface.
Aerial Layer
FPV rapid-response quadcopters – 15-minute patrol cycle, thermal/EO dual-sensor, mesh-networked relay
Maritime Layer
USV autonomous patrol boats – 8-hour endurance, radar/sonar payload, automatic intruder tracking
Ground Layer
UGV mobile surveillance units – all-terrain mobility, 360° panoramic vision, autonomous route patrol
Unified Command

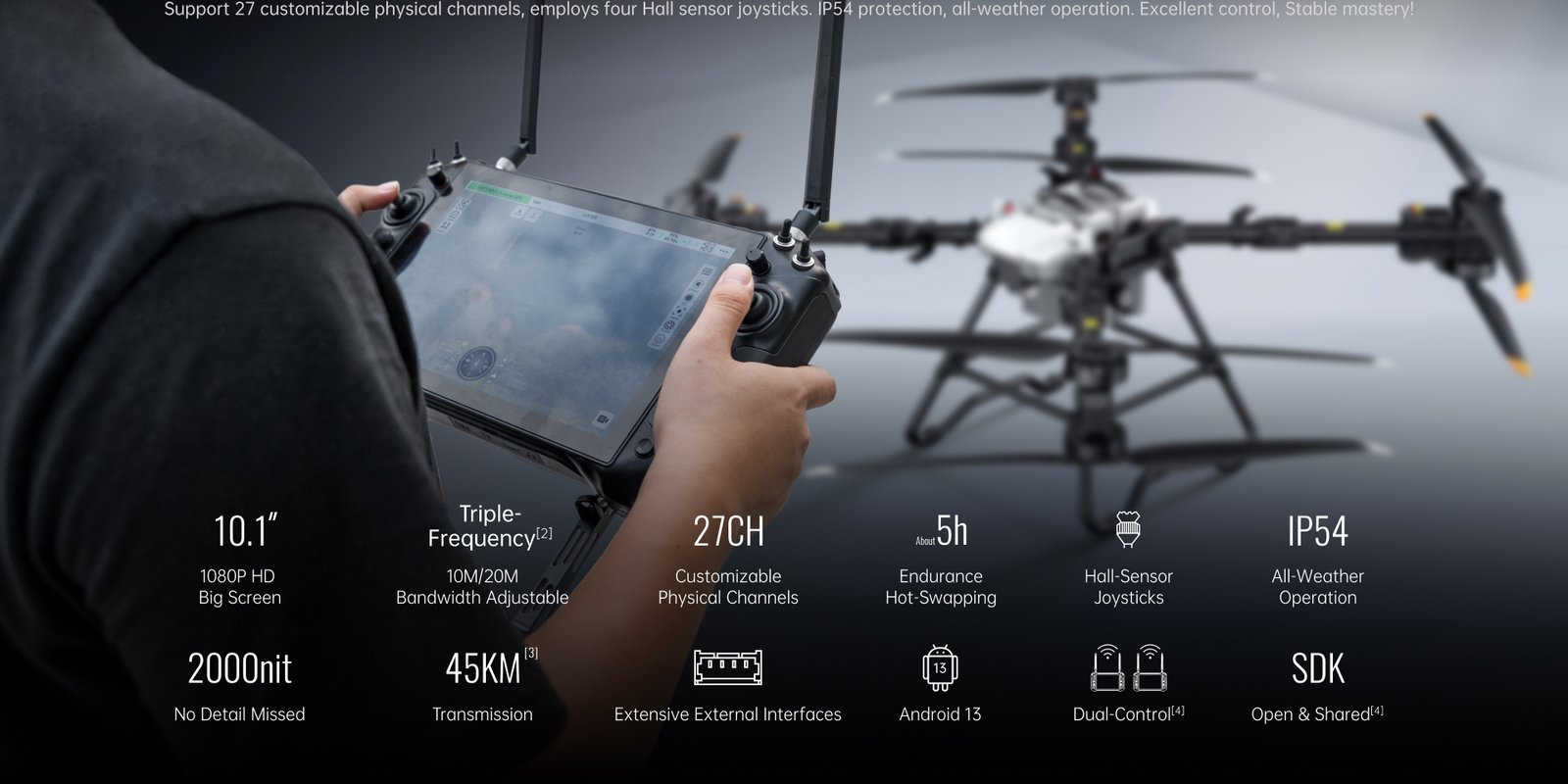

UniRC10 Pro GCS with multi-domain display – single operator controls all three platforms simultaneously
USV Lead
High-speed USV (35+ knots) – first arrival to distress zone, sonar-based victim localization, emergency supply delivery
FPV Support
FPV aerial overwatch – real-time surface situation assessment, thermal detection of survivors, communication relay
UGV Shore
UGV landing support – autonomous beach/shoreline access, payload transfer from USV to land rescue team
Unified Command
Portable GCS with maritime chart overlay, automatic SAR pattern generation, multi-platform task allocation

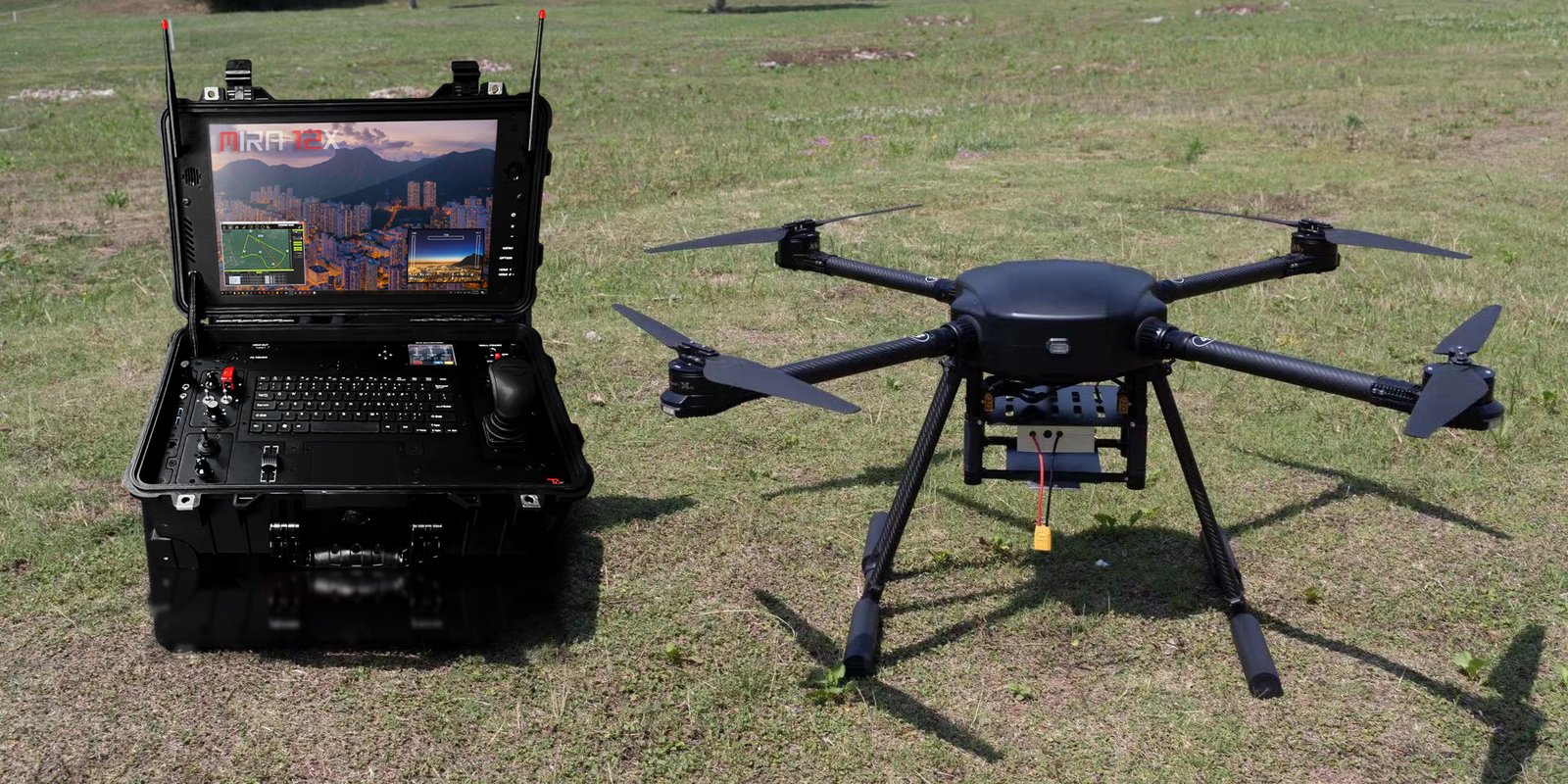

FPV Aerial
Close-structure inspection – confined space access, high-resolution defect imaging, real-time video streaming to remote experts
USV Surface
Cooling water intake, reservoir, and pipeline inspection – sonar profiling, wall thickness measurement, biofouling assessment
UGV Ground
Facility perimeter patrol, hazardous area reconnaissance, toxic gas detection with autonomous alarm response
Unified Data
All inspection data streams to centralized digital twin platform – trend analysis, predictive maintenance alerts, compliance reporting
Specialized Unmanned Systems Integration Architecture
SoarApex specialized unmanned systems employ a unified command-and-control architecture that enables seamless interoperability across FPV drone, USV vessel, and UGV robot platforms.
FPV Drone Layer
Rapid aerial response with thermal/EO sensors and mesh relay capability
USV Vessel Layer
Maritime patrol with radar/sonar and autonomous tracking systems
UGV Robot Layer
Ground surveillance with all-terrain mobility and hazard detection
SDL Data Link
Common protocol with adaptive frequency hopping up to 100km range
UniRC10 Pro GCS
Single-operator multi-domain control with automated task allocation
Unified Protocol Stack
The system utilizes a common data link protocol (MAVLink/NGCP) with adaptive frequency hopping, ensuring reliable communication in contested electromagnetic environments. All platforms feed situational awareness data into a centralized mission computer, enabling single-operator control of multiple domain assets with automated task allocation and collision avoidance.
4-Hour Activation

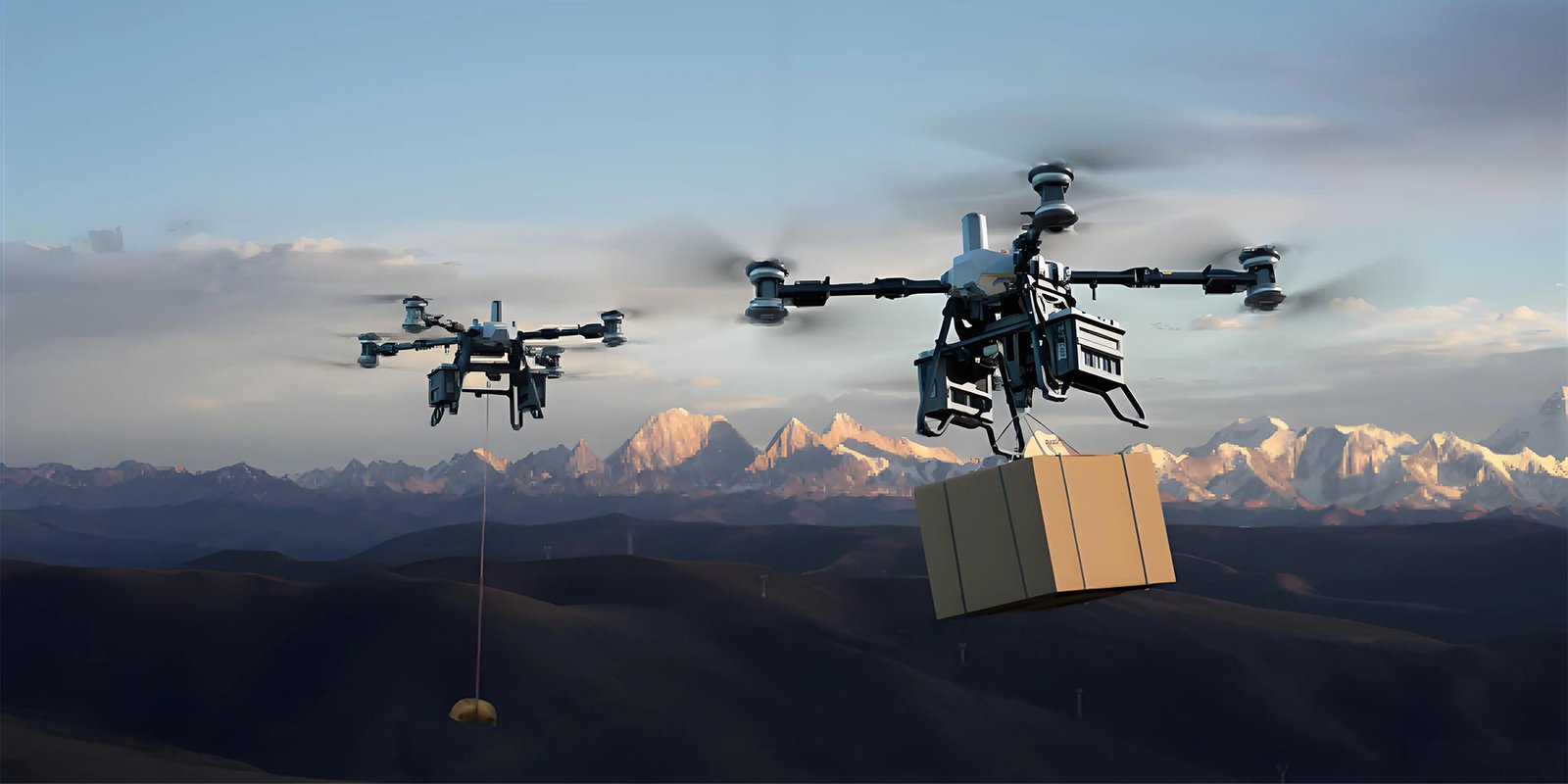

Deployment and Logistics
Every specialized unmanned systems configuration is delivered in ISO-compatible ruggedized containers, enabling rapid global deployment by air, sea, or land transport.
-
01
ISO-Compatible Containers
Ruggedized packaging for air, sea, or land transport anywhere in the world
-
02
4-Hour Field Activation
From container opening to operational status including assembly, link verification, and calibration
-
03
Comprehensive Training
From basic operator certification to advanced mission planning and multi-asset coordination
60% Manpower Reduction
Why Choose SoarApex Specialized Unmanned Systems Integration?
Industry-leading integration expertise delivering measurable operational advantages across all domains.
-
01
Cross-Domain Interoperability
FPV, USV, and UGV platforms share unified MAVLink/NGCP protocols – seamless task handover and coordinated operations
-
02
Single Operator, Multiple Domains
One UniRC10 Pro GCS controls aerial, surface, and ground assets simultaneously – reducing manpower requirements by 60%
-
03
Regulatory & Export Compliance
Full documentation for dual-use technology export, ITAR/EAR classification support, and end-user certification assistance
-
04
Custom Mission Software
Mission-specific applications – SAR pattern generation, perimeter AI analytics, predictive maintenance algorithms
Solution Components
Individual components available for system upgrades or custom integration projects. All items carry SoarApex compatibility certification for multi-domain operations.

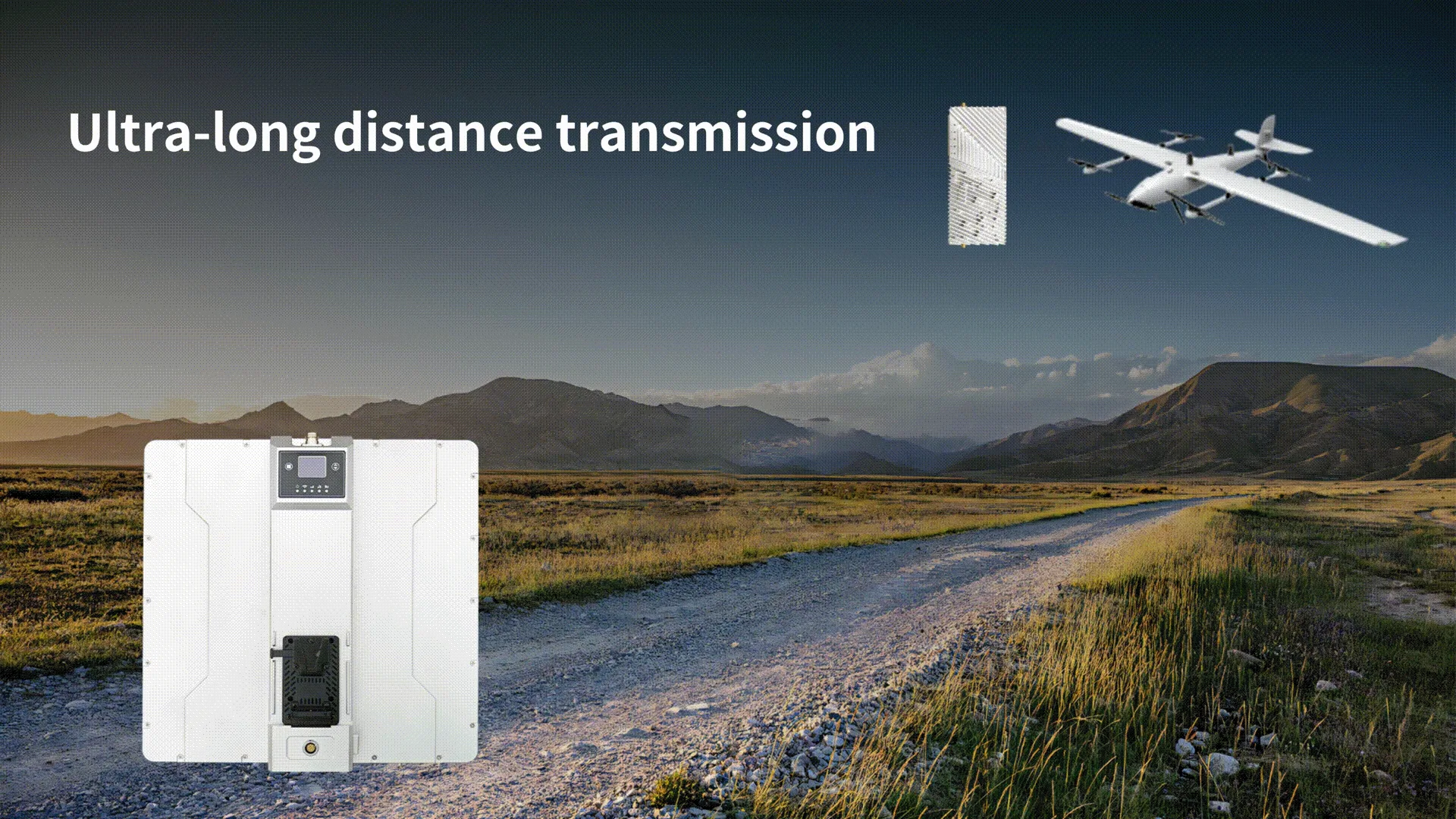

SDL MK100 Video Data Link
MK100 Wireless Video Data, 100 kilometers ultra long distance wireless integrated video data transmission system for UAV drones, USV vessels & UGV robots.
ATS Pro BVLOS Antenna Tracking
ATS Pro Antenna Tracking System integrates a satellite/inertial combination navigation system internally, enabling precise perception of its own position, attitude, and speed, accurately aligning the antenna with the UAV drones.
Plan Your Multi-Domain Operation
Describe your mission environment – our specialized unmanned systems engineers will respond within 24 hours with a tailored integration proposal and deployment timeline.
