BVLOS Mission-Ready Systems

Extend Your Drone’s Operations
from 10 km to 200 km

Pre-Integrated UAV Antenna Tracking Systems for BVLOS Missions

Extend your drone’s operational range with SoarApex integrated tracking solutions. Pre-configured, tested, and ready for deployment.

UAV Antenna Tracking System Capabilities

Pre-integrated BVLOS antenna tracking solutions for fixed-wing and multi-rotor UAV platforms

📡

High Directional Gain & Anti-Interference

Precision beam steering with superior signal integrity in complex RF environments. Paired with our UAV data link systems for end-to-end communication reliability.

🌐

Multi-Band Fusion

L-band / 2.4GHz / 5.8GHz unified architecture for seamless frequency agility. Compliant with FAA BVLOS regulatory frameworks for commercial operations.

🧭

Real-Time Inertial Navigation

Motion compensation with centimeter-level accuracy for dynamic platform operations. Integrated with ground control terminals for real-time telemetry visualization.

🎯

Adaptive Beam-Forming & Phased Array

Multi-target tracking capability with electronically steered beams for swarm operations. Learn more in our technical whitepaper on phased array antenna systems.

🛰️

Satellite Relay & 5G-A Compatibility

Ultra-long range connectivity via satellite relay and next-gen 5G-Advanced integration. Ideal for long-range infrastructure inspection and maritime operations.

⚡

Rapid Deployment

Lightweight, man-portable kits with quick setup for vehicles, boats, and mobile units. Available as part of our custom integration packages for OEM partners.

Product Portfolio

Antenna Tracking System Solutions

Our antenna tracking systems deliver precision directional communication for Fixed-Wing Platform long-endurance missions, Multi-rotor UAV Drones dynamic operations, Integrated Data Link ecosystem compatibility, and Project Power Station field deployment support.

ATS20 High-Precision Antenna Tracking System for BVLOS UAV Operations
Auto-Tracking

ATS20 Antenna Tracking System

High-precision dual-axis tracking gimbal with automatic UAV position lock for extended BVLOS missions up to 20km range.

20km Range Dual-Axis Auto-Lock
View Details
MF18 Multi-Frequency Antenna Tracking System for Industrial UAV
Multi-Frequency

MF18 Antenna Tracking System

Multi-frequency tracking platform supporting 800MHz to 5.8GHz bands with rapid frequency switching for versatile mission profiles.

Multi-Band Rapid Switch 18dBi Gain
View Details

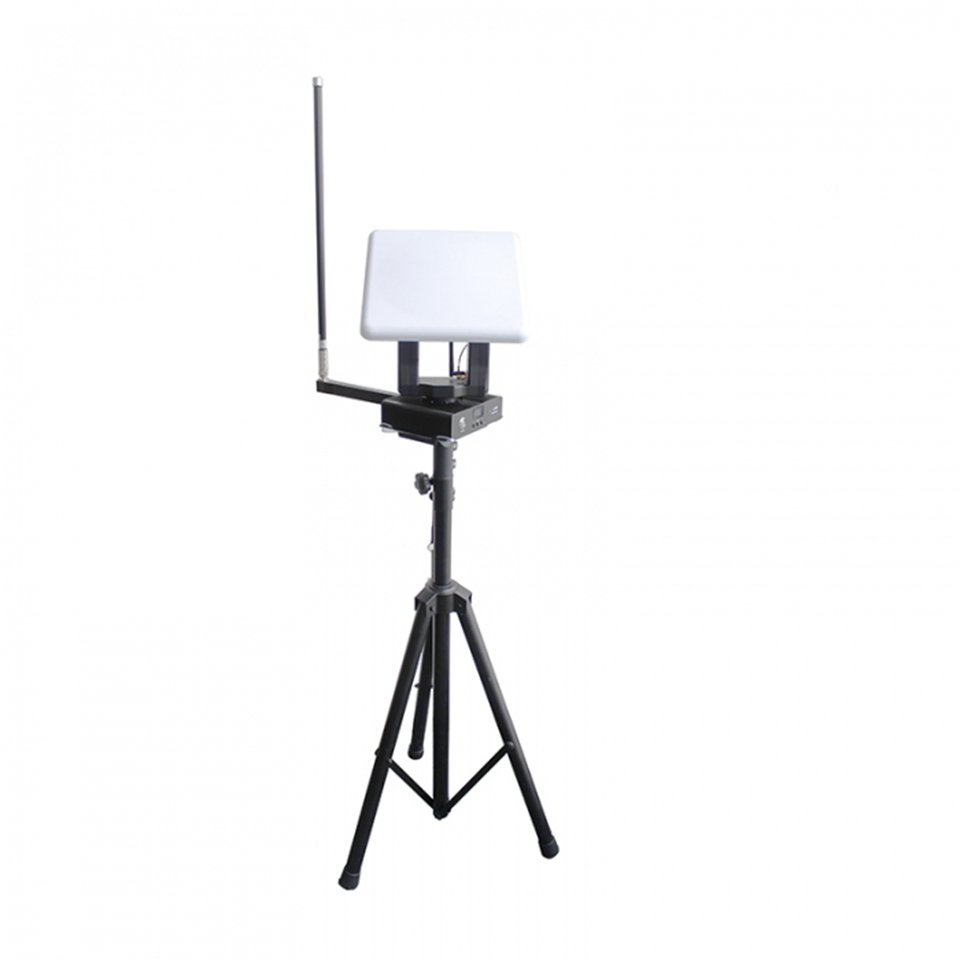

ATS10 Compact Tracking Antenna for Portable UAV Ground Station
Portable

ATS10 Tracking Antenna

Compact lightweight tracking antenna designed for rapid deployment with portable ground stations and mobile command units.

Lightweight Rapid Deploy 10km Range
View Details
View More
Why SoarApex

Why Choose BVLOS
Antenna Tracking System?

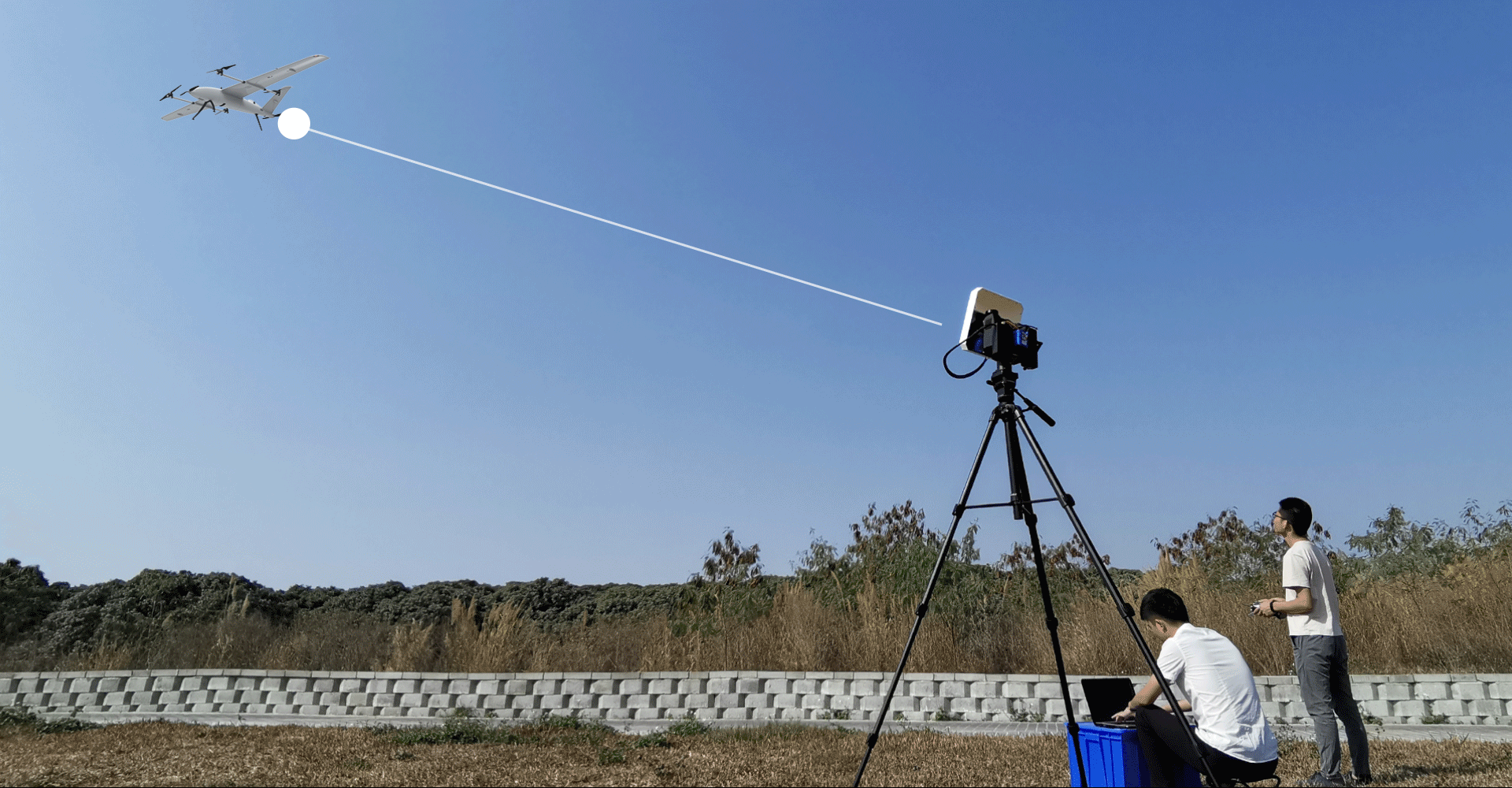

UAV antenna tracking kit, lightweight and man-portable, providing the capability needed to rapidly deploy across diverse situations. The automatic antenna tracking system can be quickly attached to vehicles, boats, or mobile units with quick setup and takedown for highly mobile operations.

By obtaining the aircraft location, combined with the built-in RTK positioning module, it can calculate the relative position of the ATS itself and the aircraft, and can provide centimeter-level accurate positioning of the aircraft even over complicated areas such as lush vegetation.

200km
Max Range
<1°
Tracking Accuracy
3Bands
Frequency
01

Pre-Integrated & Tested

Every system is assembled, calibrated, and field-tested before delivery. Deploy faster with less integration risk. Compatible with SoarApex data links and third-party radios.

02

Scenario-Optimized Configurations

Choose from pre-tuned parameter sets for powerline inspection, emergency response, or long-range surveillance missions.

03

End-to-End Support

From initial consultation and simulation to on-site commissioning and operator training — we support the full project lifecycle for your custom UAV integration projects.

04

Flexible Integration

Compatible with major tracking antenna for UAV platforms and ground control stations. Custom mechanical and electrical interfaces available for OEM projects.

Typical Applications

Proven across industrial and defense missions worldwide

UAV antenna tracking system for powerline inspection with BVLOS communication

Powerline Inspection

Reliable beyond-visual-range communication for high-voltage line patrol and defect detection. Our UAV data link ensures stable telemetry over 200 km.

View Solution →
Automatic antenna tracking system deployed for emergency response and search rescue missions

Emergency Response

Rapid-deploy tracking for disaster assessment and search and rescue in remote areas. Compatible with VTOL fixed-wing platforms for extended endurance.

View Solution →
BVLOS antenna tracking system for long-range surveillance and border patrol operations

Long-Range Surveillance

Stable data link for border patrol and critical infrastructure monitoring over extended distances. Learn about FAA BVLOS regulations for commercial operations.

View Solution →
Tracking antenna for UAV surveying and mapping with photogrammetry capabilities

Surveying & Mapping

Consistent telemetry and video feed for large-area photogrammetry and 3D modeling missions. Integrated with ground control stations for real-time data processing.

View Solution →

Ready to Extend Your UAV Operations?

Contact us now to find out more about the Smart UAV Antenna Tracking System (ATS), or about your mission requirements and we’ll recommend the optimal system configuration.

Get a Custom Quote → Speak to an Engineer → Technical Resources →

Frequently Asked Questions

UAV Antenna Tracking System Integration & Deployment

A UAV antenna tracking system automatically orients a directional ground antenna toward the aircraft in real time. For BVLOS (Beyond Visual Line of Sight) missions, this is essential because omnidirectional antennas cannot maintain sufficient link margin at extended ranges. The ATS ensures continuous high-gain communication, enabling reliable command, telemetry, and video transmission up to 200 km. When paired with a high-performance UAV data link, the system delivers enterprise-grade connectivity for industrial and defense applications.
SoarApex ATS is designed with open architecture and standard interfaces (Ethernet, RS-422, SBUS). It integrates seamlessly with major UAV platforms and ground control station (GCS) software including QGroundControl, Mission Planner, and custom military-grade command systems. We provide SDKs, protocol documentation, and on-site integration support to ensure plug-and-play compatibility with your existing wireless data link infrastructure.
Single-target tracking uses a mechanically steered dish or panel antenna to follow one aircraft. Multi-target tracking leverages phased array or adaptive beam-forming technology to electronically steer multiple beams simultaneously, enabling simultaneous communication with several UAVs or relay nodes without mechanical latency. This is particularly valuable for swarm operations and custom integration projects requiring coordinated multi-UAV missions.
Yes. Our ATS includes a built-in RTK positioning module and IMU-based inertial navigation system that compensates for platform motion in real time. Whether mounted on a moving vehicle, marine vessel, or deployed alongside VTOL fixed-wing platforms, the system maintains lock and tracking accuracy under dynamic conditions. This mobility makes it ideal for powerline inspection and rapid-response missions.
We support L-band (1-2 GHz), 2.4 GHz ISM, and 5.8 GHz bands, with multi-band fusion options. L-band is optimal for ultra-long range and penetration through vegetation; 2.4 GHz offers a balance of range and data rate; 5.8 GHz provides high bandwidth for HD video. Our engineers will recommend the optimal configuration based on your mission profile, regulatory environment, and payload requirements. For specialized applications, explore our custom integration services.
Standard systems ship within 4–6 weeks. Custom OEM configurations may require 8–12 weeks. Deployment support includes pre-delivery system calibration, on-site installation supervision, integration testing, operator training, and 12-month technical support with optional extended warranty packages. For mission-critical deployments such as power grid inspection or border surveillance, we offer priority commissioning services.
