ATS Basic
Compact UAV Antenna Tracking System

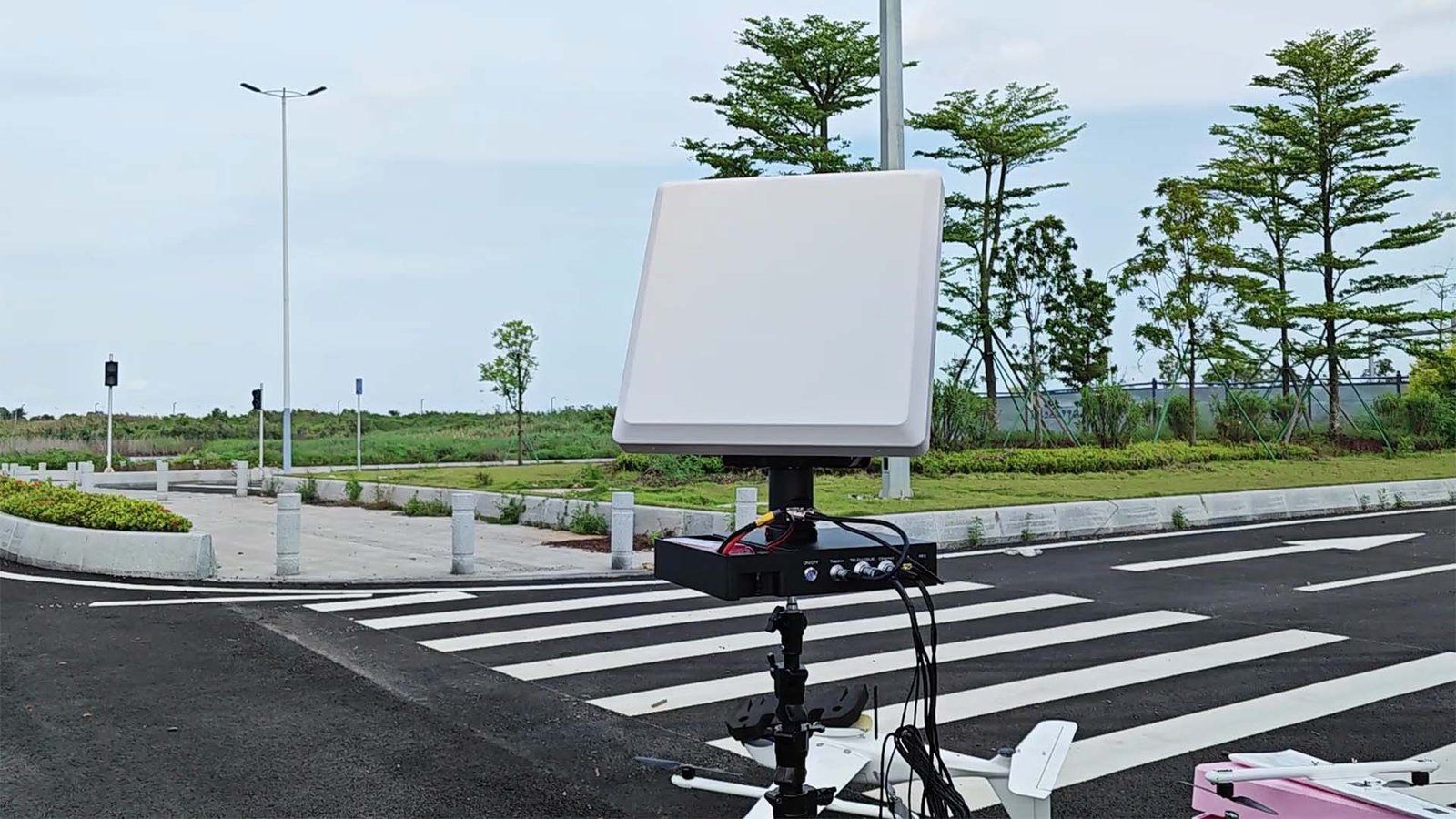

A practical entry-level solution for BVLOS operations. The long range UAV antenna tracking system – ATS Basic delivers reliable automatic directional tracking for small-to-medium drone fleets, ensuring stable video and telemetry links without the complexity of high-end gimbals.
Key Highlights
- Tracking Method Automatic 2-Axis
- Range Extension Up to 30km
- Protocol Support Mavlink / Custom
- Antenna Type Directional Patch
Technical Specifications
& System Performance
Comprehensive technical breakdown of the ATS Basic hardware, tracking algorithms, and connectivity features.
1. Tracking Performance

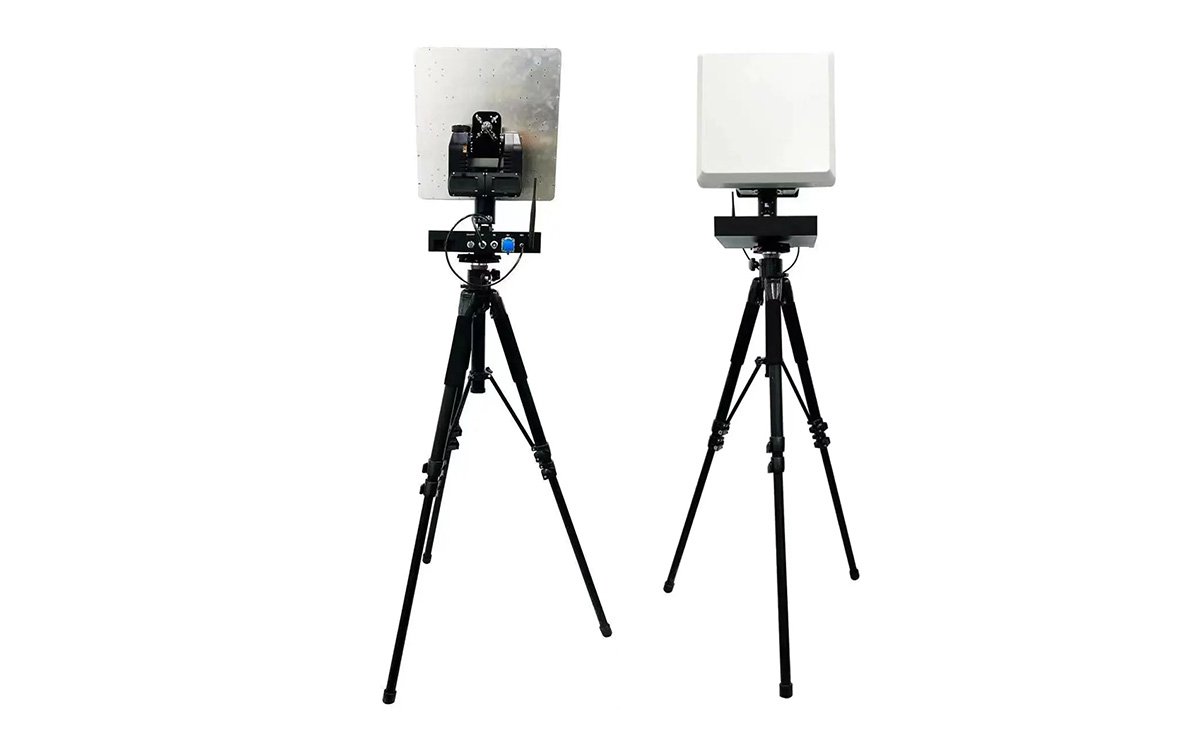

The ATS Basic utilizes a reliable 2-axis mechanical tracking system. By parsing real-time Navlink telemetry data, it calculates precise pointing vectors to keep the directional antenna locked onto the target drone, ensuring stable link quality during standard BVLOS operations.
- Tracking Method: Automatic 2-Axis (Azimuth & Elevation)
- Tracking Speed: Up to 30°/s
- Position Accuracy: ±1.5°
- Data Source: Real-time Mavlink telemetry (Lat/Lon/Alt)
2. Protocol & Data Handling
Designed for seamless integration with mainstream flight controllers, the long range UAV antenna tracking system natively supports the Mavlink protocol. Custom parsing solutions are available upon request for legacy or proprietary flight control systems.
- Standard Protocol: Mavlink (ArduPilot, PX4, Pixhawk compatible)
- Custom Protocol: Supported upon request
- Telemetry Output: TCP, UDP
- Video Output: TCP, UDP, RTSP
3. Low-Latency WiFi Distribution

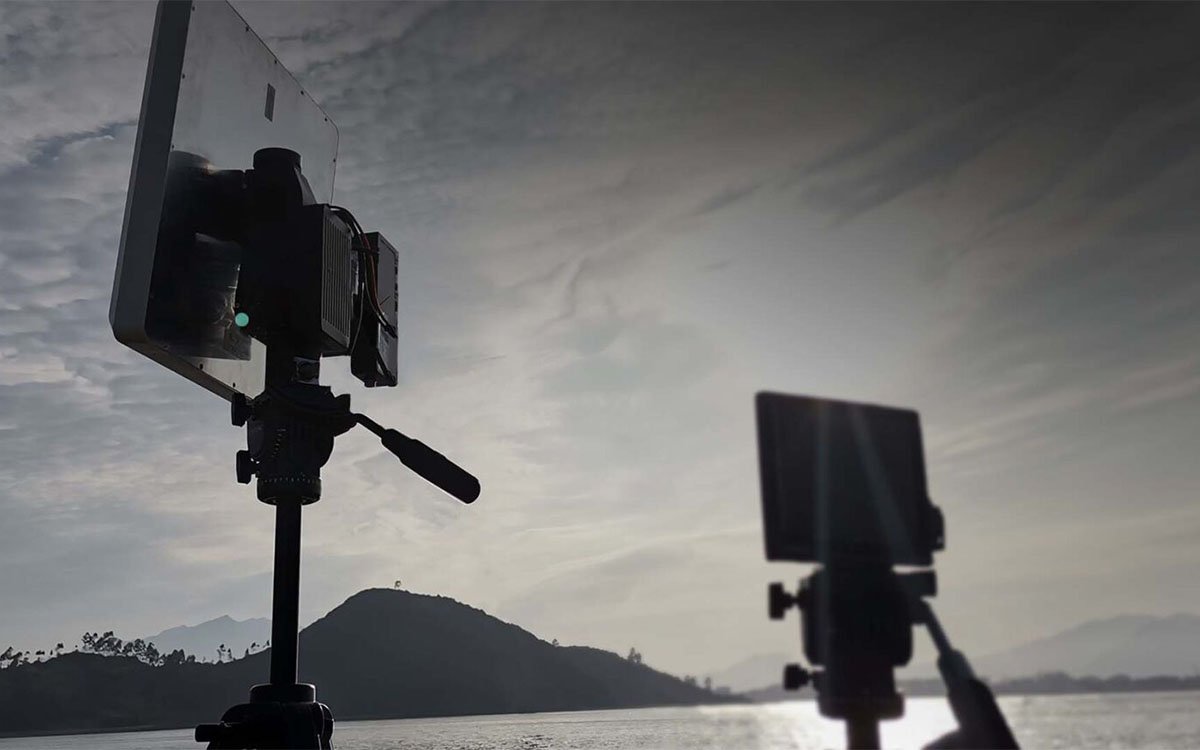

The integrated dual-band WiFi module transmits HD video and telemetry data to ground stations (laptops, tablets) without the need for additional external routers, simplifying field setup and reducing cable clutter.
- Frequency Bands: 2.4 GHz & 5.8 GHz
- Video Latency: Low-latency transmission
- Wired Backup: Standard Ethernet port for direct network access
- Client Support: Multiple ground station devices simultaneously
4. Antenna System

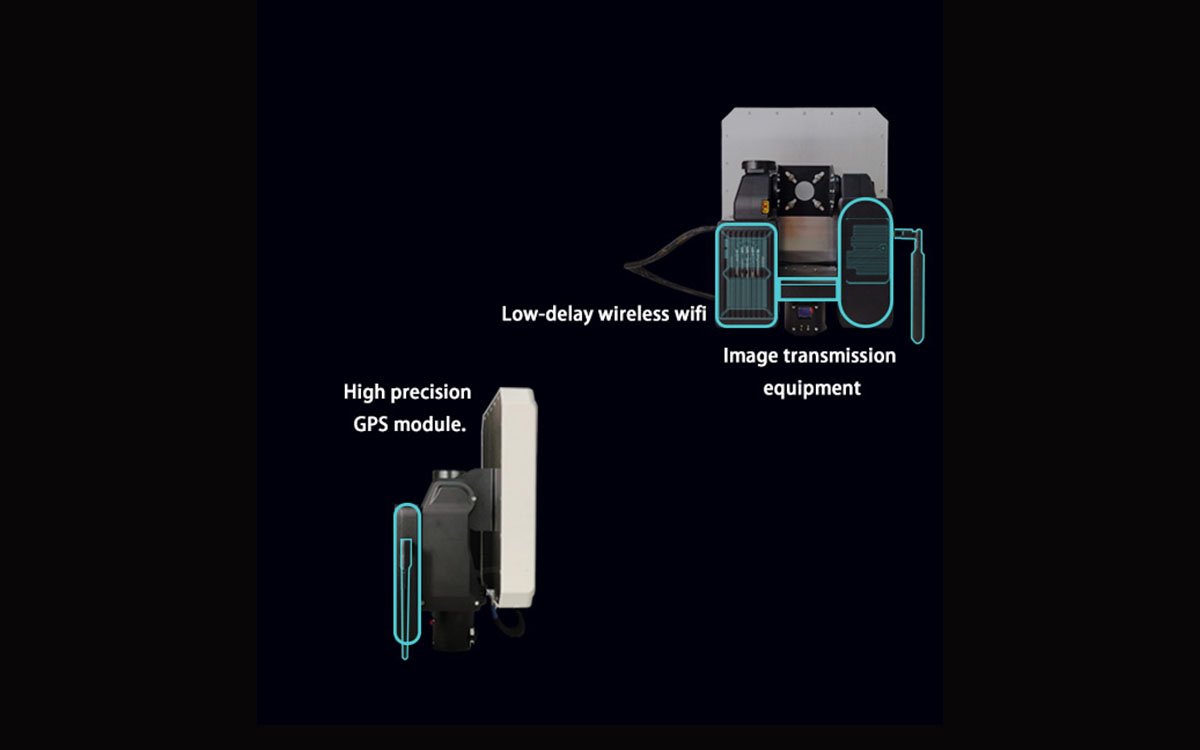

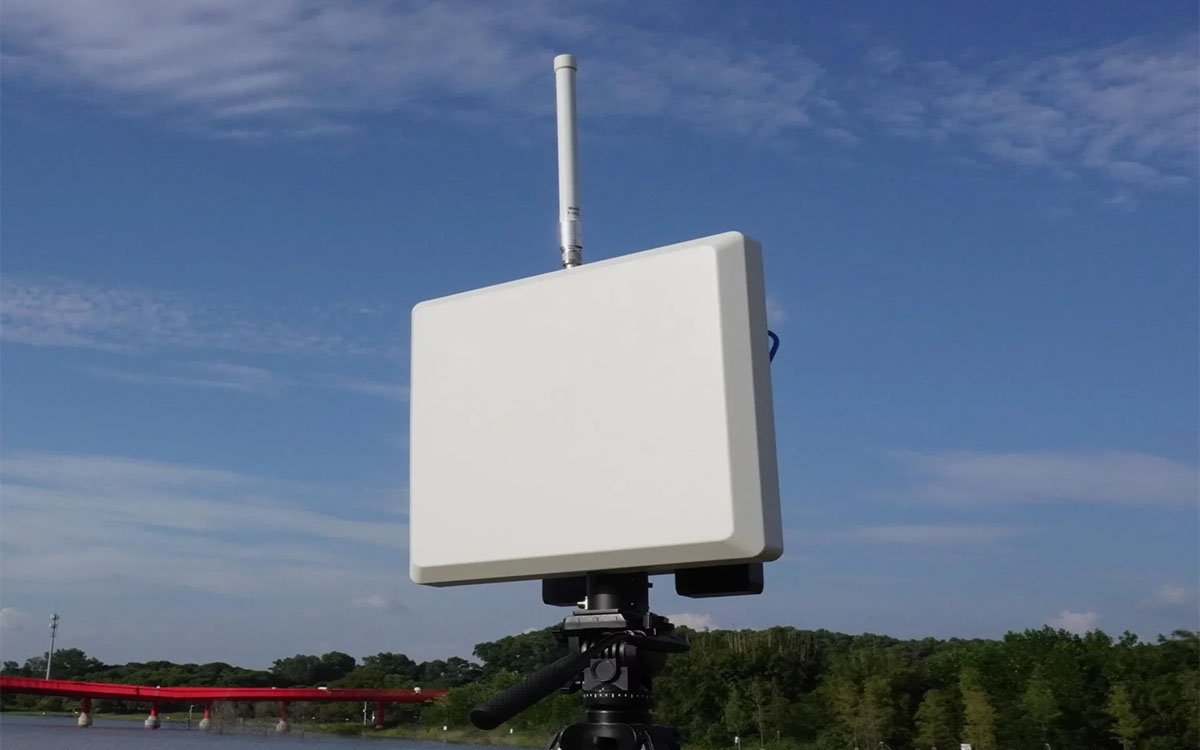

Equipped with a high-gain directional patch antenna, the ATS Basic significantly extends the communication range. The antenna’s frequency can be customized to match specific regional regulatory requirements.
- Antenna Type: High-Gain Directional Patch
- Frequency Customization: Available (subject to regional regulations)
- Gain: High-gain configuration for extended range
- Polarization: Linear / Circular options
5. Power & I/O Interfaces
The long range UAV antenna tracking system features a streamlined power management design and standard I/O ports for quick deployment. The SBUS forwarding capability extends remote control authority beyond conventional limits.
- UART1: Flight control telemetry input (Mavlink)
- Ethernet: Standard RJ45 network interface

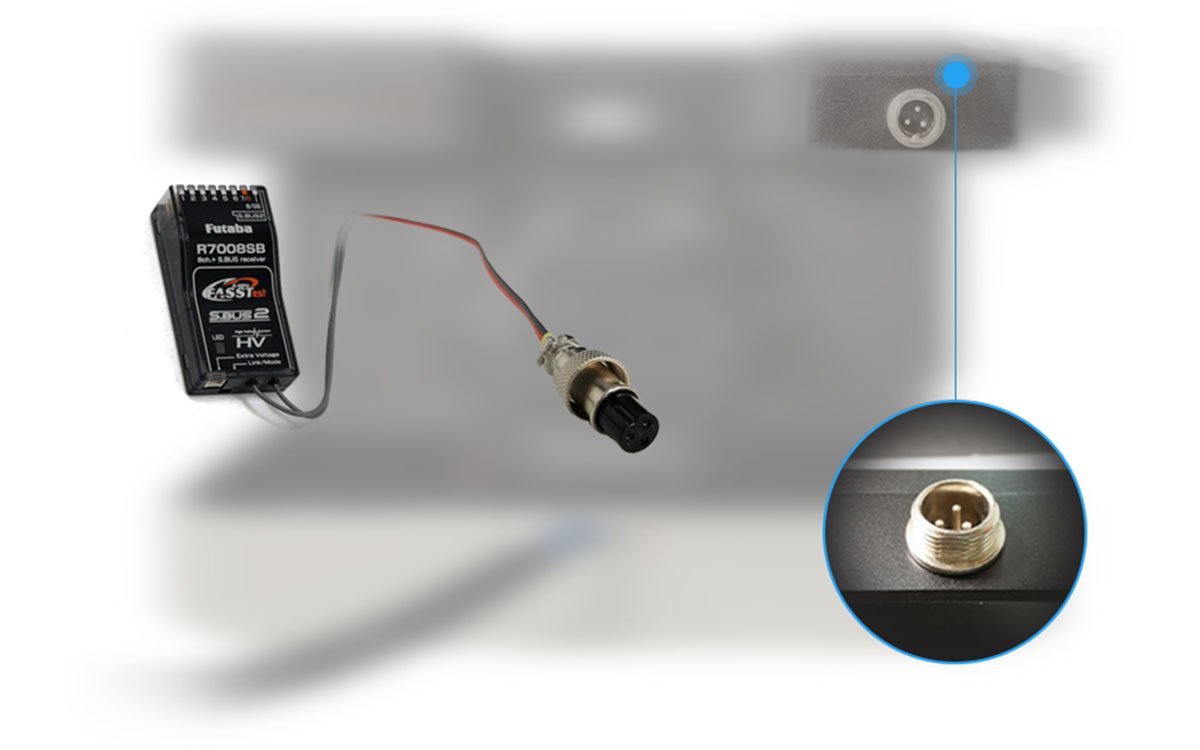

- SBUS: Remote control signal forwarding
- Power Input: Integrated power management
6. Physical & Environmental Specs

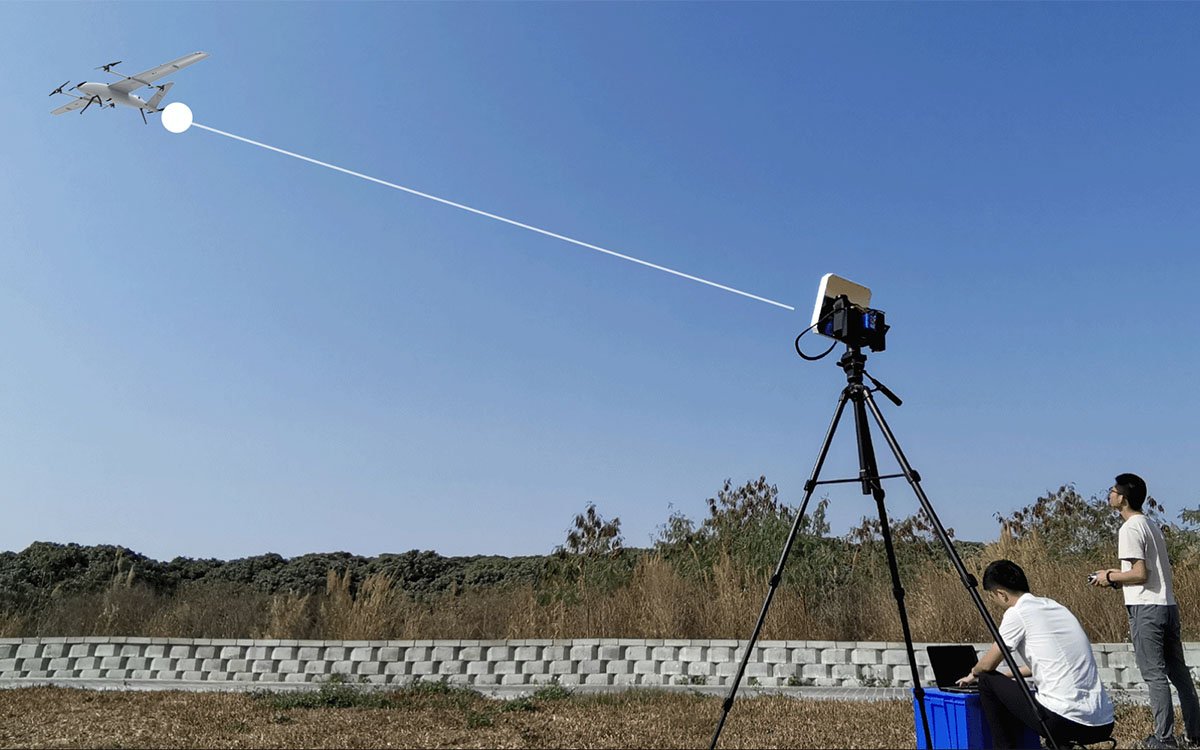

Built for field reliability, the compact chassis is designed for easy mounting on tripods, vehicles, or fixed stations. It operates effectively across a wide temperature range.
- Dimensions: Compact form factor (details available on request)
- Weight: Lightweight for portable deployment
- Operating Temperature: -20°C to +55°C
- Mounting: Tripod / Vehicle / Fixed station compatible
Real-World Applications
Where the Compact UAV Antenna Tracking System Performs

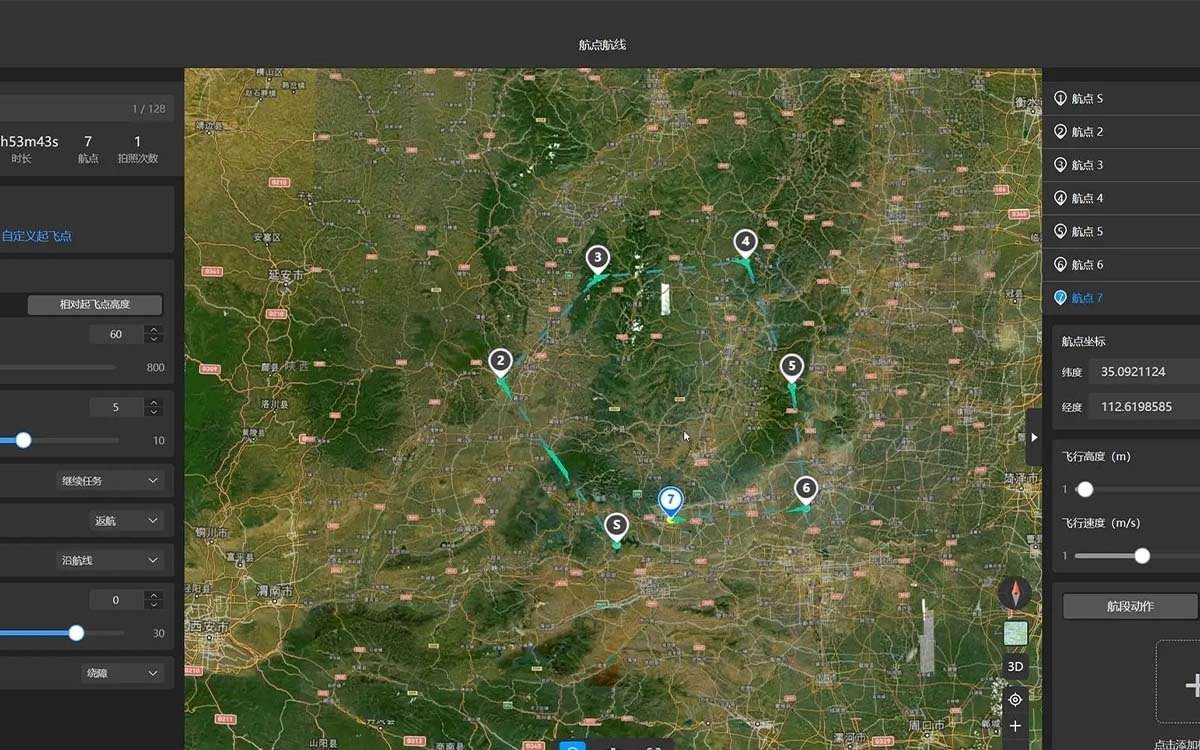

From critical infrastructure to remote wilderness, see how the ATS Basic delivers reliable BVLOS connectivity across diverse operational environments.
Why Choose the ATS Basic Over a DIY Build?
Building your own antenna tracker from separate modules seems cheaper — until you factor in integration time, compatibility risks, and field reliability. Here’s how the ATS Basic antenna tracking system compares.
Frequently Asked Questions
Everything you need to know about the ATS Basic antenna tracking system, from integration to field deployment.
Yes. While the ATS Basic antenna tracking system natively parses standard Mavlink telemetry, we understand that many industrial operators use proprietary or legacy flight control systems. SoarApex offers custom protocol parsing solutions upon request to ensure seamless integration with your existing fleet.
The long range UAV antenna tracking system features a built-in dual-band (2.4GHz / 5.8GHz) WiFi module. It broadcasts a local hotspot that ground station devices (laptops, tablets) can connect to directly. This eliminates the need for external routers or complex cabling, making field setup significantly faster.
Range is highly dependent on the specific antenna gain, frequency band, and environmental conditions (e.g., line-of-sight vs. urban obstacles). Under ideal BVLOS conditions with a high-gain directional antenna, the ATS Basic can extend communication links well beyond standard radio horizons.
Yes. The ATS Basic antenna tracking system supports antenna frequency customization to comply with different regional regulatory requirements. Please contact our engineering team with your specific frequency needs before placing an order.
Absolutely. The ATS Basic is designed as a critical range-extension component for the Maestro series HD image transmission system. When paired together, they form a productized, system-level solution for long-range video and telemetry.
The ATS Basic integrates an SBUS repeater module. By connecting the SBUS port of your remote control receiver to the long range UAV antenna tracking system, it can forward control signals through the high-gain directional antenna link, extending remote control authority beyond conventional limits.
