CCT S02 Portable Integrated UAV Control Station – Industrial Professional UAV/USV/UGV Long Range Missions Operation C2 System

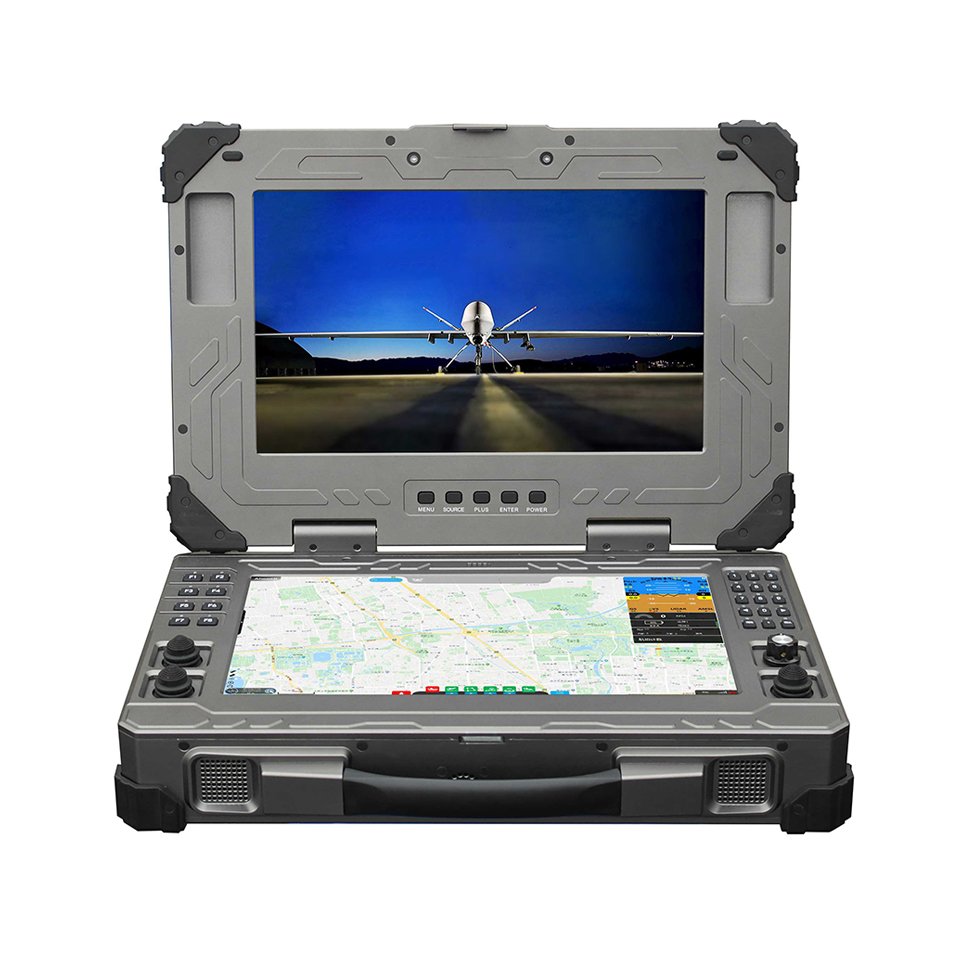

S02 Portable Integrated UAV Control Station Product Overview:
The SoarApex S02 Portable Integrated UAV Control Station is a next-generation portable UAV USV control station engineered for professional unmanned system operations. This industrial-grade integrated dual-screen ground control station achieves substantial upgrades in functional modular integration and operational efficiency compared to conventional equipment. Deeply integrating image transmission, data transmission, handheld remote control, image display, and industrial computing functions into a single 6.4-kilogram portable unit, the S02 serves as the central command node for Fixed-wing Platforms conducting extended-range missions, Multi-rotor Drones performing precision inspection, and FPV & Specialized Platforms operating in challenging field environments.
The aviation-grade aluminum alloy shell combines anti-drop and wear-resistant characteristics with lightweight advantages, providing structural integrity without imposing excessive transport burden. The full CNC machining process ensures precise component fit and consistent quality across production units. Eight anti-collision corners and silicone anti-slip grip surfaces enhance handling security during rapid deployment and recovery operations.
Key Features of S02 Portable Integrated UAV Control Station:

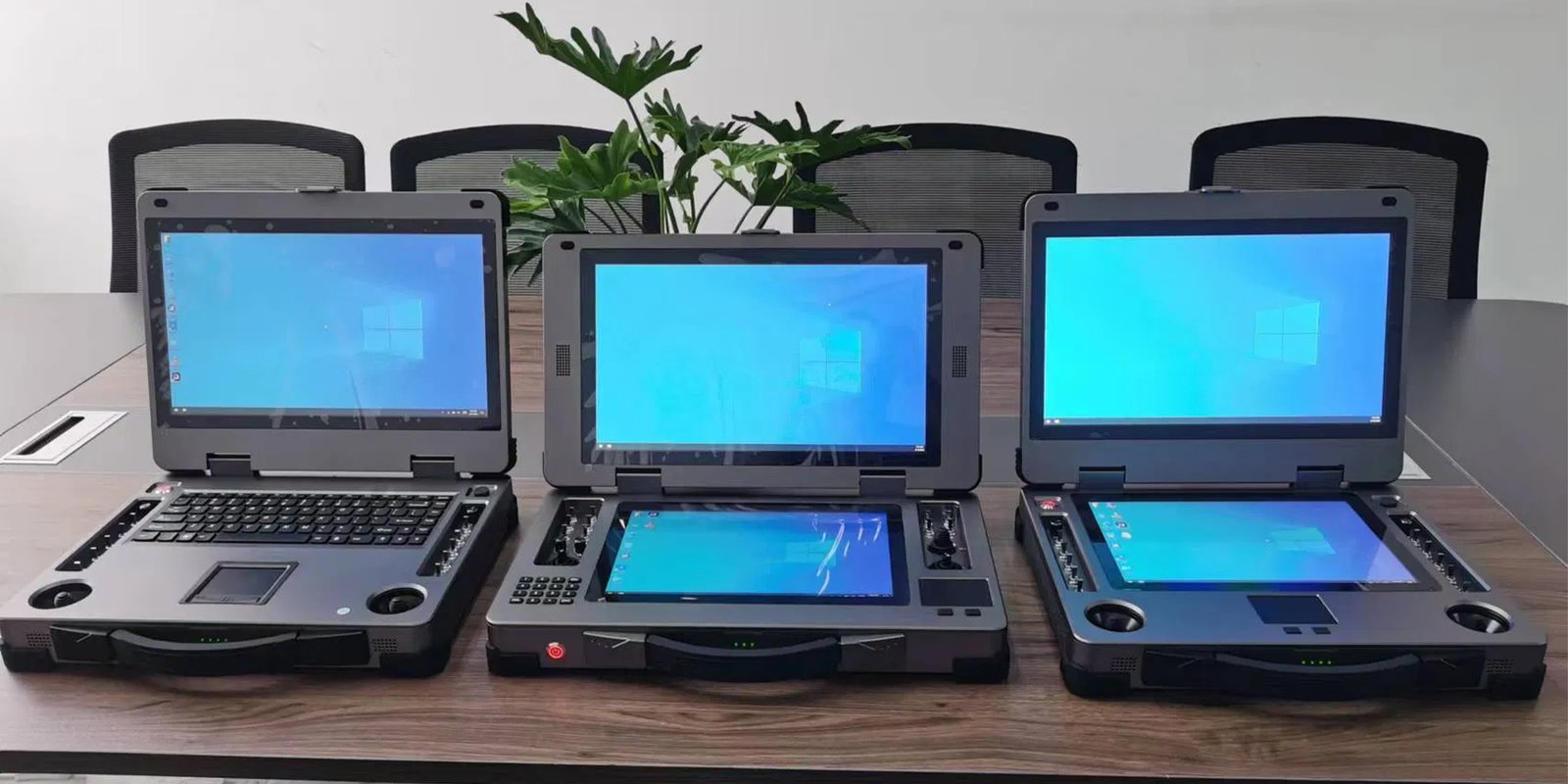

Dual High-Brightness Displays
The S02 Portable Integrated UAV Control Station integrates dual high-brightness displays comprising a 12-inch primary screen and a 15.6-inch secondary screen, both delivering 1000-nit outdoor-visible brightness with dual 10-point capacitive touch capability. This display configuration enables simultaneous presentation of primary flight instruments, moving map navigation, payload video feeds, and telemetry data streams without requiring window switching or display contention. The high-brightness LED backlighting ensures clear visibility in direct sunlight and changing ambient lighting conditions, essential for outdoor operations where conventional displays would suffer washout and readability degradation.

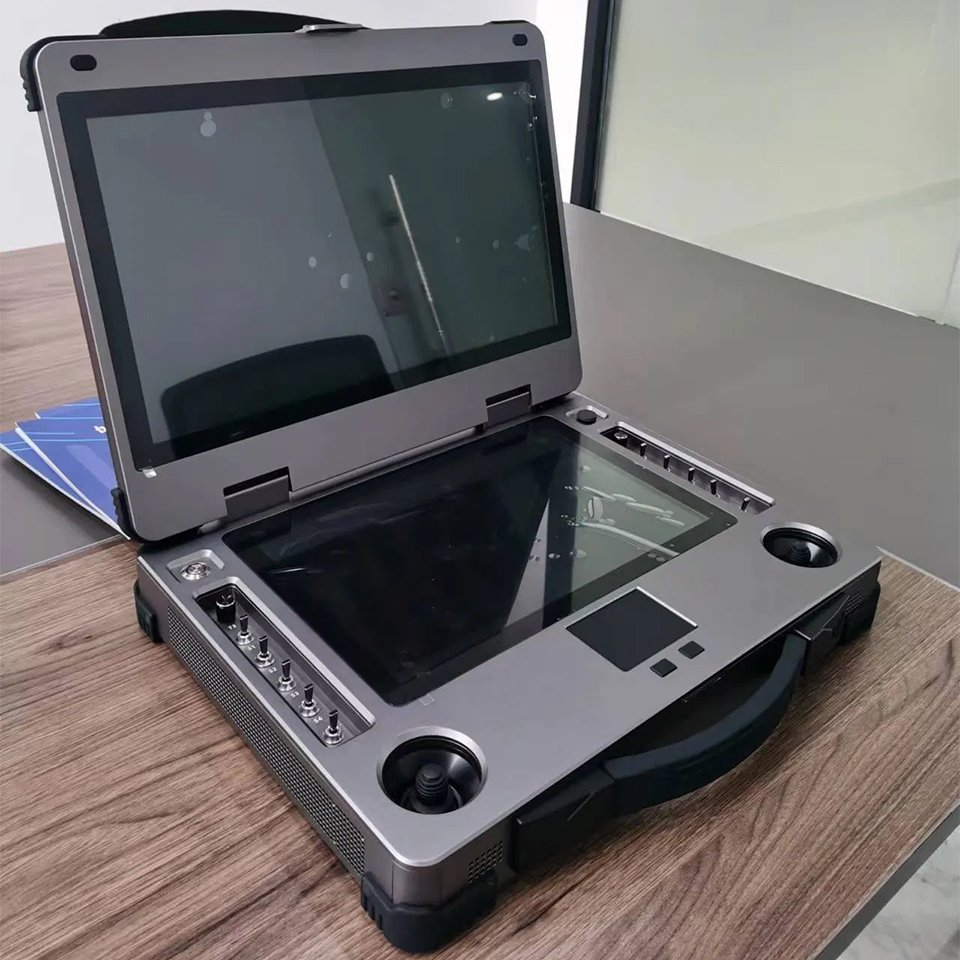

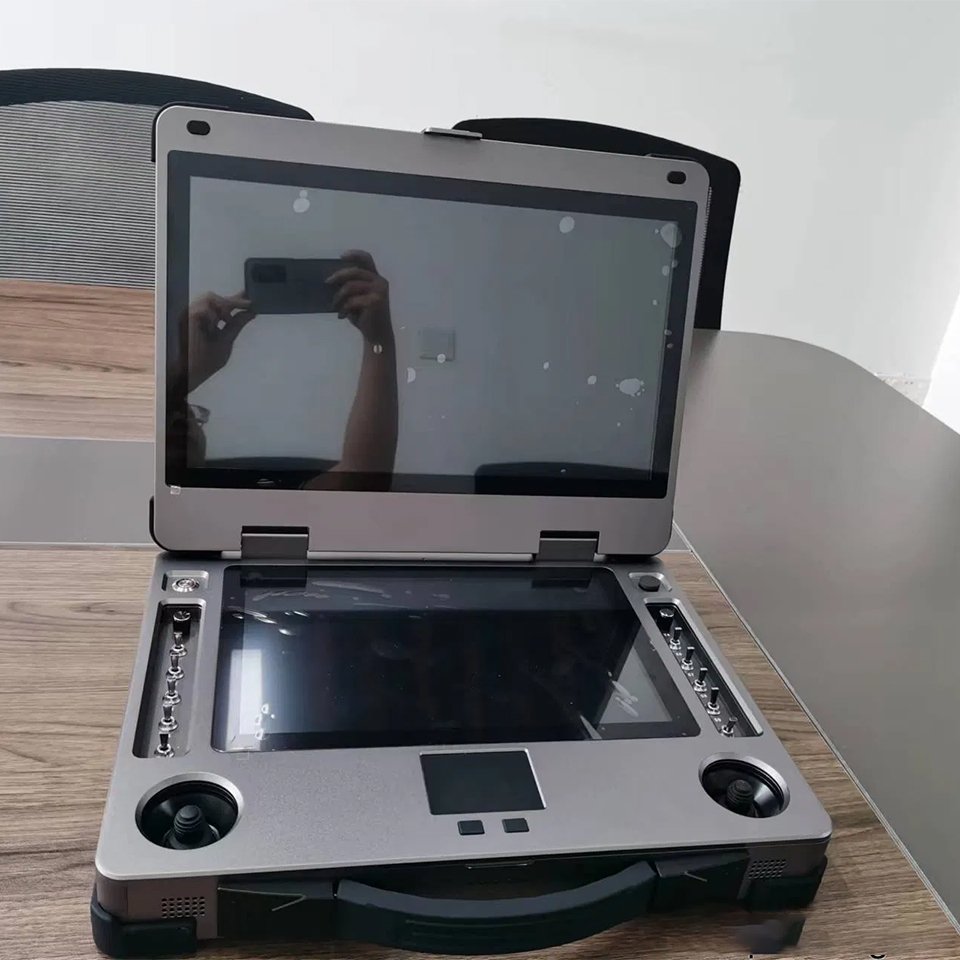

Rugged Industrial Design
The full CNC aluminum alloy shell construction provides exceptional structural rigidity and thermal conductivity while maintaining minimal mass. Eight integrated anti-collision corners protect vulnerable edges during transport and field handling, while the silicone anti-slip grip surfaces ensure secure handling in wet or gloved conditions. The industrial design philosophy prioritizes durability and reliability over cosmetic refinement, ensuring consistent performance across years of demanding operational service.
High-Performance Computing Platform
The computing core is based on the Intel i5-7200U processor, with optional upgrade to i7 configuration for demanding computational workloads. The platform supports optional RTX3060 independent graphics processing for real-time video decoding, image enhancement, and machine vision applications. This graphics capability enables advanced payload processing including thermal image analysis, photogrammetric reconstruction, and artificial intelligence-based object detection directly at the ground station without requiring external computing resources.
Eighteen-Channel Control Output
The S02 Portable Integrated UAV Control Station provides comprehensive control output through dual SBUS and USB-HID protocols, supporting 18 independent control channels. The physical control surface includes four joystick sets and programmable polymorphic switches, enabling precise manipulation of complex unmanned systems with multiple degrees of freedom. The dual SBUS output supports simultaneous connection to primary flight controllers and secondary payload controllers, while USB-HID enables direct integration with simulation software and ground control applications.
Extended Battery Endurance
The integrated 16.8-volt 20 ampere-hour battery system provides five to six hours of continuous operation, supporting extended mission durations without requiring external power. This endurance envelope accommodates typical survey missions, search operations, and inspection sorties without interruption, while the high-capacity battery supports the dual high-brightness displays and high-performance computing platform without performance compromise.
Wide Temperature Operation
The S02 Portable Integrated UAV Control Station maintains reliable performance across an operating temperature range from negative 20 degrees Celsius to 60 degrees Celsius. This wide thermal envelope supports deployment in desert environments with extreme daytime heat, arctic conditions with sub-zero temperatures, and tropical zones with high humidity and solar loading. The aluminum alloy construction provides effective thermal spreading, while the internal thermal management system ensures component temperatures remain within safe operating limits across the full environmental range.
Universal Compatibility
The S02 Portable Integrated UAV Control Station supports most data links and third-party devices available on the market, ensuring seamless integration with existing unmanned system fleets. The rich interface complement and standard protocol support eliminate proprietary lock-in, enabling operators to select best-in-class components for each mission requirement while maintaining a consistent ground control interface.
S02 Portable Integrated UAV Control Station System Architecture
Functional Modular Integration
The S02 Portable Integrated UAV Control Station achieves deep integration of traditionally discrete ground station functions into a unified portable platform. Image transmission decoding, data link management, handheld remote control generation, video display rendering, and industrial computing processing are consolidated within a single chassis with shared power distribution and thermal management. This integration eliminates cable interconnects, reduces setup time, and improves overall system reliability by minimizing potential failure points.
The dual-screen architecture provides dedicated display real estate for simultaneous information presentation. The 12-inch display typically serves as the primary flight instrument panel, presenting attitude, altitude, velocity, and navigation data, while the 15.6-inch display presents payload video, moving map, or mission planning information. This separation reduces cognitive load and improves situational awareness during complex operations.
Rich Interface Configuration
The S02 Portable Integrated UAV Control Station provides comprehensive connectivity for diverse peripheral devices and external systems. The HDMI output supports multi-screen monitoring for enhanced situational awareness, enabling connection to external briefing displays or recording devices. USB 3.0 ports enable fast data backup and transmission, preventing mission data loss through rapid offload to external storage. RS232 and Ethernet interfaces allow precise integration with external sensors, custom equipment, and networked command systems.
The multi-scenario implementation capability ensures that whether expanding views through HDMI, exporting data via USB, or networking with other systems through Ethernet, the S02 adapts to diverse connection requirements across various operational scenarios. This flexibility is essential for UAV Industrial Solution deployments where mission requirements evolve rapidly and system reconfiguration must occur without equipment substitution.
Dual-Vehicle Control Capability
One Control Station, Two Vehicles
The S02 Portable Integrated UAV Control Station supports advanced one-control-two-machines mode, enabling a single operator to simultaneously access and independently control two vehicles, such as an unmanned aerial vehicle and an unmanned surface vehicle. This dual-vehicle capability supports individual task execution where separate vehicles conduct regional patrols and fixed-point monitoring, as well as coordinated operations including formation flying and relay surveying through collaborative instruction sequences.
The operational value of this mode includes improved individual operation efficiency and optimized team equipment control workflows. Rather than deploying separate operators and ground stations for each asset, a single S02 Portable Integrated UAV Control Station operator can manage multiple vehicles, reducing personnel requirements and improving coordination consistency. This capability provides solid support for multi-vehicle collaborative scenarios increasingly common in commercial and government operations.
S02 Portable Integrated UAV Control Station Technical Specifications
Physical Characteristics:
- – Model: XK-G22
- – Material: CNC aluminum alloy
- – Protection: 8 anti-collision corners, silicone anti-slip grip
- – Color Options: Black, Silver, Dark Green
- – Dimensions: 416mm by 330mm by 82mm
- – Weight: 6.4 kilograms
- – Operating Temperature: Negative 20 degrees Celsius to 60 degrees Celsius
Computing Platform:
- – CPU: Intel i5-7200U (optional i7)
- – Graphics: Intel HD 620 (optional GTX1050Ti/RTX3060)
- – Memory: 8GB RAM (optional expansion)
- – Storage: 256GB SSD (optional expansion)
- – Operating System: Windows 10 or Linux
- – Input: Touch pad with multi-function numeric keypad
Network and Connectivity:
- – Network: Dual Gigabit Ethernet, 2.4GHz/5.8GHz WiFi, Bluetooth 4.0
- – External Interfaces: 2 by USB 3.0, 1 by LAN, 1 by HDMI, 2 by SMA-KF
- – Internal Interfaces: 6 by RS232, 2 by USB, 1 by RJ45
- – Internal Power Supply: 12V 3A
Display System:
- – Primary Display: 12-inch high-brightness screen
- – Secondary Display: 15.6-inch high-brightness screen
- – Brightness: 1000-nit outdoor-visible
- – Touch: Dual 10-point capacitive touch
Control Interface:
- – Remote Control Output: 18 channels, dual SBUS, USB-HID
- – Physical Channels: 2 by flight joystick, 1 by thumb joystick, 8 by 3-position switch, 2 by 2-position paddle, 2 by knob (optional)
Battery and Power:
- – Battery: 16.8V 20AH
- – Operating Time: 5-6 hours
Expansion Options:
- – Reserved Space: 175mm by 130mm by 41mm for custom module installation

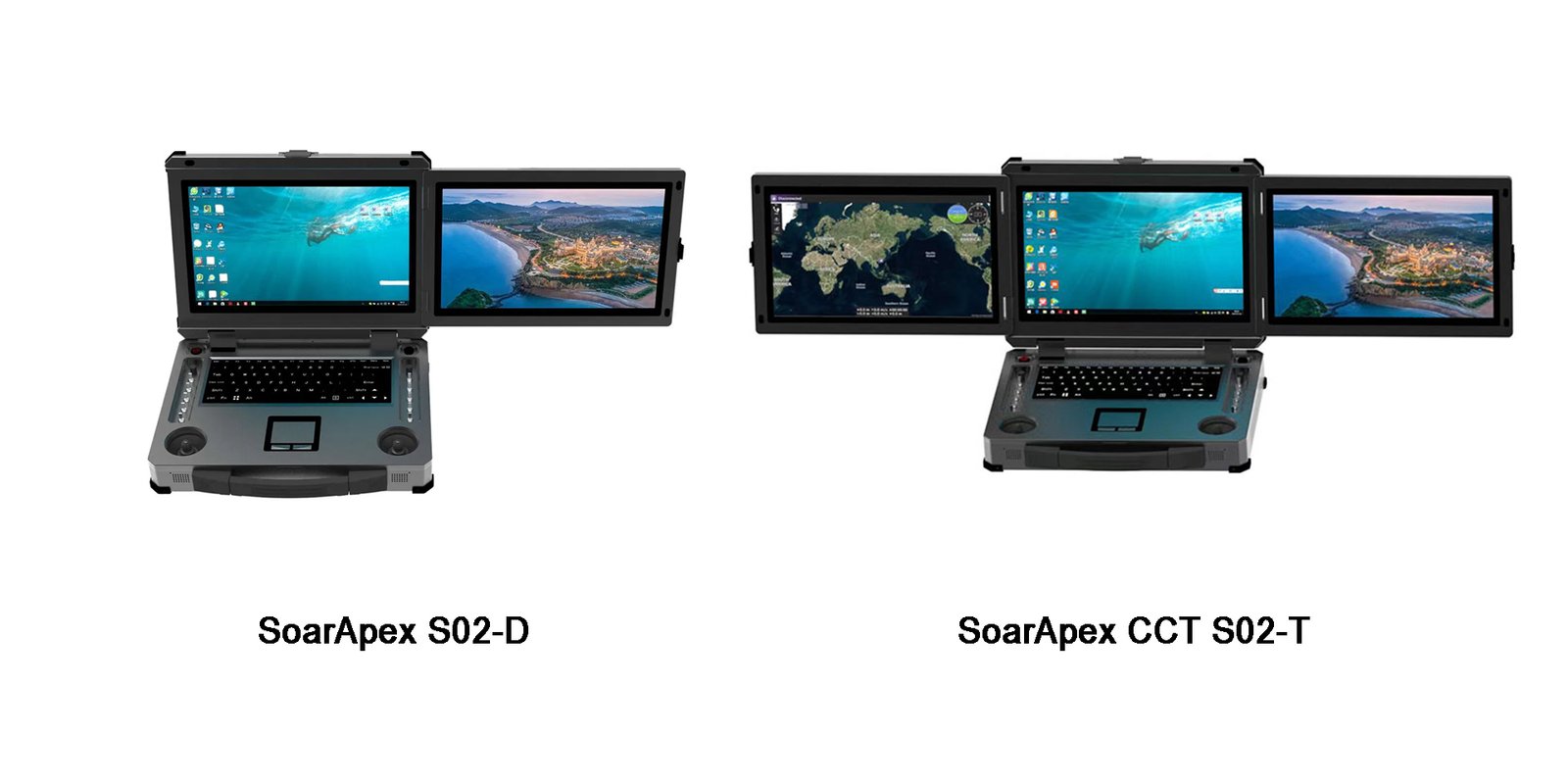

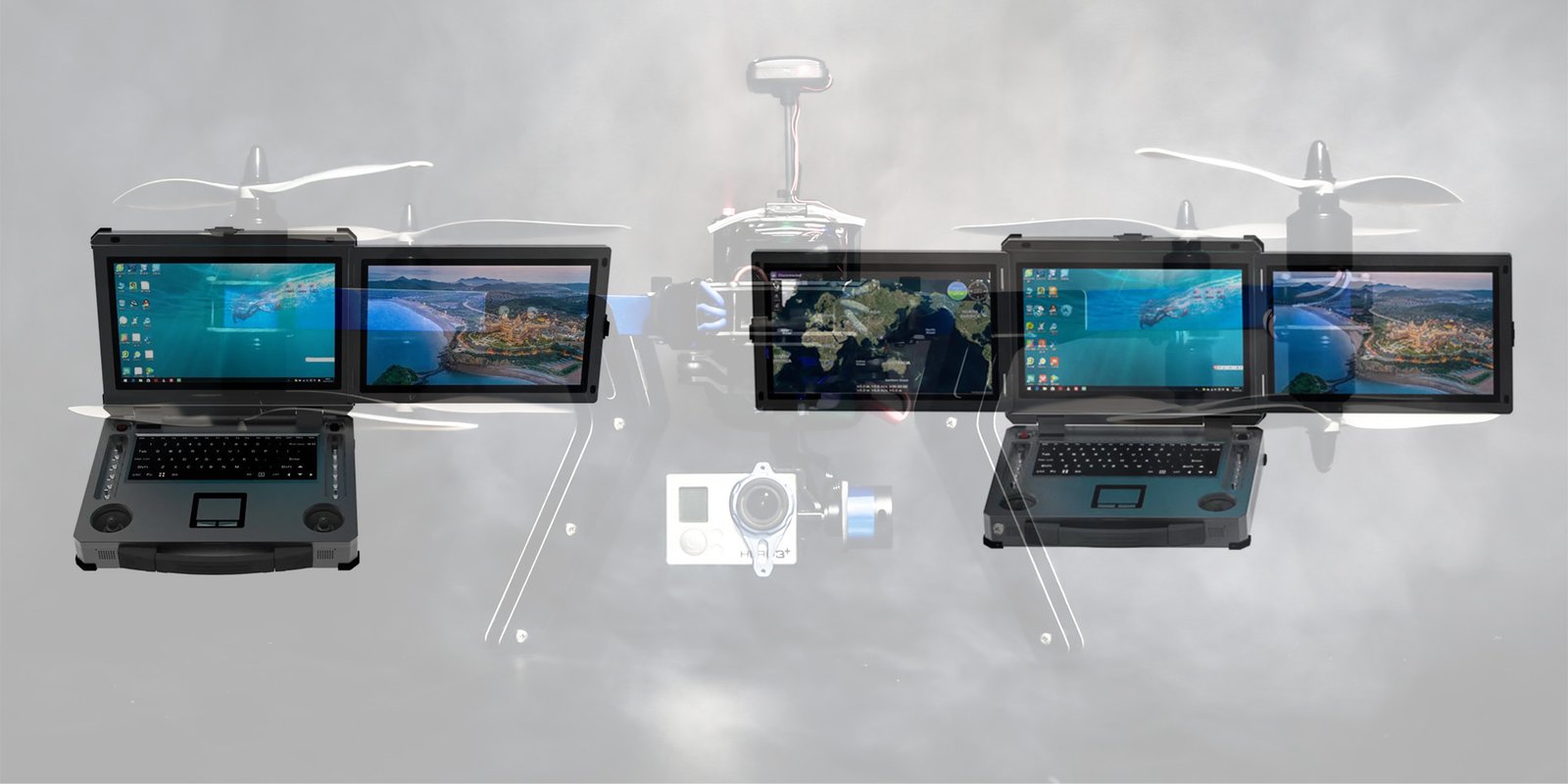

S02 Portable Integrated UAV Control Station Expansion Configurations
The S02 Portable Integrated UAV Control Station series includes expansion configurations with 2-screen and 3-screen variants to meet diverse mission requirements. The multi-screen configurations provide additional display real estate for complex operations requiring simultaneous monitoring of multiple video feeds, telemetry streams, and mission planning data. Contact our engineering team for detailed specifications and customization options tailored to specific operational requirements.
S02 Portable Integrated UAV Control Station Application Scenarios
Industrial Infrastructure Inspection
The S02 Portable Integrated UAV Control Station provides comprehensive ground control for power line inspection, pipeline monitoring, and telecommunications tower assessment. The dual high-brightness displays enable simultaneous presentation of aircraft telemetry and high-definition payload video, while the precision joysticks support fine control during close-proximity inspection maneuvers. The extended battery endurance supports full-day survey operations without requiring external power access.
Maritime and Coastal Operations
For unmanned surface vehicle operations and coastal unmanned aerial vehicle missions, the S02 provides reliable control across marine environments with high humidity and salt spray exposure. The aluminum alloy construction resists corrosion, while the wide temperature range supports operations from tropical littorals to arctic offshore zones. The dual-vehicle capability enables coordinated USV-UAV operations for search and rescue, environmental monitoring, and port security.
Emergency Response and Disaster Assessment
The S02 Portable Integrated UAV Control Station deploys rapidly to disaster zones for search and rescue coordination, fire monitoring, and emergency communication relay. The ruggedized construction withstands rough handling during rapid deployment, while the five to six-hour battery endurance supports extended operations in areas without grid power access. The UAV Data Link integration ensures reliable communication in challenging terrain and urban environments.
Surveillance and Security Operations
Dual high-brightness displays enable continuous monitoring of multiple video feeds for border patrol, facility security, and law enforcement operations. The automatic brightness regulation ensures visibility across dawn, daylight, dusk, and night conditions without operator adjustment. The SBUS output supports direct connection to pan-tilt-zoom camera controllers for real-time payload management.
Scientific Research and Environmental Monitoring
The S02 Portable Integrated UAV Control Station supports extended-duration research missions requiring continuous data logging and real-time analysis. The high-performance computing platform with optional RTX3060 graphics enables onboard processing of multispectral imagery, thermal data, and LiDAR point clouds, reducing post-mission processing time and enabling adaptive mission planning based on preliminary results.
Regulatory Compliance
For unmanned aerial vehicle ground control operations, operators should refer to FAA Part 107 guidelines for commercial UAS operations and ITU-R recommendations for radio frequency spectrum allocation to ensure frequency usage compliance. Local regulations may require specific certifications or operational authorizations for beyond-visual-line-of-sight missions utilizing high-gain antenna systems. The S02 BVLOS Antenna Tracking System integration requires appropriate regulatory filings in many jurisdictions.
Related Products
For enhanced antenna tracking, the Automatic Antenna Tracking System provides automatic beam steering that maximizes link margin throughout dynamic flight profiles. For long-range communication, the UAV Data Link Systems offer extended-range radio solutions compatible with the S02 interface architecture. For extended field power, the Industrial UAV Outdoor Power Station provides high-capacity energy storage for multi-day deployments.
Frequently Asked Questions
What is the S02 Portable Integrated UAV Control Station used for?
The S02 is an industrial-grade portable ground control station for real-time control of unmanned aerial vehicles, unmanned surface vehicles, and robotic systems. It integrates flight control, telemetry, video display, and data link management in a single ruggedized unit.
Does the S02 support dual-vehicle operation?
Yes, the S02 Portable Integrated UAV Control Station supports one-control-two-machines mode, allowing a single operator to simultaneously control two vehicles for coordinated missions such as formation flying and relay operations.
What is the battery life of the S02?
The standard 16.8-volt 20 ampere-hour battery provides five to six hours of continuous operation. Extended battery options are available for longer missions.
Can the S02 Portable Integrated UAV Control Station operate in extreme temperatures?
Yes, the S02 is rated for negative 20 degrees Celsius to 60 degrees Celsius operation, making it suitable for desert, arctic, and maritime environments.
Is the S02 compatible with third-party data links?
Yes, the S02 supports most market-available data links and features reserved internal space of 175 millimeters by 130 millimeters by 41 millimeters for custom module installation.
For custom configurations, bulk pricing, and integration support, please contact our engineering team.
