VTOL Fixed Wing Platforms
Integrated UAV Systems for Long-Range BVLOS Operations
SoarApex designs and delivers integrated VTOL fixed wing platforms system built around proven airframes and our own communication and control infrastructure. Each system ships as a mission-ready package: aircraft, antenna tracking, data link, and ground station – pre-validated, pre-configured, and supported by a single vendor.
No multi-vendor integration. No compatibility testing. Deploy in days.
Why Integrated Systems Matter
Single-vendor accountability from airframe to ground control
Pre-Integrated Architecture
Airframe, avionics, payload, data link, antenna tracking, and ground station delivered as a single validated system. Zero compatibility testing required.
200km+ BVLOS Communication
SATS Pro auto-tracking directional antenna maintains lock through maneuvering. SDL Series data link ensures <50ms latency with AES-256 encryption.
Deploy in Days, Not Months
No multi-vendor integration cycles. No custom engineering. Unpack, align, and fly.
Single-Vendor Accountability
One point of contact for system design, deployment support, and warranty. Full lifecycle coverage from SoarApex.
Mission-Tailored Configurations
Seven VTOL models optimized for surveying, powerline inspection, pipeline monitoring, emergency mapping, fire prevention, cargo transport, and meteorological operations.
VTOL Fixed Wing Platforms Lineup
Fixed-wing efficiency with multi-rotor flexibility. SoarApex VTOL systems combine vertical take-off and landing capability with long-endurance cruise flight – no runway required, no payload compromise.
SoarApex eV3
The eV3 is optimized for rapid deployment and precision missions in confined or remote environments. Its compact airframe packs into a single ruggedized case, enabling transport by standard vehicle or field backpack. Transition from vertical hover to fixed-wing cruise is fully autonomous, requiring no pilot intervention.
- Airframe: VTOL configuration, 2.4m wingspan, 75min endurance, IP54-rated
- Payload Capacity: 1.5kg standard – compatible with 24MP mapping cameras, multispectral sensors, and lightweight EO gimbals
- Integrated Data Link: SDL MK22 pre-installed – 22km HD video & telemetry, AES-256 encryption
- Best For: Aerial surveying, corridor mapping, precision agriculture, emergency rapid assessment

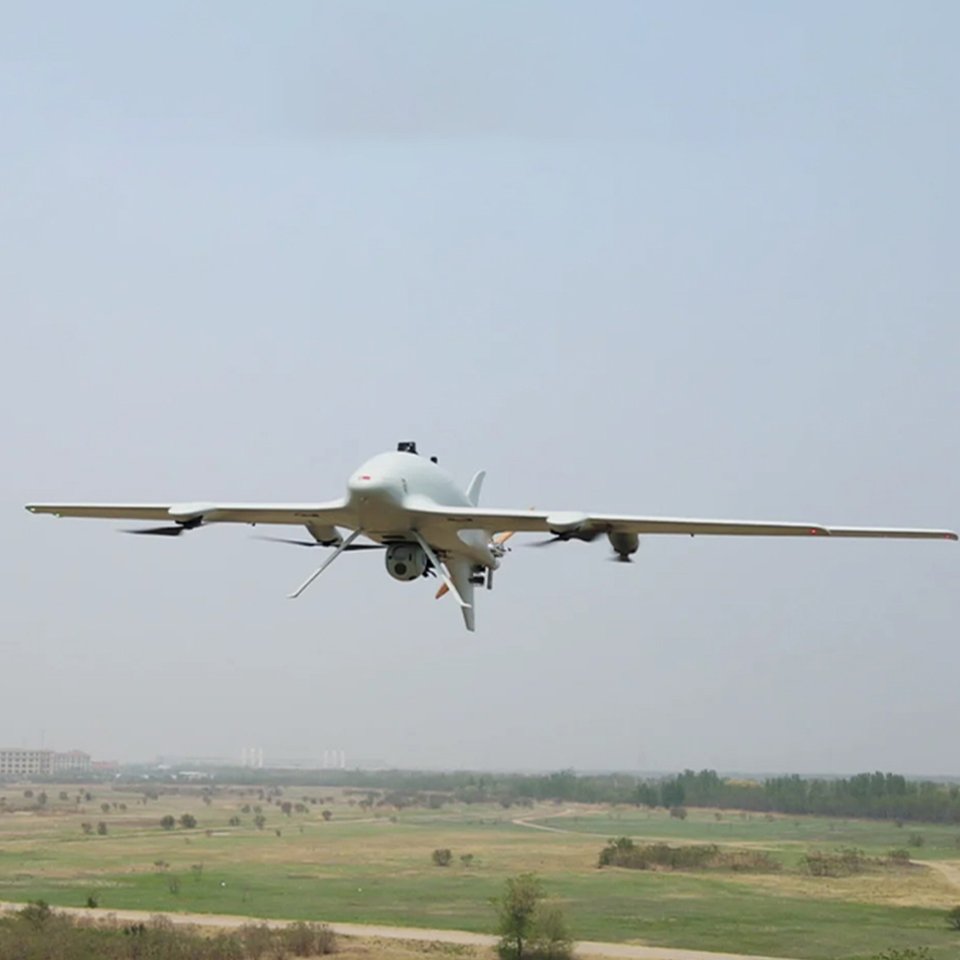

SoarApex eV5
The eV5 is engineered for large-area operations requiring extended endurance and heavy sensor payloads. Its high-aspect-ratio wing and efficient cruise propulsion deliver mission durations previously achievable only by manned aircraft, while VTOL capability eliminates runway dependency in forward-operating or remote sites.
- Airframe: VTOL configuration, 3.5m wingspan, 150min endurance, IP54-rated, Beaufort Force 6 wind resistance
- Payload Capacity: Up to 5kg – heavy-lift LiDAR, dual-sensor EO/IR gimbals, or hyperspectral imaging systems
- Integrated Data Link: SDL MK55 pre-installed – 55km range, BVLOS-capable, mesh networking option
- Best For: Large-scale surveying, border patrol, infrastructure monitoring, long-range logistics, maritime search
Build Your Integrated System
Every SoarApex VTOL fixed wing platforms are designed as the open-architecture node. Pair your selected airframe with our proven ground and communication systems to create a mission-validated, single-vendor integrated solution.
LAYER 1: AIRFRAME
VTOL Fixed Wing Platform (VTOL-S1 or VTOL-P2)
- VTOL fixed wing platforms take-off and landing + cruise
- Modular payload bay: EO/IR, Thermal, Multi-spectral, LiDAR

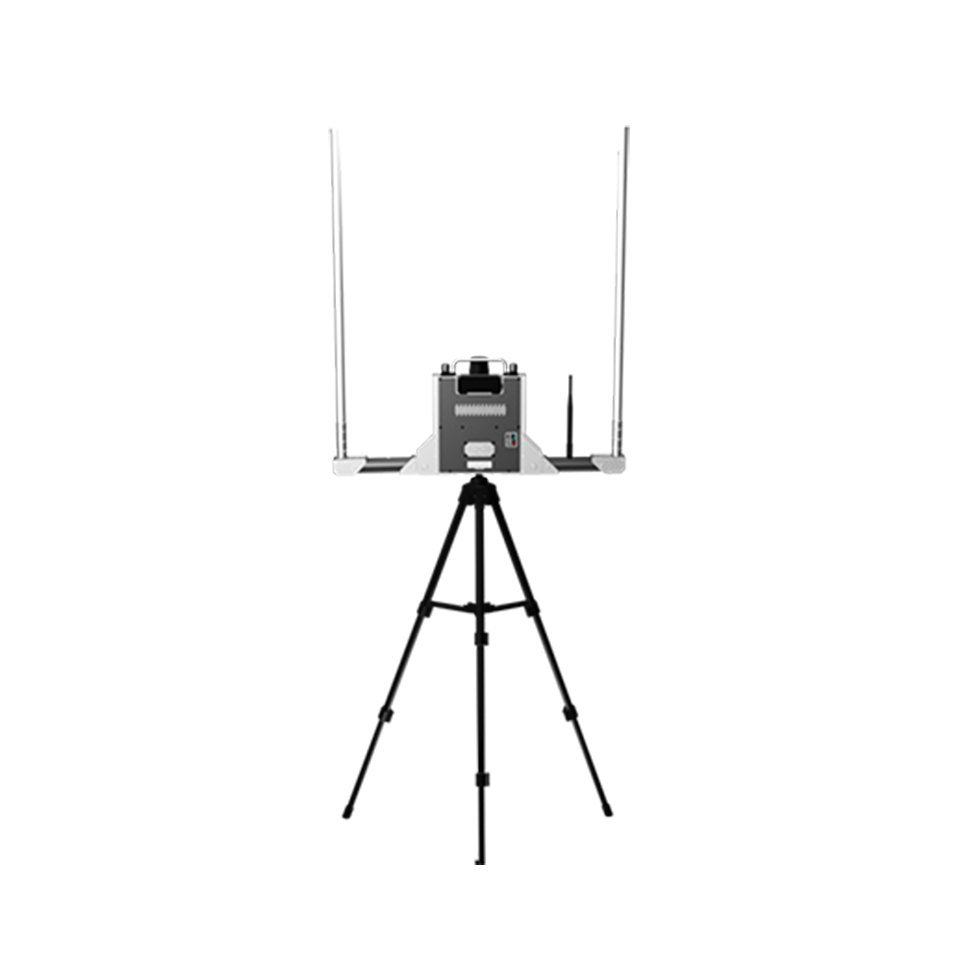

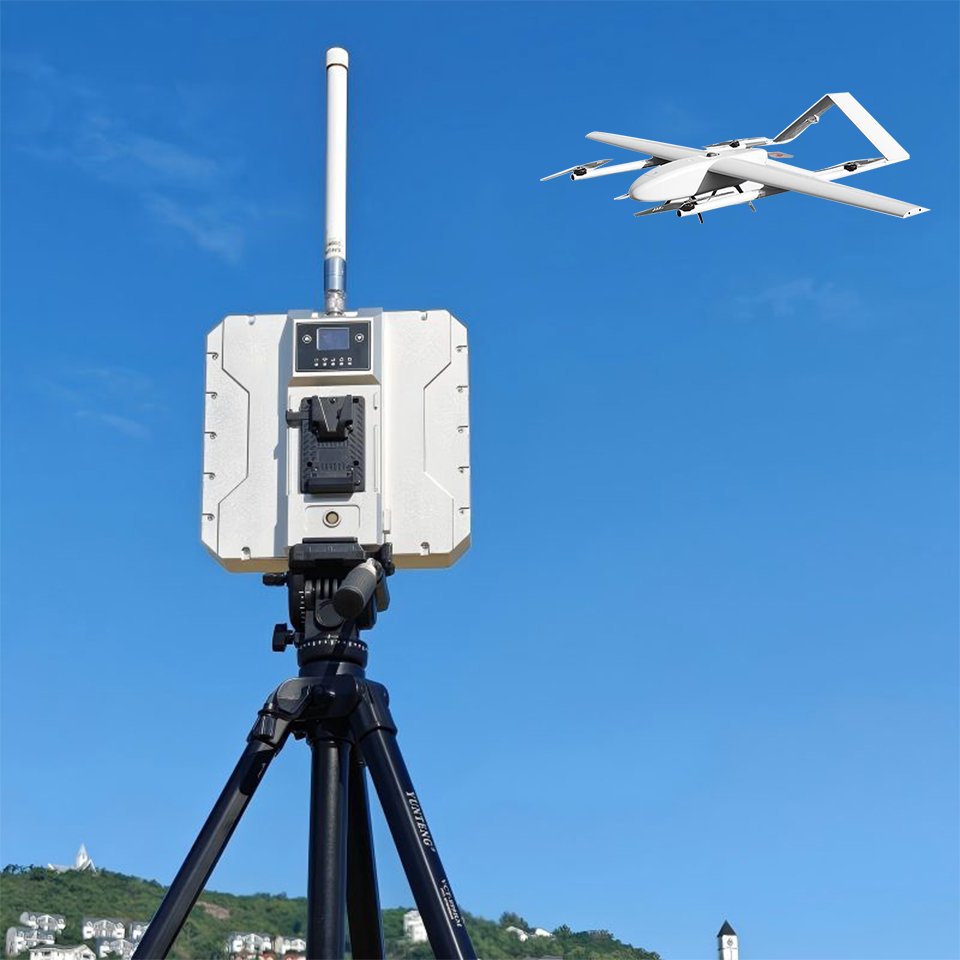

LAYER 2: DATA LINK
SDL Series Data Link System
- Command uplink + HD video downlink
- Dual-band transmission
- <50ms latency | AES-256 encryption
- Range-matched to mission requirements

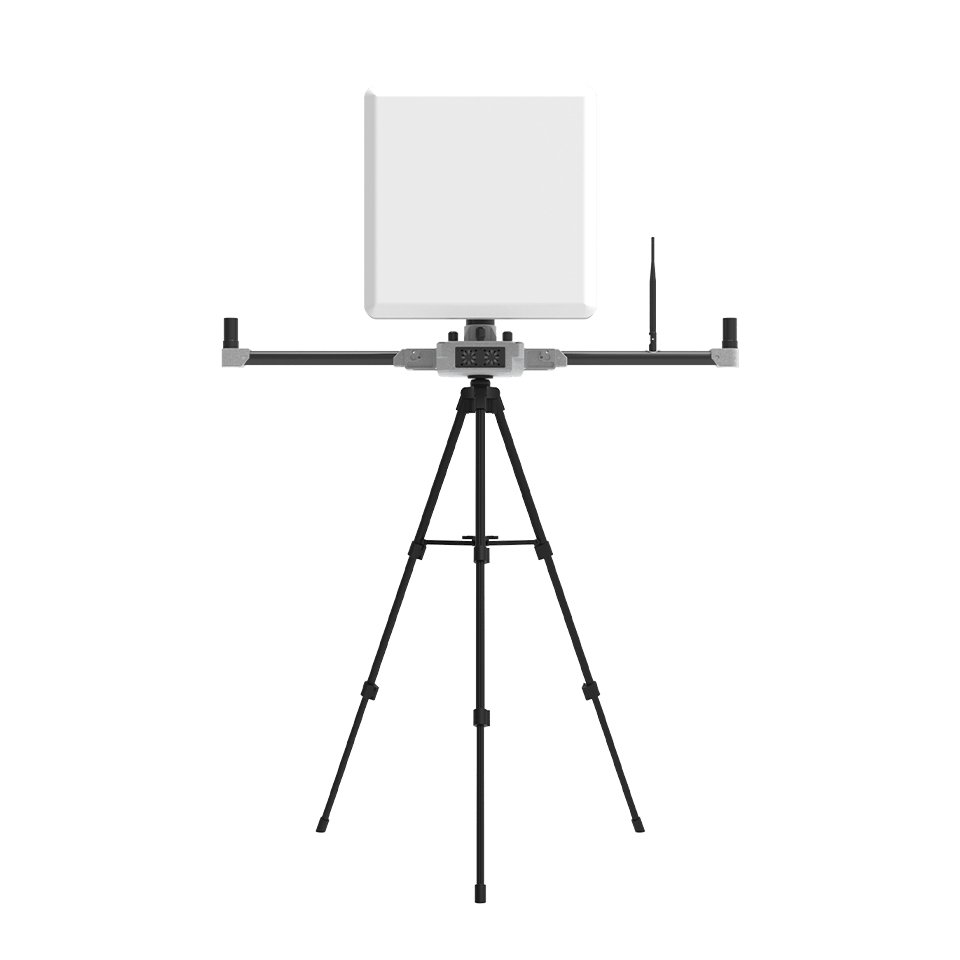

LAYER 3: ANTENNA TRACKING
SATS Pro Antenna Tracking System
- Auto-tracking directional antenna
- 200km+ BVLOS communication range
- Maintains lock during aircraft maneuver
LAYER 4: GROUND CONTROL
CCT Series Ground Control Terminal
- Mission planning & real-time control
- Payload management & telemetry monitoring
- Ruggedized, portable field station
Proven Subsystem Components
Proven components that integrate seamlessly with any one of VTOL fixed wing platforms in our lineup. Each subsystem is available as a standalone upgrade or bundled in a complete system package. UAV communication standards → RTCA DO-362A
Request Your Integrated System
Describe your mission. We recommend the right VTOL fixed wing platforms configuration – airframe, data link, antenna, and ground station – as a single integrated package.
All layers are pre-validated for interoperability. Mix and match components to match your budget, range requirement, and deployment timeline. Single-vendor support across the full stack. Learn about BVLOS regulatory frameworks →
