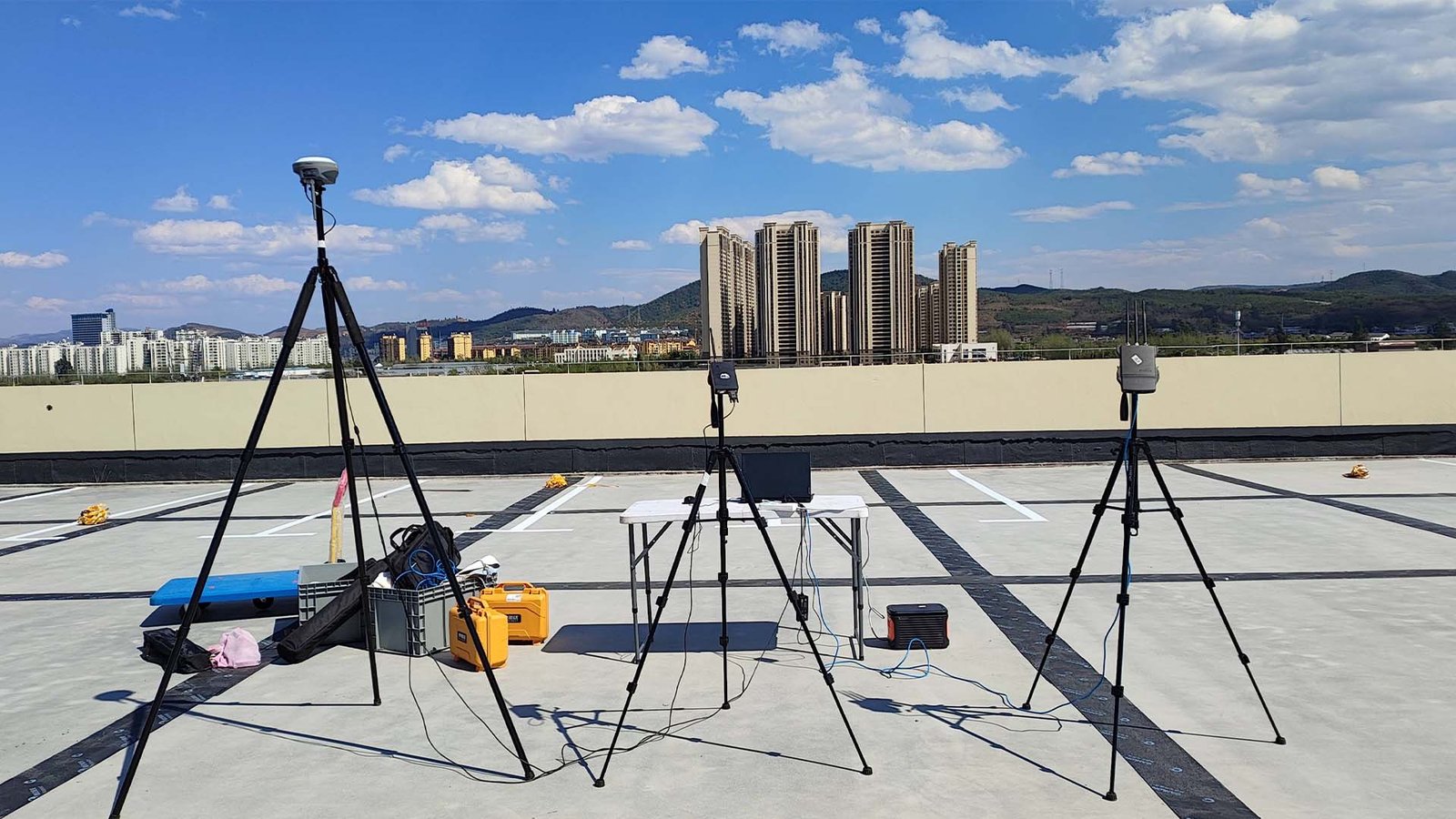

ATS Standard
110km Extreme-Range Antenna Tracking System
A system-level communication node for the most demanding BVLOS missions. The extreme-range antenna tracking system – ATS Standard integrates IP MESH self-healing networking, military-grade AES256 encryption, and dual-sensor precision tracking to maintain a stable 56Mbps link across 110 kilometers.
System Core Modules
- Tracking Range 20km – 110km
- Network Topology IP MESH (32 Nodes)
- Data Throughput Up to 56Mbps
- Encryption AES128 / AES256
- Anti-Jamming FHSS >1000 hops/s
Technical Specifications
& System Performance
Comprehensive technical breakdown of the extreme-range antenna tracking system – ATS Standard hardware, IP MESH architecture, encryption features, and extreme-range tracking performance.
1. Extreme-Range Tracking Performance

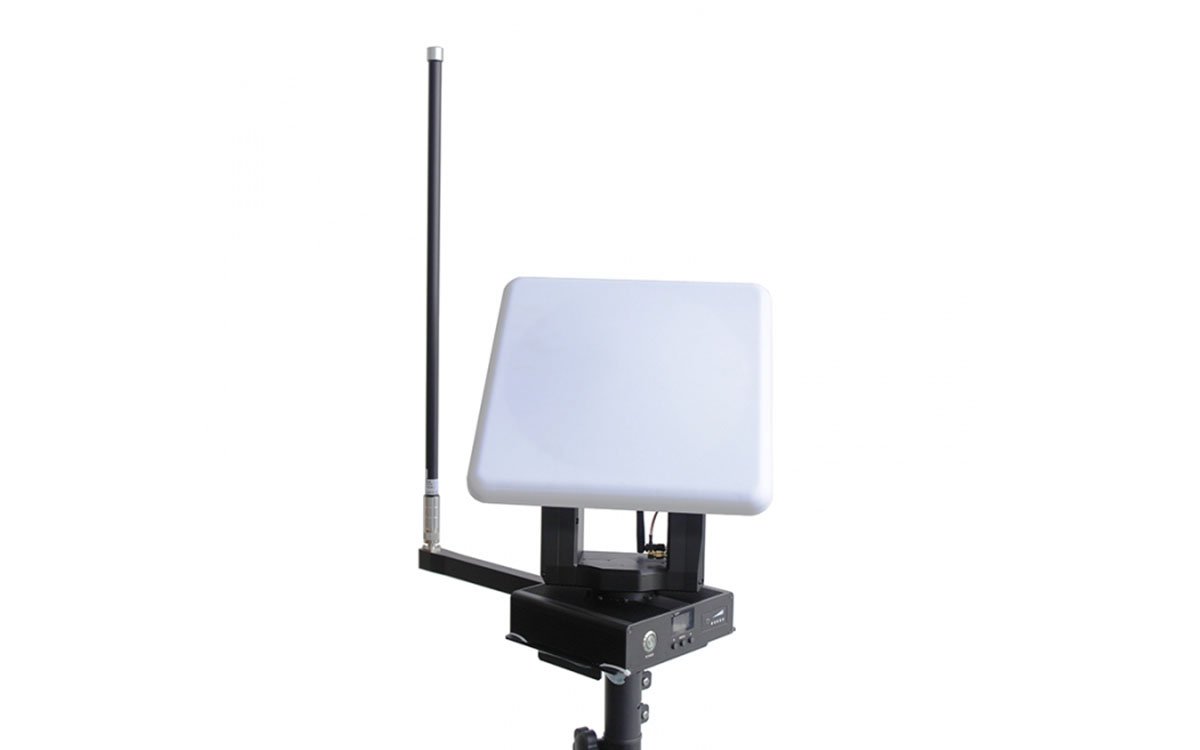

The ATS Standard 110km BVLOS antenna tracker delivers validated 110km capability through a dual-sensor architecture. By combining full-constellation GPS telemetry with independent angular measurement, the extreme-range antenna tracking system calculates precise azimuth and elevation angles to keep the high-gain directional panel antenna locked onto the aircraft across vast operational distances.
- Tracking Range: 20km to 110km (field-validated)
- Tracking Method: Automatic GPS-based directional alignment
- Tracking Precision: Dual sensors with ±2° angle accuracy
- Rotation: 360° horizontal / 90° vertical
- Motor Torque: 30N·m high-quality steering gear
- Slip Ring: 360° twist-free design (no cable wrap)

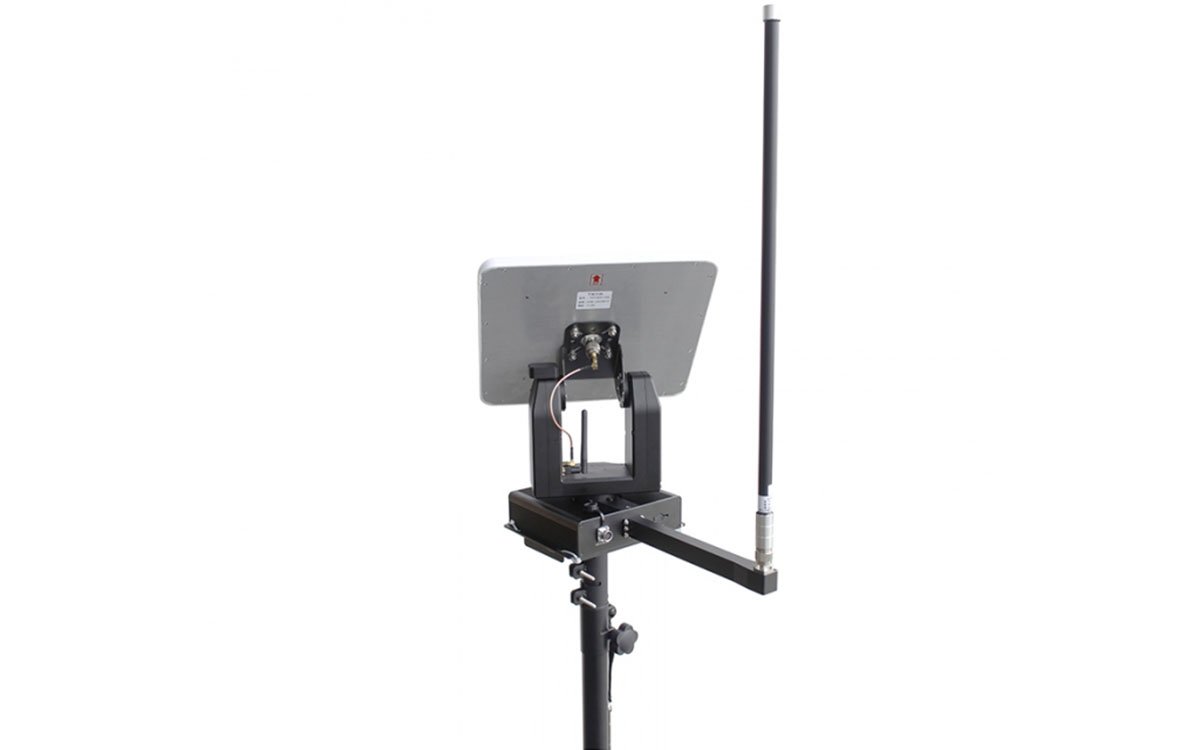

2. IP MESH Self-Healing Network (MANET)
The integrated IP MESH antenna tracking data module implements a Mobile Ad-hoc Network (MANET) architecture supporting up to 32 nodes. Unlike conventional point-to-point links, the MESH topology dynamically routes around obstacles and interference sources, maintaining optimal data paths as network conditions change.
- Network Topology: IP MESH (MANET), up to 32 nodes
- Data Throughput: Up to 56Mbps
- IP Data: Full transparent transmission (TCP/UDP/RTSP)
- Self-Healing: Dynamic route discovery & recovery
- GPS Module: High-performance full-constellation
- LoRa Module: Integrated 433MHz 22dBm

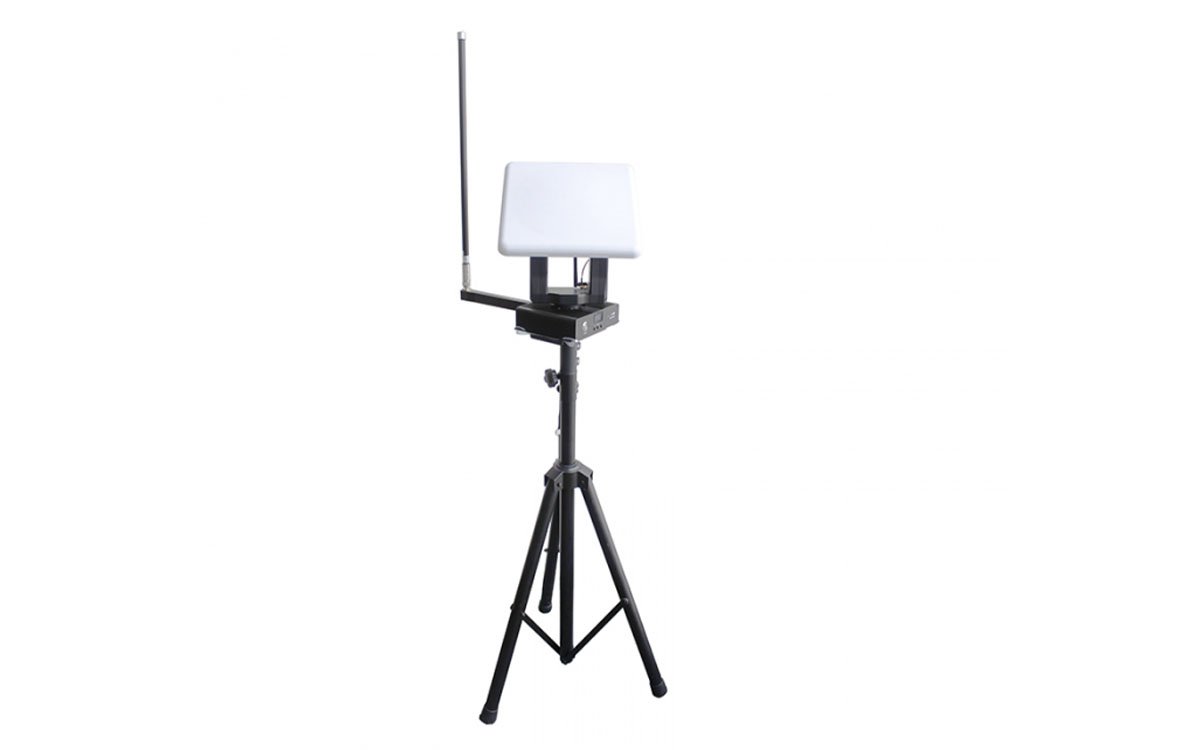

3. Military-Grade Security & Anti-Jamming
For operations in contested electromagnetic environments, the extreme-range antenna tracking system supports AES128/AES256 encryption and optional Frequency Hopping Spread Spectrum (FHSS) delivering over 1,000 hops per second. The optional Intelligent Frequency Selection (IFS) continuously monitors spectrum occupancy and selects the clearest channel.
- Encryption: AES128 / AES256
- FHSS: Optional >1000 hops/s frequency hopping
- IFS: Optional Intelligent Frequency Selection
- Modulation: BPSK/QPSK/16QAM/64QAM (adaptive)
- Receive Sensitivity: -100dBm@2.5MHz
4. RF & Data Link Capabilities
The ATS Standard BVLOS antenna tracking system operates across a wide RF frequency range with customizable options to comply with regional regulations. The TDD-COFDM waveform with 2T2R configuration delivers robust performance in challenging RF environments.
- RF Frequency: 1300-1500MHz (70MHz-6GHz customizable)
- Channel Bandwidth: 2.5M/5M/10M/20MHz (40MHz optional)
- RF Waveform: TDD-COFDM (2T2R)
- Output Power: Customizable, 1dBm step adjustable
- Data Throughput: Up to 56Mbps
5. Physical & Environmental Specs
Built for all-weather deployment, the ATS Standard BVLOS antenna tracking system is housed in a rugged IP65 enclosure. The extreme-range antenna tracking system supports both tripod and suction cup mounting options for fixed-site or mobile operations, and includes an integrated battery pack for approximately 4 hours of field endurance.
- IP Rating: IP65 (all-weather operation)
- Dimensions: 416 × 396 × 306mm
- Weight: 6.80kg (with battery)
- Working Temperature: -20°C to +60°C
- Power Supply: 16.8V/5A
- Power Consumption: ~100W average
- Battery: 14.8V/13Ah (~4 hours endurance)
- Installation: Tripod & suction cup mounting
6. I/O & Connectivity
The SoarApex ATS Standard provides a comprehensive set of I/O interfaces for integration with existing ground station infrastructure. The built-in web management interface allows remote configuration and monitoring.
- RF Interface: N Female ×1, SMA Female ×2
- LAN Interface: Waterproof aviation connector
- Power Interface: Waterproof aviation connector
- GPS Input: Full-constellation high-performance module
- LoRa Interface: 433MHz 22dBm integrated module
- Web Management: Built-in configuration & monitoring
- IP Data: Full transparent (TCP/UDP/RTSP)
Proven in the Field
Extreme-Range Applications
From cross-country infrastructure corridors to contested maritime zones, the extreme-range antenna tracking system delivers validated 110km connectivity where conventional links fail.
Why Choose the Extreme-Range Antenna Tracking System?
See how the ATS Standard BVLOS antenna tracker system compares against generic long-range solutions — and why a validated system-level architecture matters at 110km.
Frequently Asked Questions
Technical answers for engineers evaluating the ATS Standard BVLOS antenna tracking system for extreme-range BVLOS deployments.

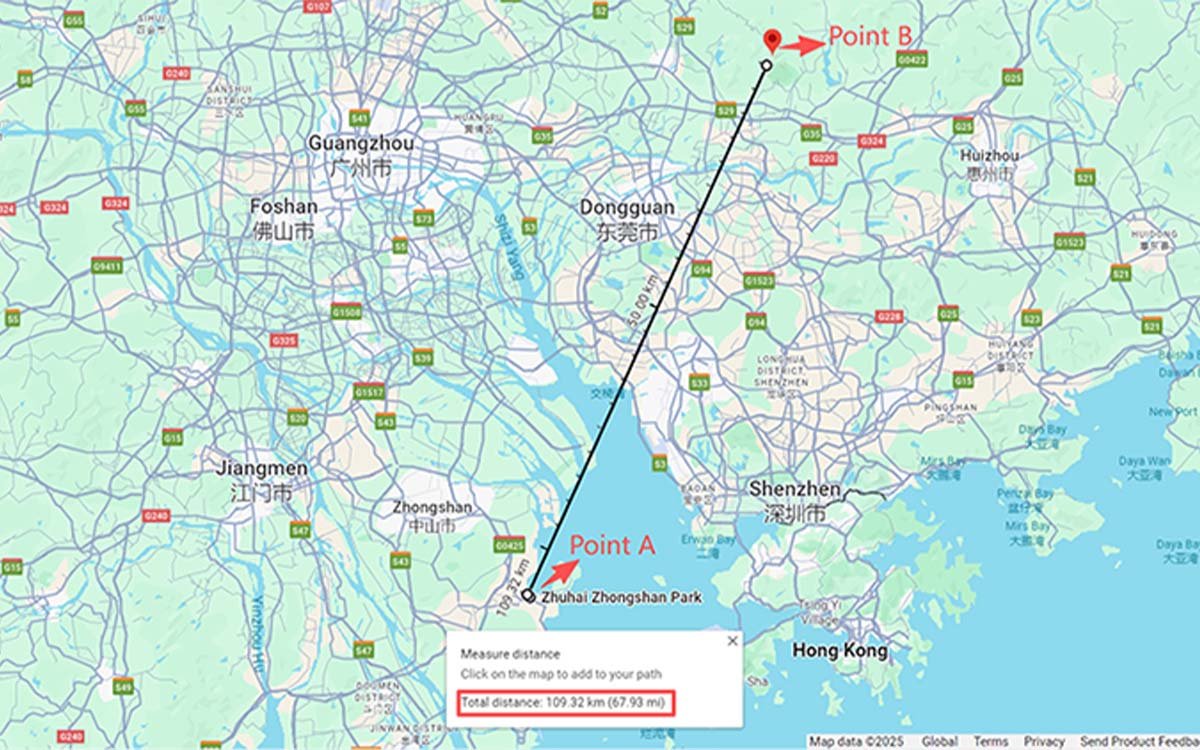

The ATS Standard BVLOS antenna tracker system was field-validated by the SoarApex engineering team on August 27, 2025, achieving sustained HD video transmission, telemetry integrity, and command responsiveness across the full 110km distance. The extreme-range antenna tracking system supports a tracking range from 20km to 110km, depending on antenna gain, frequency band, and line-of-sight conditions.
The ATS Standard combines full-constellation GPS telemetry parsing with independent angular measurement. The ground station calculates precise azimuth and elevation pointing angles from the aircraft’s latitude, longitude, and altitude data, while the dual-sensor architecture maintains ±2° tracking accuracy. The 360° twist-free slip ring ensures continuous rotation without cable wrap limitations.
The ATS Standard BVLOS antenna tracker system supports both tripod mounting for fixed ground station locations and suction cup mounting for rapid attachment to vehicles, maritime vessels, and temporary observation posts. This dual-deployment capability enables both permanent infrastructure and tactical mobile operations.
The extreme-range antenna tracking system includes an integrated 14.8V/13Ah battery pack providing approximately 4 hours of field endurance. Average power consumption is ~100W, with a power supply of 16.8V/5A. The ATS-standard BVLOS system is designed for all-day operations when paired with an external power source such as our Outdoor Power Station Solution.
The integrated IP MESH data module implements a Mobile Ad-hoc Network (MANET) architecture supporting up to 32 nodes. Unlike conventional point-to-point links, the MESH topology dynamically routes around obstacles and interference sources, automatically discovering and maintaining optimal data paths as network topology changes. This self-healing capability is essential for BVLOS missions where terrain, buildings, or atmospheric conditions may intermittently obstruct direct line-of-sight communication.
The ATS Standard supports both AES128 and AES256 encryption to protect mission-critical data. For contested electromagnetic environments, the optional Frequency Hopping Spread Spectrum (FHSS) mode delivers over 1,000 hops per second, making the signal extremely resistant to jamming and interception. The optional Intelligent Frequency Selection (IFS) capability continuously monitors spectrum occupancy and automatically selects the clearest channel.
The extreme-range antenna tracking system delivers data rates up to 56Mbps — sufficient for simultaneous HD video streaming, telemetry, and command-and-control data across the full 110km operational envelope. The BVLOS antenna tracker system supports full transparent IP data transmission with TCP/UDP/RTSP protocols.
The ATS Standard is fully compatible with Mavlink Protocol, seamlessly integrating with ArduPilot and PX4 flight control stacks. Ground station software compatibility includes QGroundControl and Mission Planner. For OEM-specific development, SDK and web API access are available.
Yes. The standard RF frequency range is 1300-1500MHz, with customizable options spanning 70MHz to 6GHz for regional regulatory compliance. Output power is also customizable with 1dBm step adjustment. Please contact our engineering team with your specific frequency requirements.
The ATS Standard provides N Female ×1 and SMA Female ×2 RF interfaces, waterproof aviation connectors for LAN and power, a full-constellation GPS input, and an integrated 433MHz 22dBm LoRa module. A built-in web management interface allows remote configuration and monitoring.
Yes. The ATS Standard is compatible with the SIYI ecosystem, including SIYI optical pods and datalink products. For custom integration requirements, our engineering team can provide SDK access and technical support.
