Description

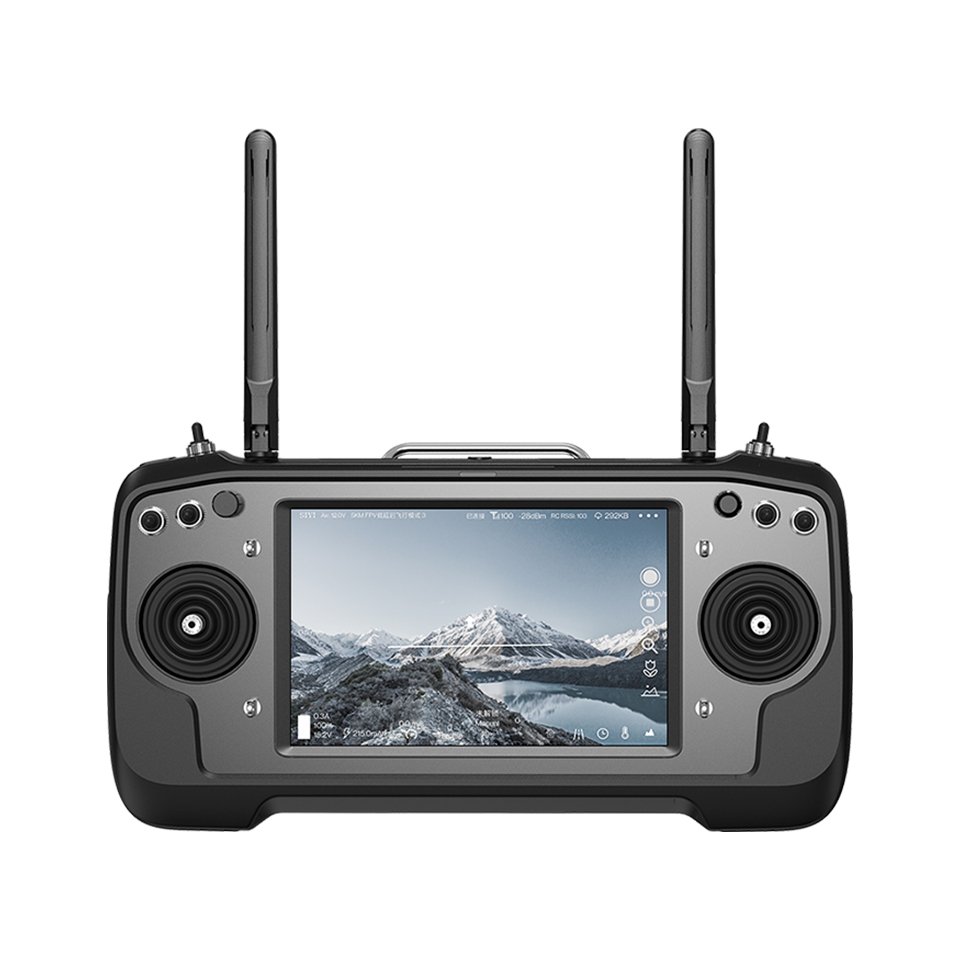

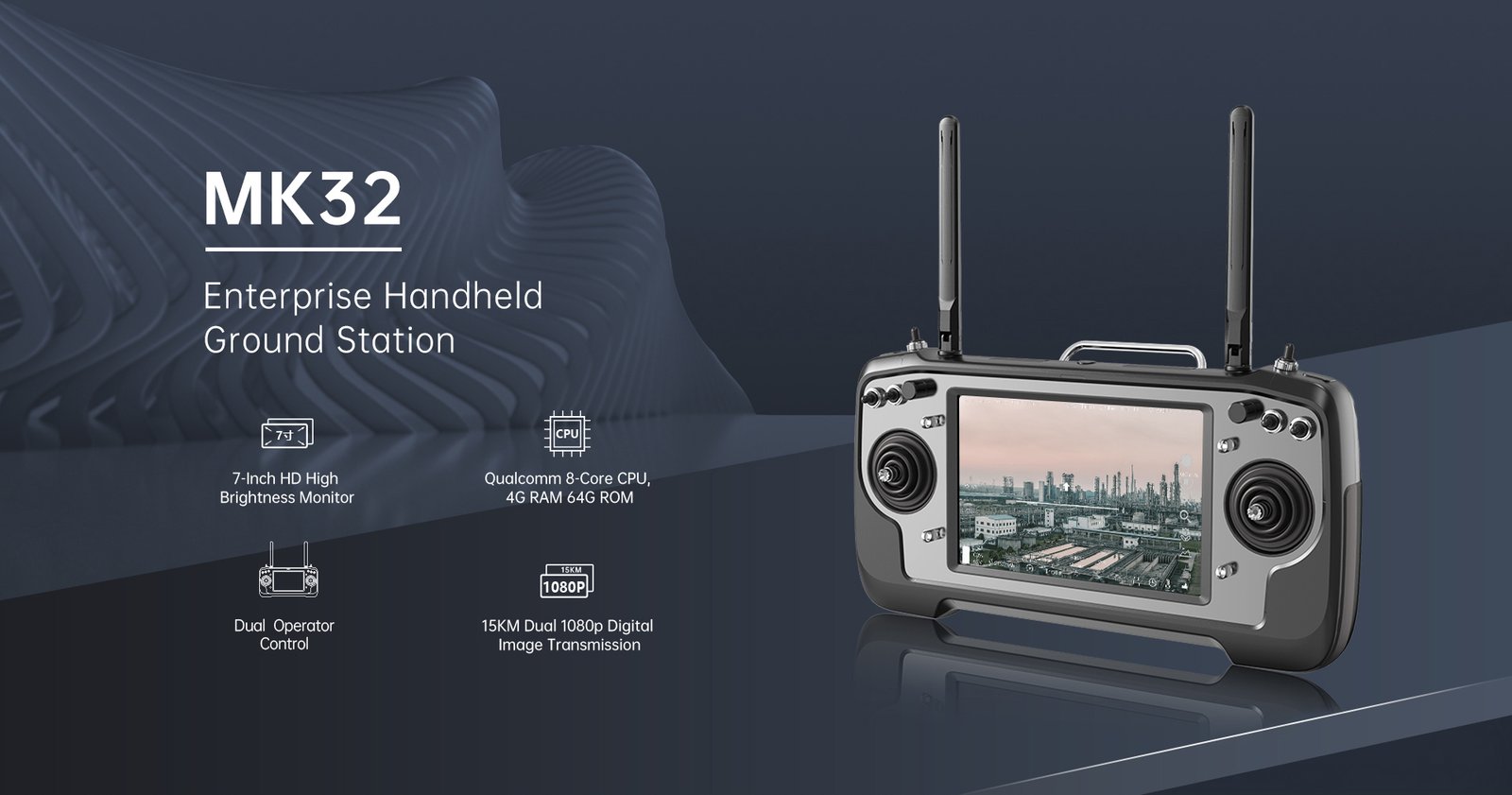

MK32E Ground Control Station for UAV/FPV, a Command and Control Terminal smart controller device
The MK32E CCT Handheld Ground Control Station has a built-in 7″ monitor with high resolution and sharpness. With a maximum of 1000nits, information and images from the ground control software are displayed on the screen. The MK32’s connection is based on SIYI’s independent HD wireless image transmission technology, an all-in-one connection. The technology has the property that the transmission can automatically adapt to the frequency band with the fewest interfaces. In addition, the MK32E CCT Handheld GCS is equipped with an 8-core CPU from Qualcomm, which can smoothly decode 1080p @60fps video streams in H.264 or H.265 format.
Technical Parameters:
- Max Transmission Range: 15 kilometers (unobstructed, free of interference)
- Channels: 16 physical channels, 16 communication channels
- Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
- Image Transmission Compatible Android GCS:
- QGround Control
- SIYI FPV
- Image Transmission Compatible Windows GCS:
- QGround Control
- Mission Planner (H264 only)
MK32E Ground Control Station for UAV/FPV Handheld Command and Control Terminal Device Key Features:

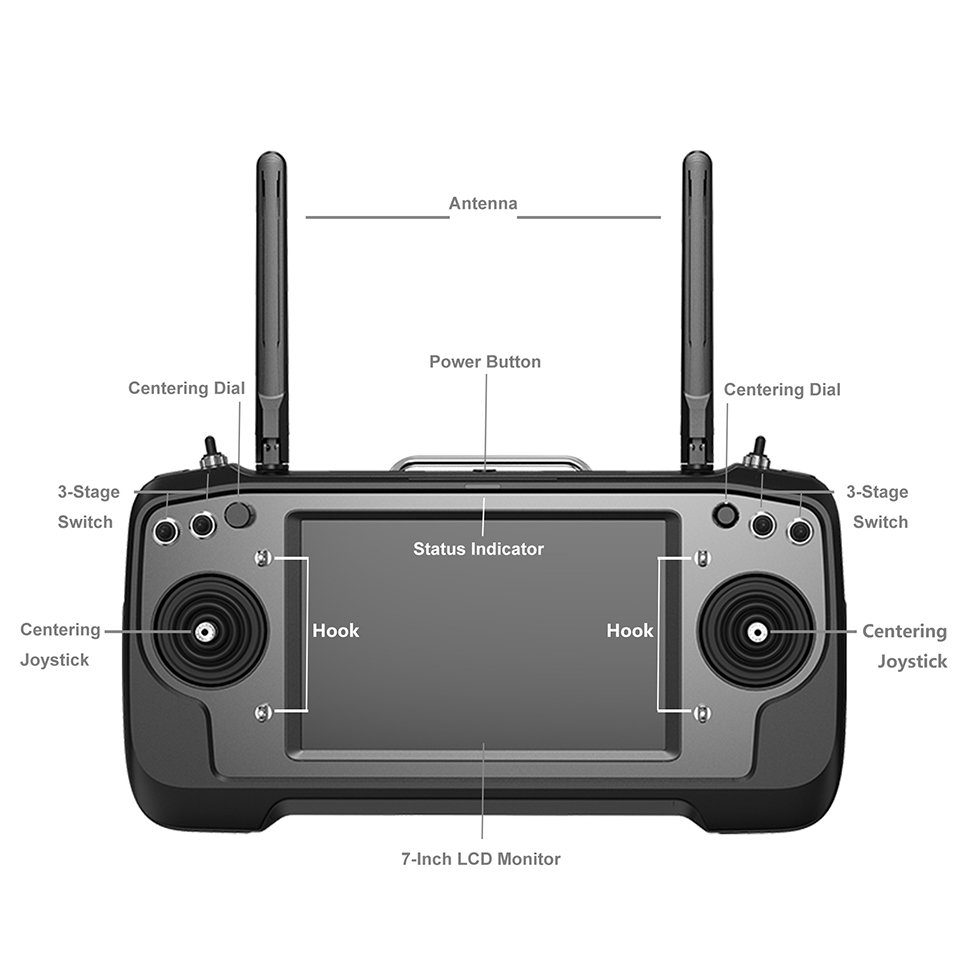

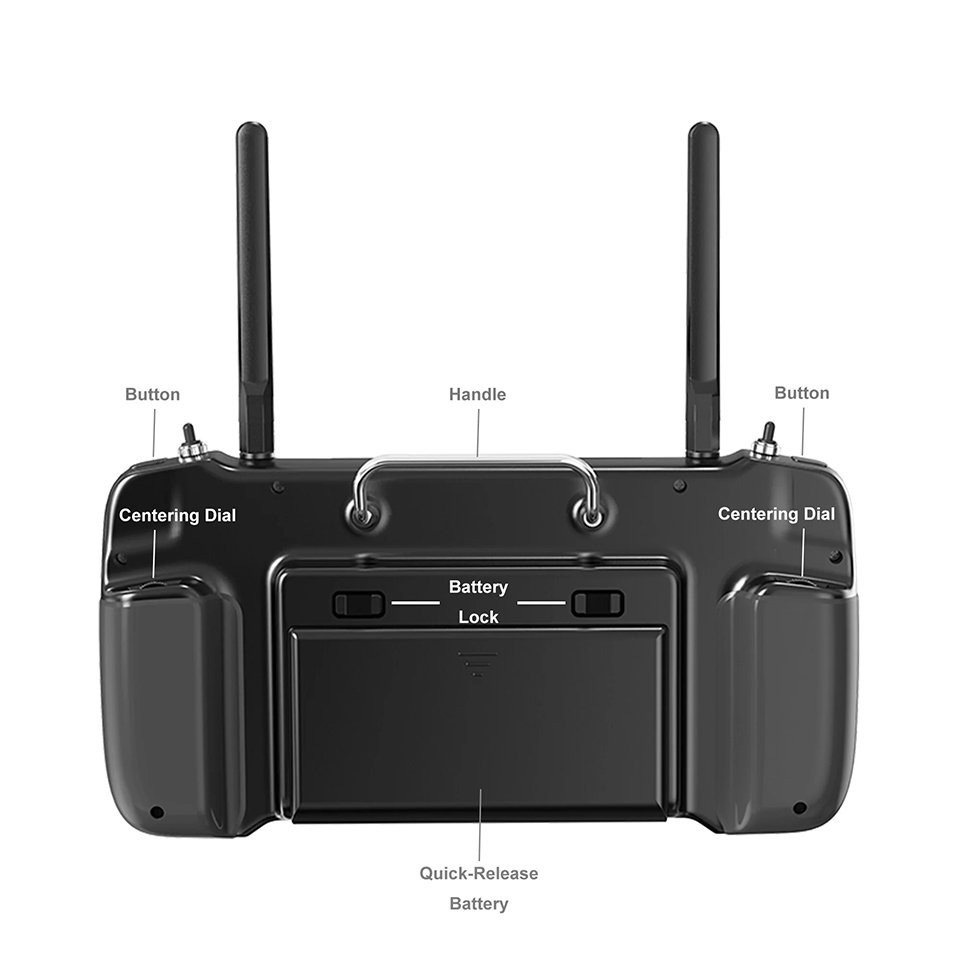

- Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
- System: Android 9.0 OS, 4G RAM & 64G ROM
- Dimension (antenna overlapped): 308 x 148 x 72 mm
- Weight: 1440 g
- Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
- Fast Charging Protocol: PD 30W
- Charging Time: 3.5 Hours (30W PD Charging)
- Battery Life: 10 hours

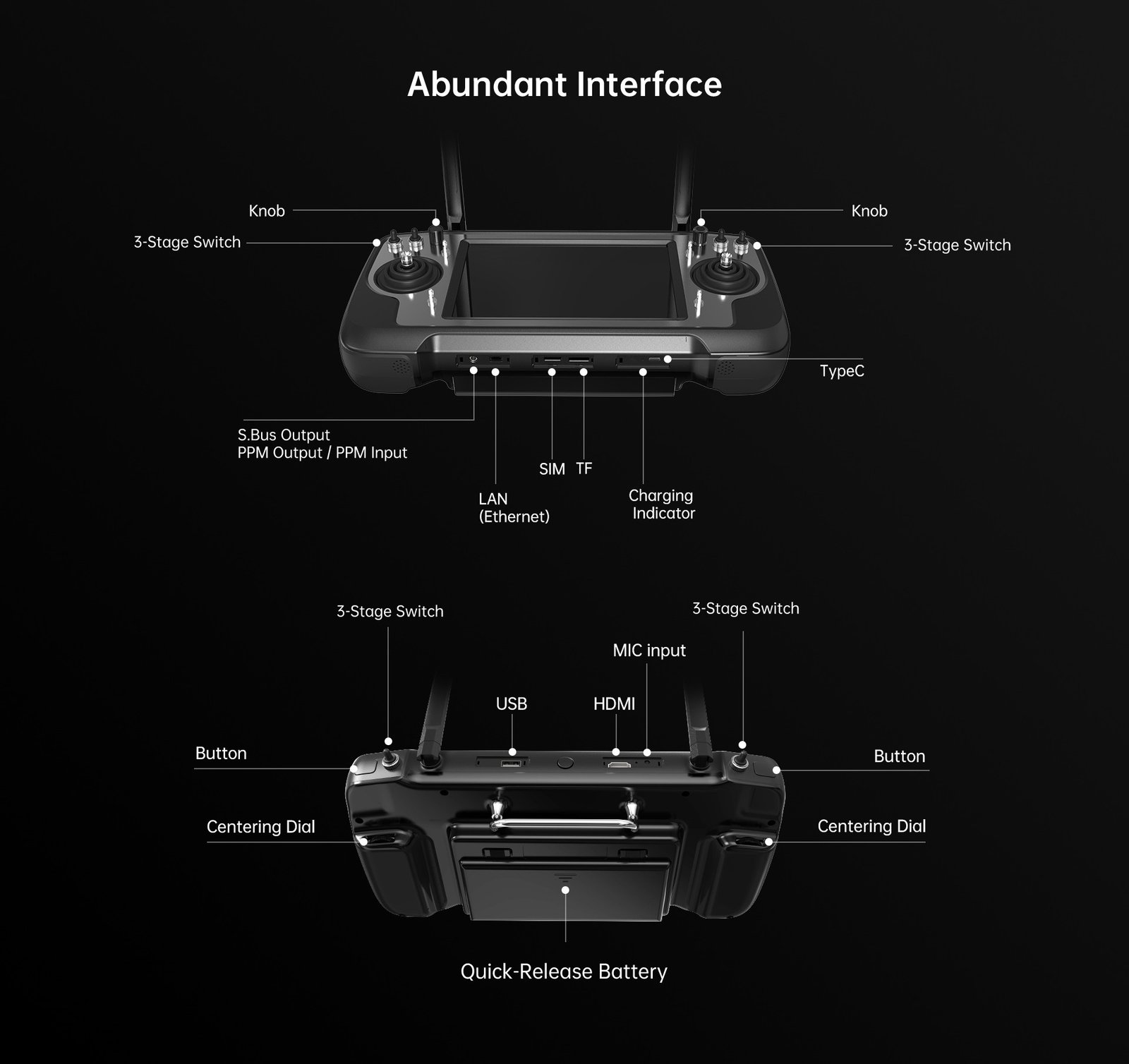

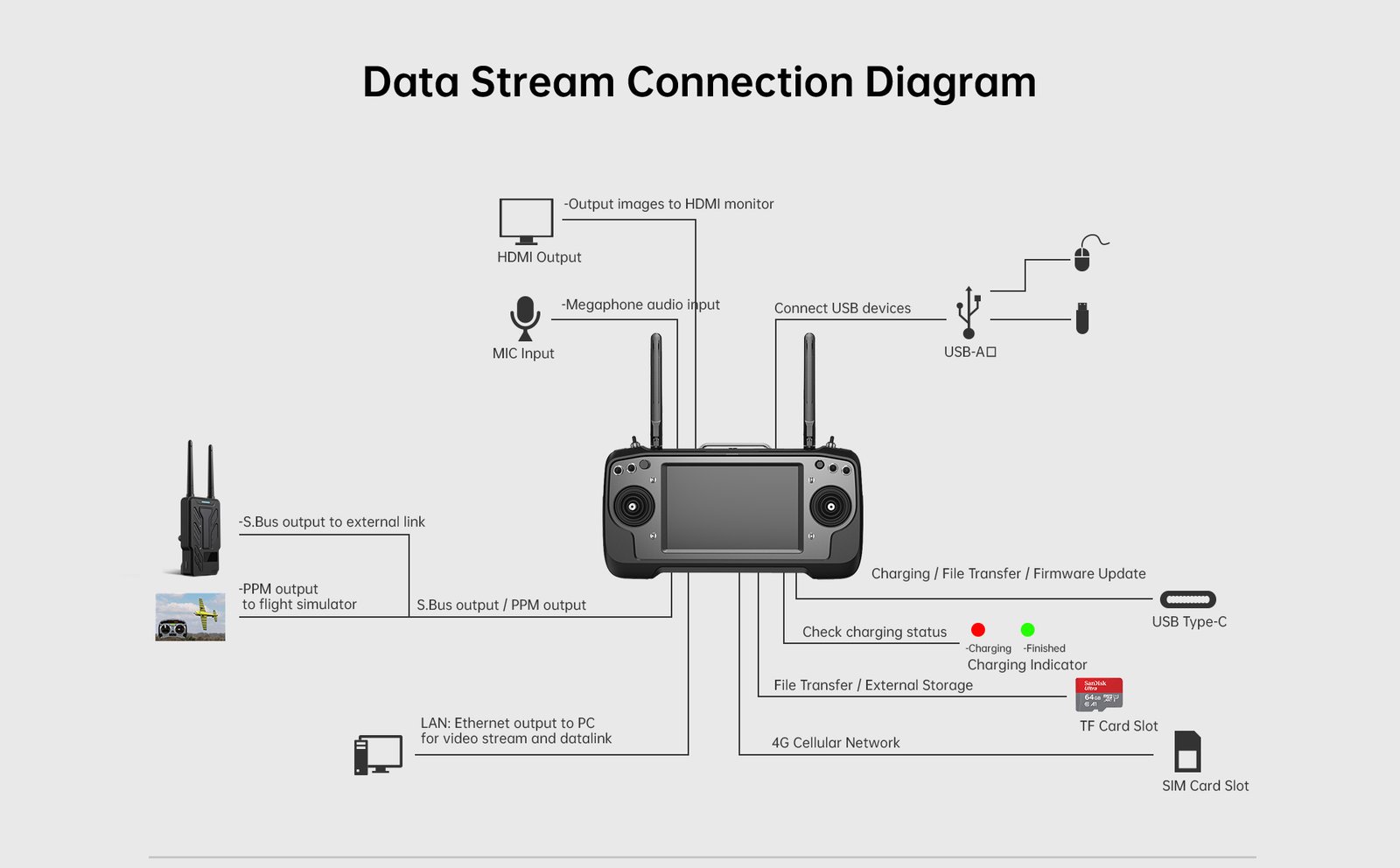

- Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- Mobile Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
- Waterproof Level: IP4X
- Working Temperature: -10 to 50℃
Air Unit Key Features:

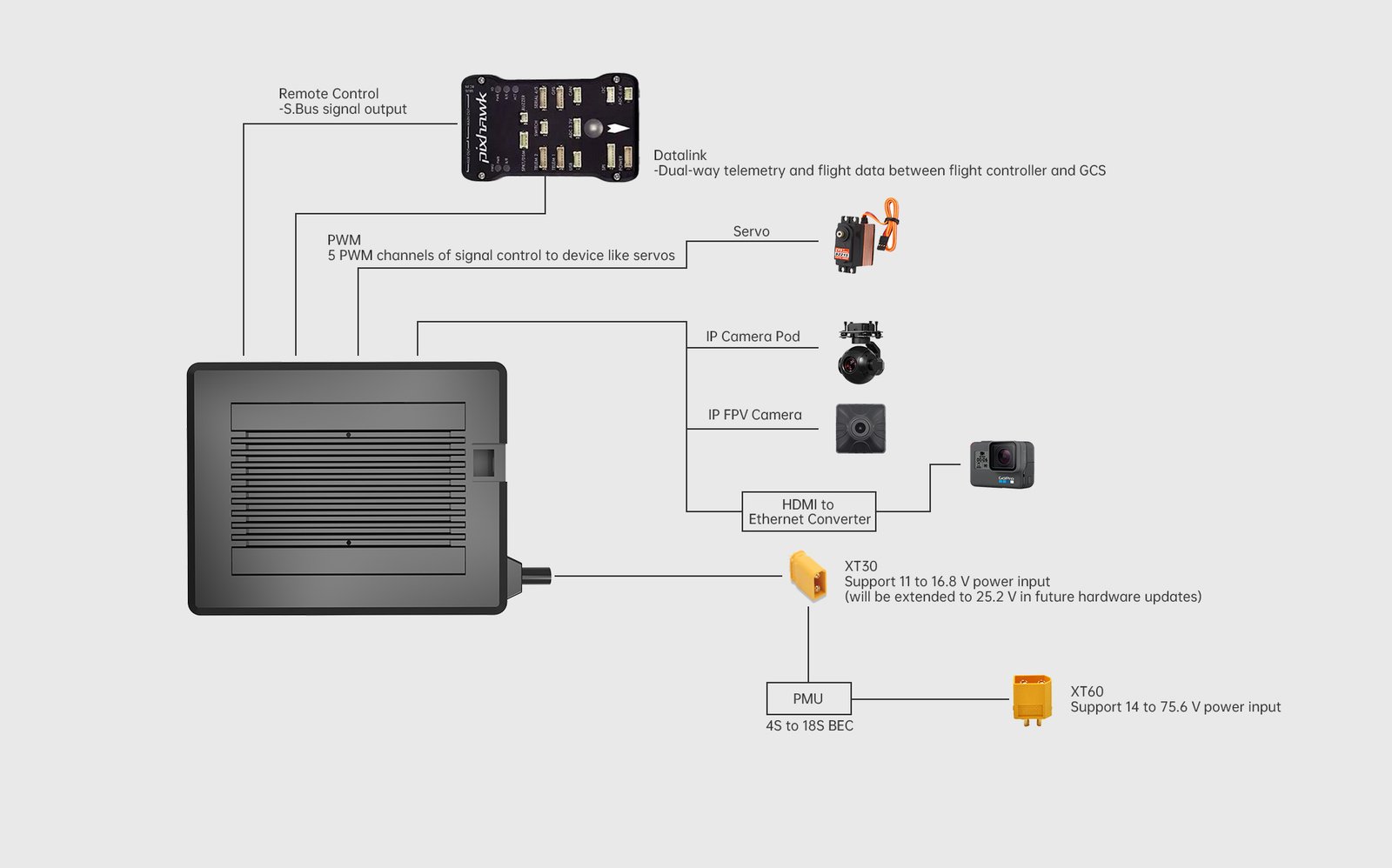

- Signal Output: 16 channels of S.BUS, 5 channels of PWM
- Interface & Ports:
- Remote Control: SBUS (GH1.25 3-Pin)
- Datalink (to FC): UART (GH1.25 4-Pin)
- PWM Channel 1 to 5: GH1.25 6-Pin
- Video Input / Network Communication: Ethernet (GH1.25 8-Pin)
- Firmware Upgrade: Type-C
- Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
- Weight (antenna excluded): 74 g
- Antenna Gain: 5 dBi
- Power Input: 12.6 to 25.2 V (expandable to up to 75.6V with BEC)
- Working Temperature: -10 to 50℃

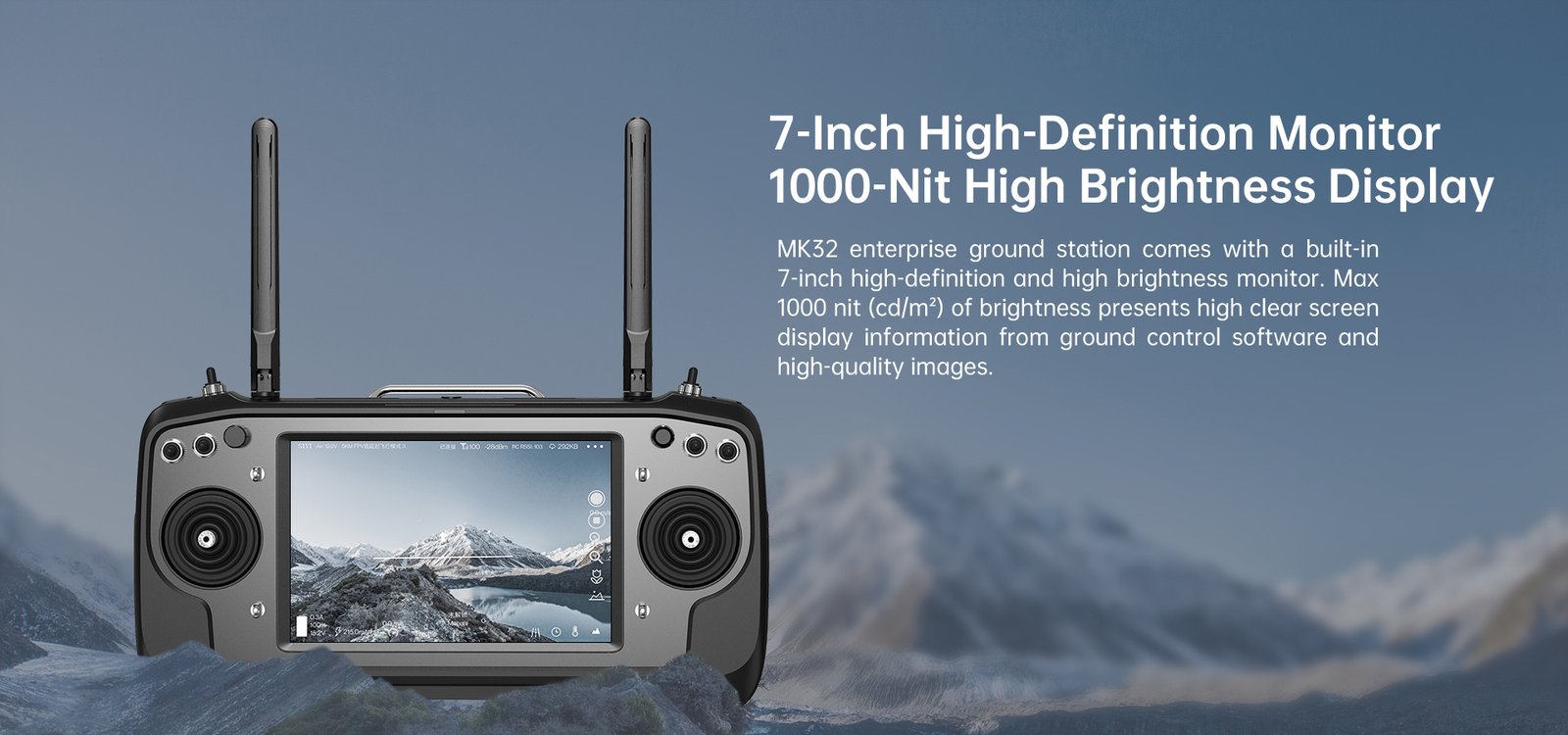

High-Brightness 7-inch LCD Screen
- A 1000-nit peak luminance panel certified for outdoor visibility even under full midday sun which exceeds most competitors’ screens (typically capped between 500–700 nits.
-
Dual-band RF Transmission System
- Supports both 2.4 GHz and 5.8 GHz frequencies simultaneously, enabling automatic switching based on interference levelsa feature absent even in premium DJI transmitters.
-
Built-in RTK Module Support
- Natively integrates with external CORS networks via LTE/USB-C, allowing centimeter-level positioning accuracy directly within the UInot requiring third-party apps or dongles.
-
Industrial-Grade Thermal Management
- An internal heat sink system maintains stable performance across -20°C to +55°C ambient temperature san essential trait for Arctic surveys or desert inspections.

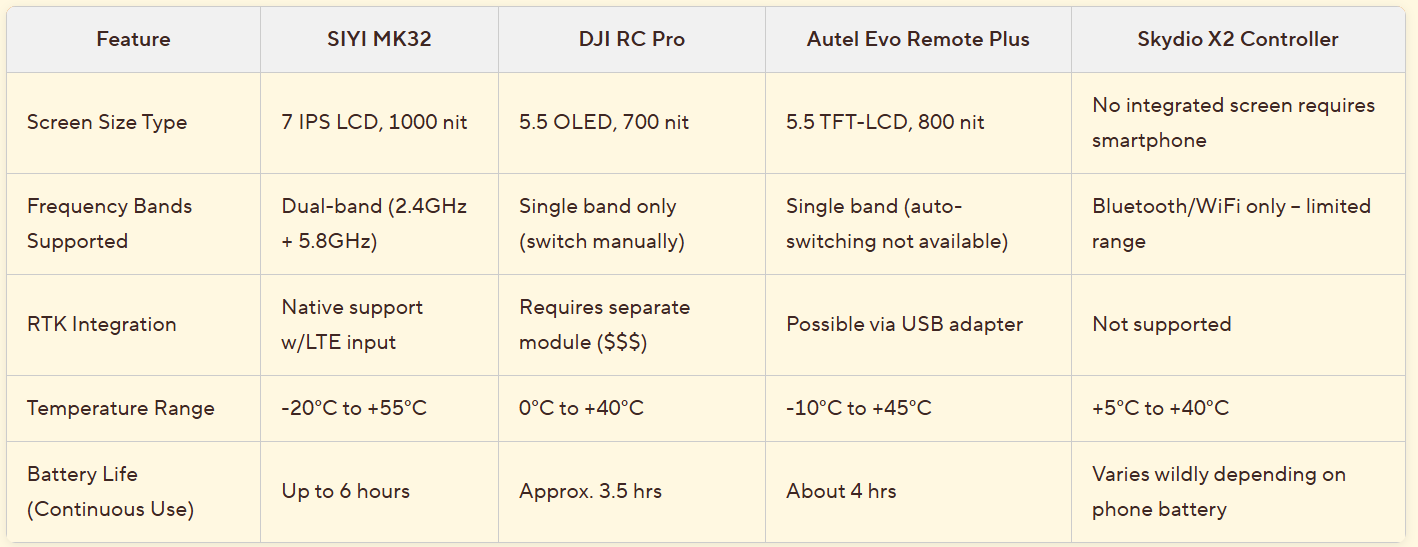

When comparing specs side-by-side against industry benchmarks like the Autel Evo Remote Plus and Skydio X2 Controller, here’s how they stack up:
