SDL MK22/MK55 Long-range Integrated 22km 55km Wireless Data Link – Industrial Professional UAV/USV/UGV C2 System Operations
Long-range Integrated 22km 55km Wireless Data Link Product Overview

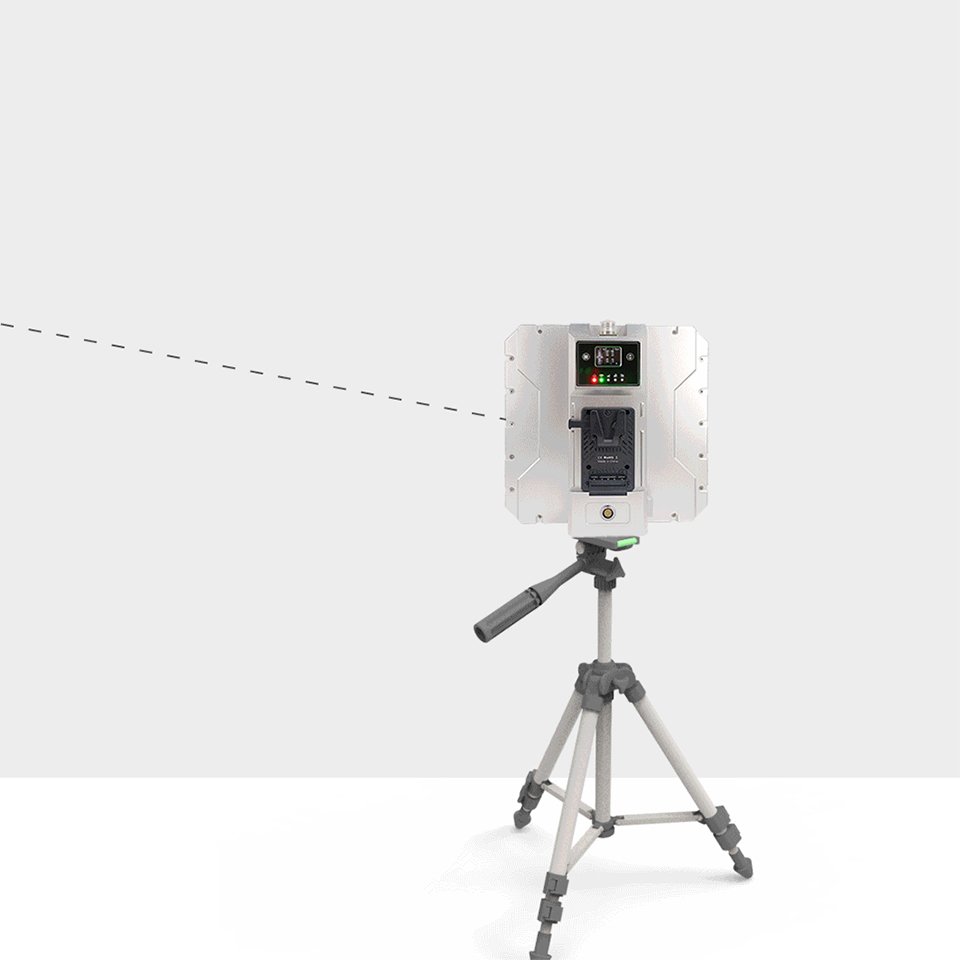

The SDL MK22/MK55 22km 55km Wireless Data Link is an integrated drone data link system that continues the engineering design philosophy and operational paradigm of the Maestro series wireless high-definition image transmission platform. Built with powerful functionality and exceptional integration density, this system addresses the demanding communication requirements of long-range unmanned aerial vehicle operations. The ground terminal features a standard quarter-inch screw mount compatible with universal tripod systems, enabling rapid azimuth alignment with airborne assets through simple tripod rotation. Dual power supply architecture ensures operational flexibility across diverse deployment scenarios, while one-click code matching and automatic encryption streamline field configuration without requiring specialized software expertise.
The 22km 55km Wireless Data Link system connects to ground station infrastructure through a standard high-strength flexible cable, delivering drone video and telemetry data in a user-friendly interface that provides true what-you-see-is-what-you-get display fidelity. This integration makes the MK22/MK55 an ideal communication backbone for Fixed-wing Platforms conducting extended-range survey missions, Multi-rotor Drones performing infrastructure inspection, and FPV & Specialized Platforms operating in challenging electromagnetic environments.
Integrated Design with High Integration Density

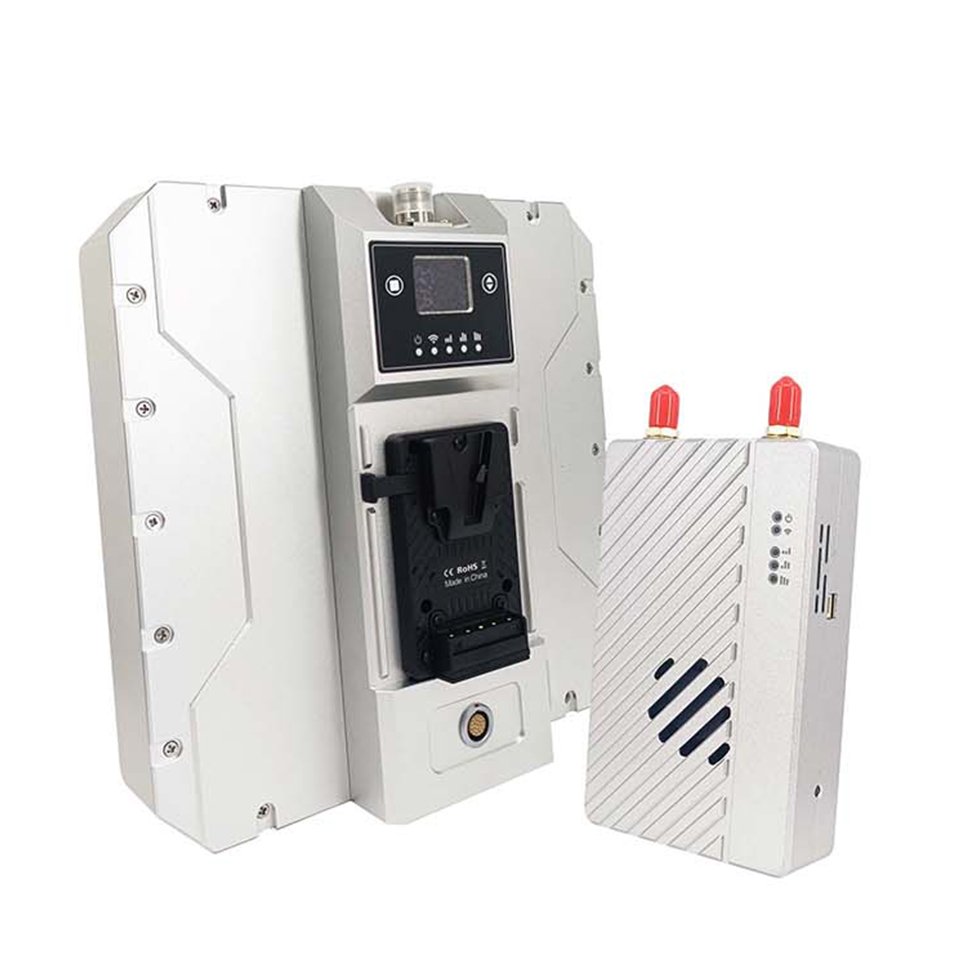

The MK22/MK55 22km 55km Wireless Data Link ground terminal represents a significant architectural advancement, achieving a five-in-one integration of wireless high-definition video transmission, telemetry data link, SBUS control signal routing, antenna subsystem, and receiving terminal. This consolidation eliminates the cable clutter and configuration complexity associated with discrete component systems, reducing setup time from minutes to seconds.
The antenna subsystem employs a hybrid configuration combining a flat panel directional antenna with an omnidirectional fiberglass antenna. The high-gain directional element enhances signal strength in the bore sight direction while significantly improving the data link’s anti-interference capability against off-axis radiation sources. This dual-antenna approach optimizes the link budget for maximum reliable transmission distance while maintaining connectivity during aircraft maneuvering when the primary directional path may be temporarily obstructed.
The integration density achieved in this design reduces ground station footprint, simplifies logistics, and improves overall system reliability by minimizing interconnect points that could fail under field conditions. For BVLOS Antenna Tracking System deployments, this compact form factor enables rapid repositioning and reduces the infrastructure requirements for mobile command posts.
Real-Time Signal Monitoring with OLED Display

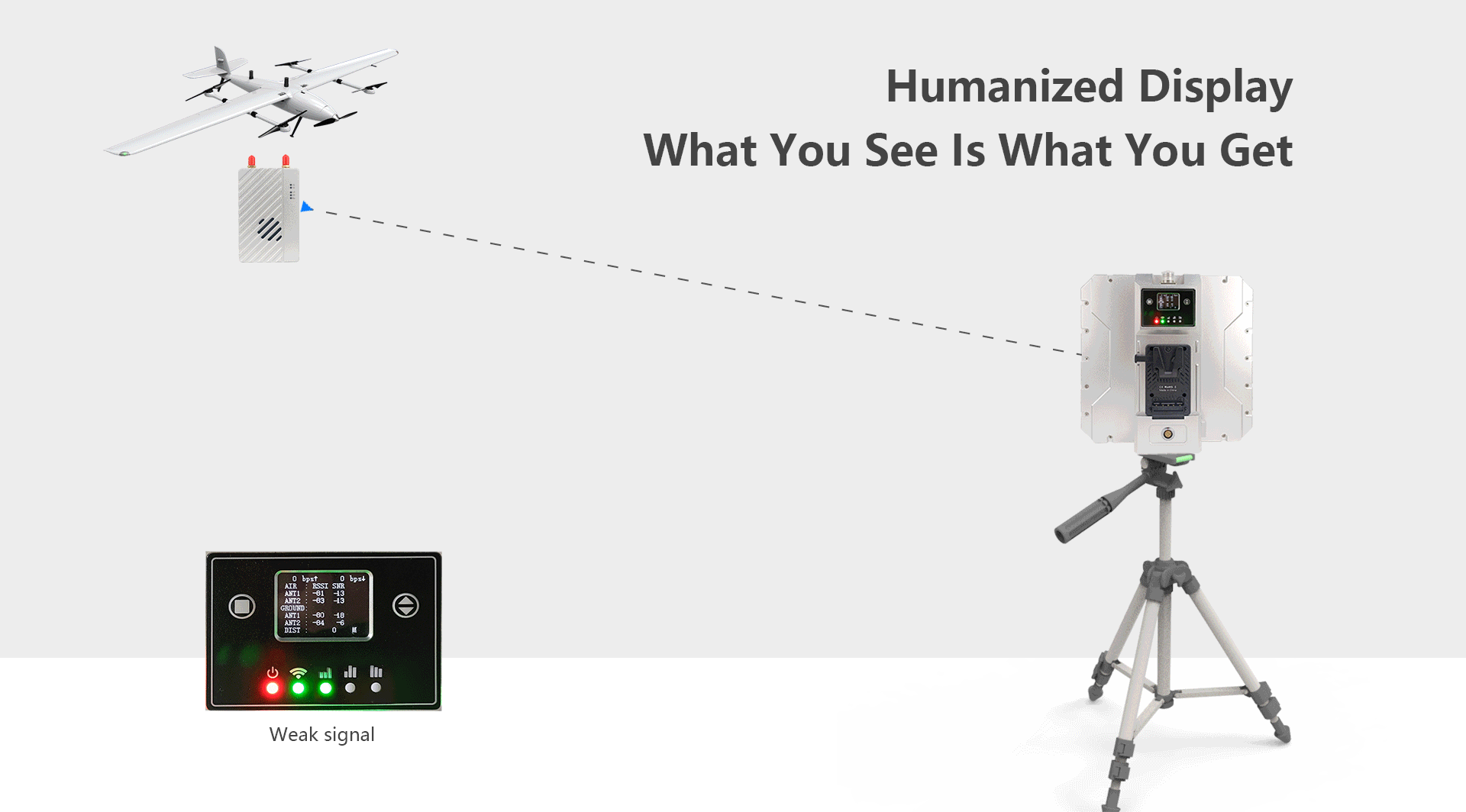

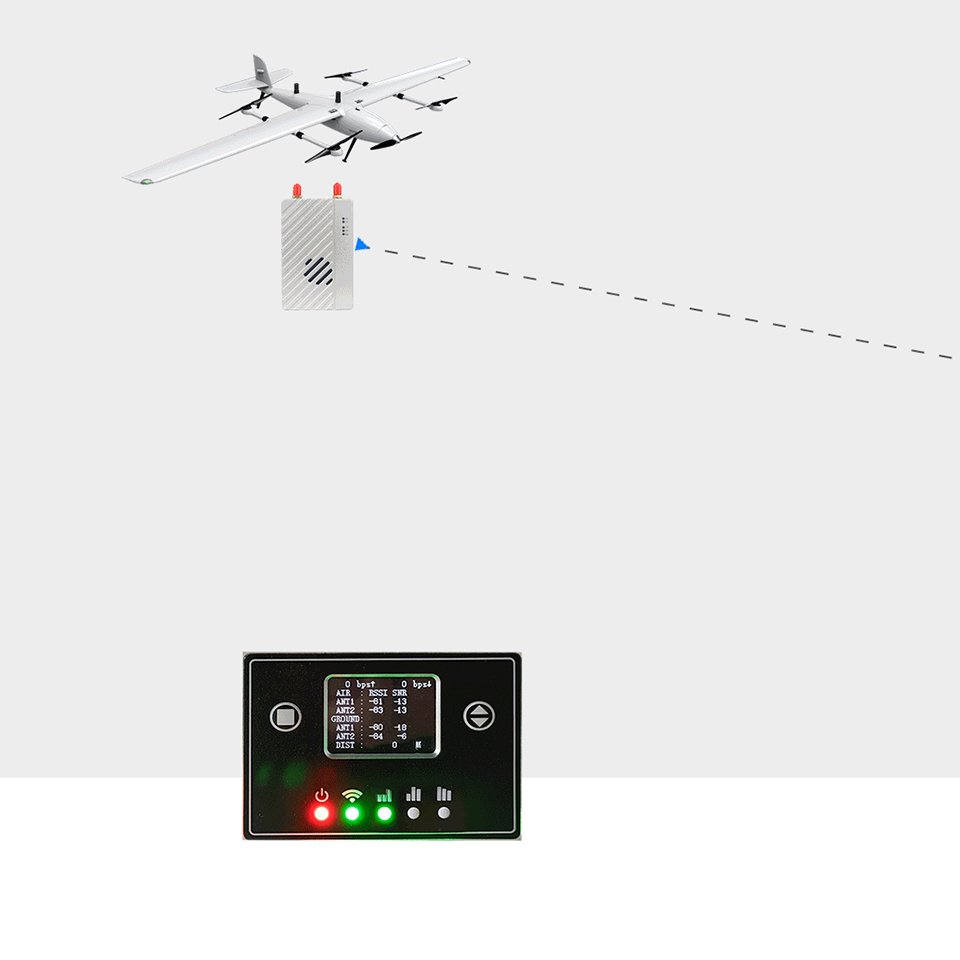

The 22km 55km Wireless Data Link receiving terminal incorporates an integrated OLED display that provides clear indication of current communication parameters including signal strength, signal quality metrics, IP addressing information, and uplink and downlink data throughput statistics. This real-time feedback enables operators to optimize antenna alignment without requiring external test equipment or software diagnostic tools.
Users can adjust both horizontal and vertical orientation angles of the flat panel antenna in real time, observing the immediate impact on signal strength through the OLED display. This closed-loop alignment process allows determination of the optimal bore sight direction for the panel antenna, maximizing received signal power and ensuring the most robust link margin. The intuitive visual feedback makes this sophisticated RF alignment process accessible to operators without specialized radio engineering training.

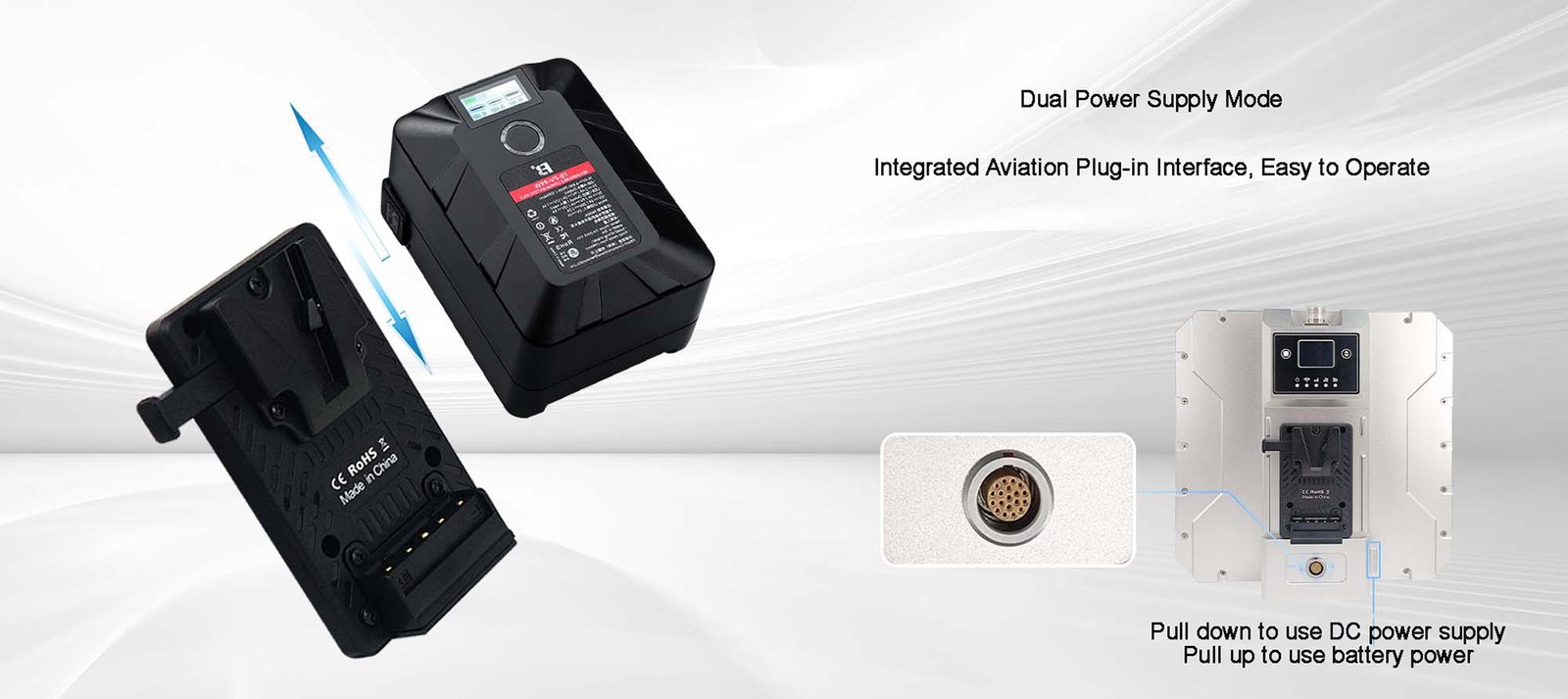

Dual Power Supply Mode with Integrated Aviation Connector Interface

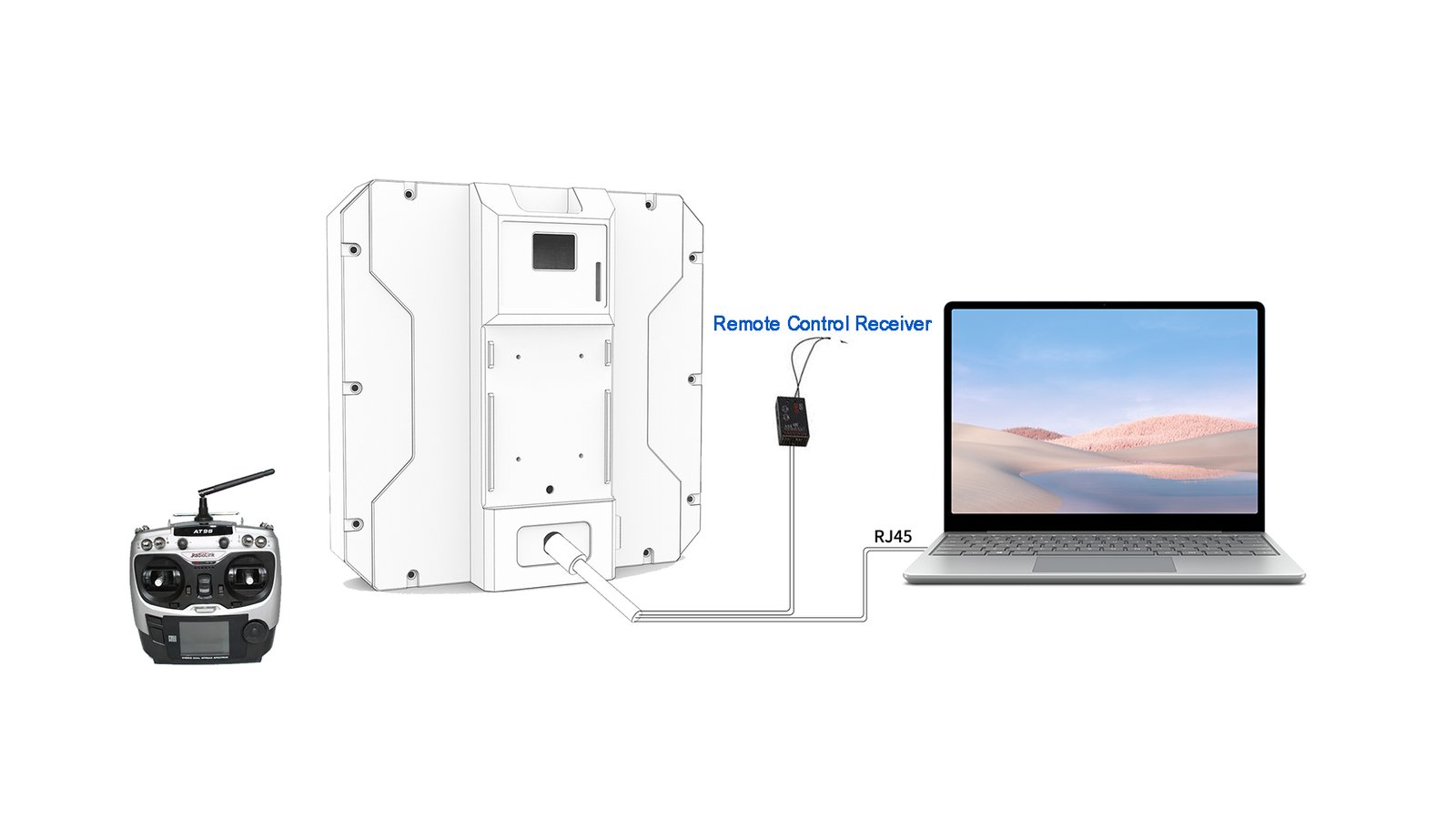

The 22km 55km Wireless Data Link receiving terminal is equipped with a universal battery interface that enables rapid device power-up from standard field batteries. The aviation plug-in cable integrates ground-side network port, serial port, SBUS control channel, and power supply connections into a single ruggedized connector. This integrated interface approach dramatically simplifies cable management and reduces the probability of incorrect connections during high-stress deployment scenarios.
The quick-disconnect aviation connector supports rapid system teardown and redeployment, essential for time-critical operations such as UAV Industrial Solution emergency response missions where every minute of setup time directly impacts operational effectiveness. The dual power supply architecture ensures continuity of operations even if the primary power source becomes compromised.

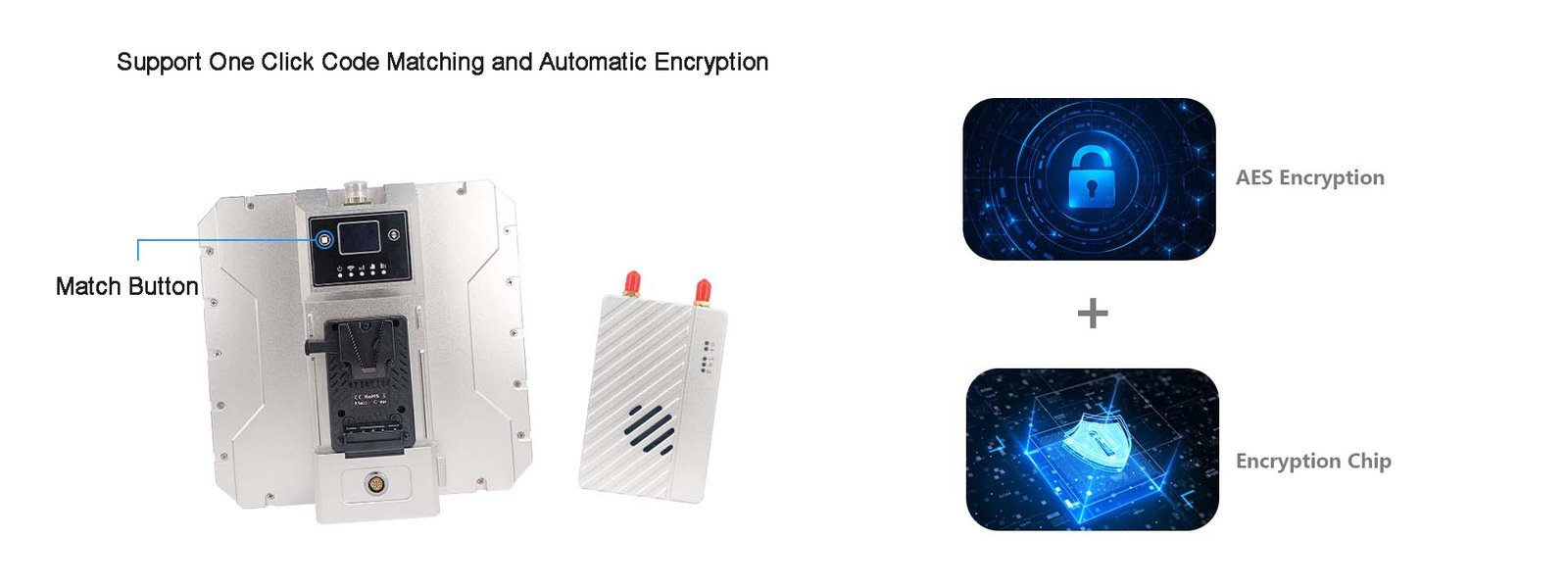

One-Click Code Matching and Automatic Encryption
The 22km 55km Wireless Data Link ground terminal features a dedicated one-click code matching button that achieves fast frequency and code synchronization without requiring additional software configuration or signal scanning procedures. This hardware-level pairing mechanism eliminates the complexity of traditional frequency coordination, enabling operational readiness in seconds rather than minutes.
Automatic encryption is achieved rapidly without any external hardware or software tools. Users can also enable or disable encryption functions through the MaestroAdjust configuration tool or by accessing the built-in web user interface. When encryption is enabled, users can define custom private communication keys that prevent unauthorized interception of video and telemetry data. This security architecture is essential for government, law enforcement, and commercial applications where data confidentiality is a regulatory or contractual requirement.

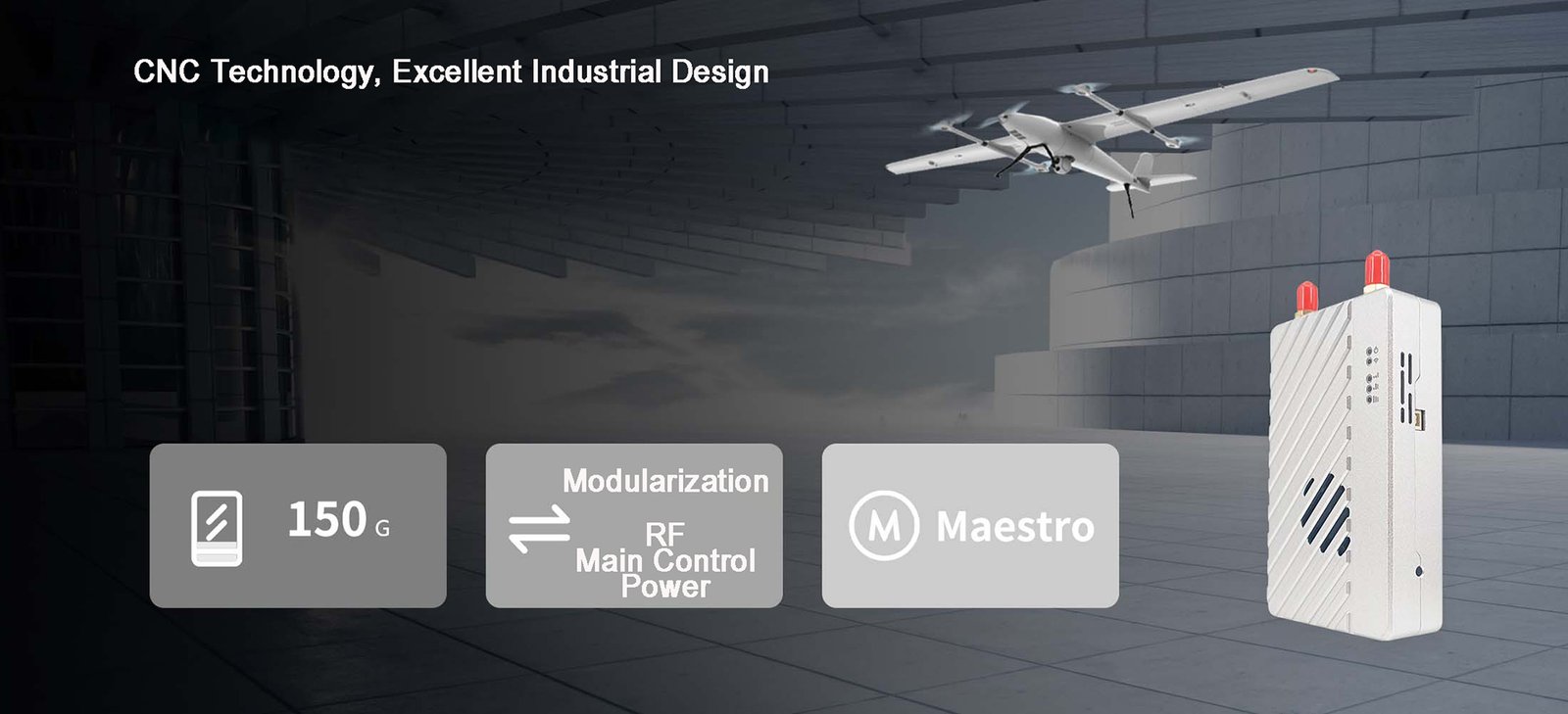

Modular Architecture with Industrial Thermal Design
The SDL MK22/MK55 22km 55km Wireless Data Link continues the Maestro design language while adopting a modular architecture comprising distinct RF module, main control module, and power module subsystems. This modularity supports field maintenance, rapid component replacement, and future upgrade paths without requiring complete system replacement.
The circuit design incorporates industrial-grade components with conservative thermal derating, while the thermal management system employs passive convection and conductive heat spreading to maintain safe operating temperatures across the full environmental envelope. The airborne terminal is particularly compact and lightweight, weighing only 150 grams, allowing the drone to operate without significant payload penalty. This minimal mass contribution improves flight endurance and operational efficiency, particularly for Fixed-wing Platforms where every gram affects range and loiter time.

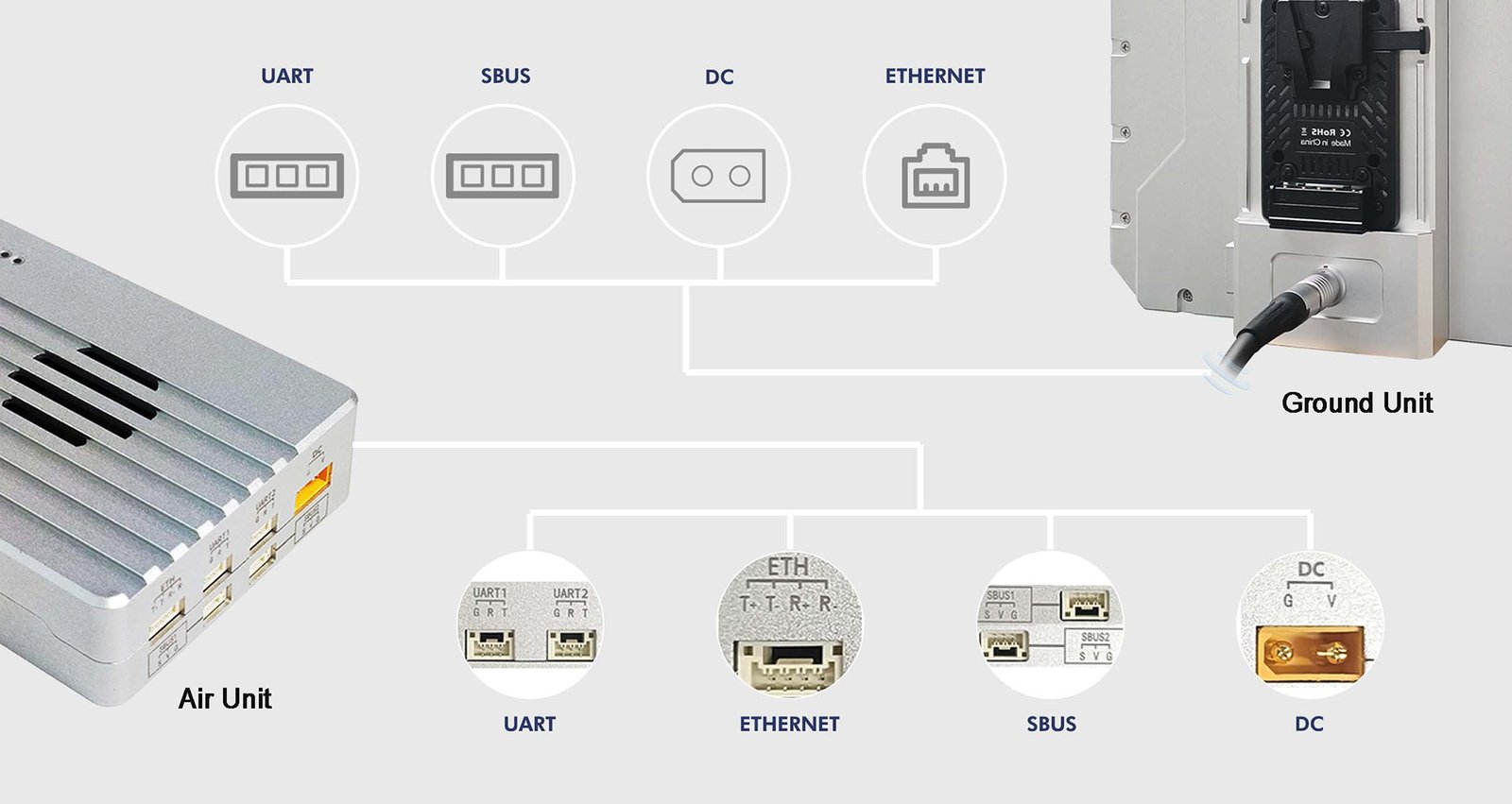

Rich Interface Suite with Configurable Protocols

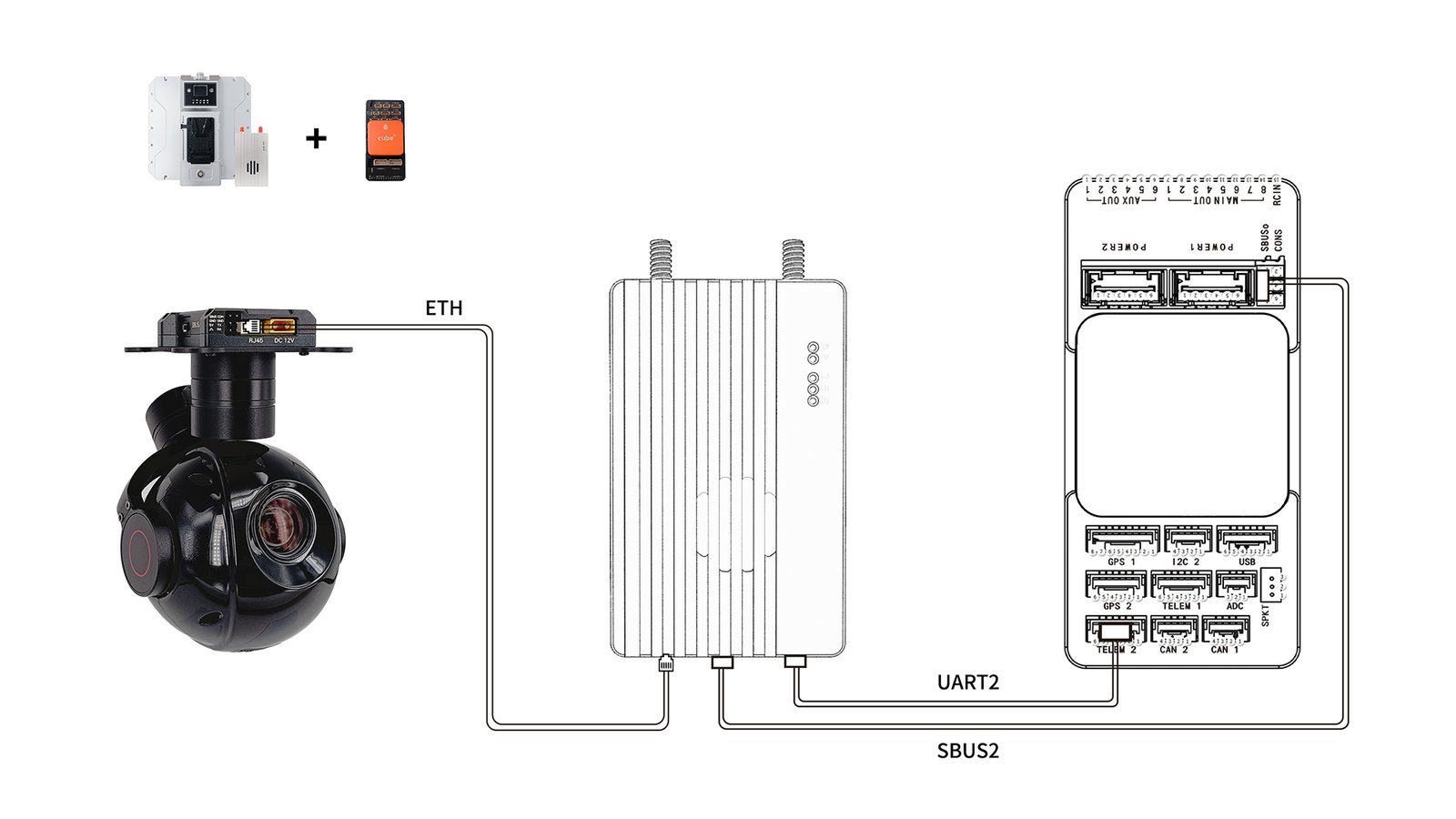

The MK22/MK55 22km 55km Wireless Data Link provides comprehensive connectivity options including two independent serial ports designated UART1 and UART2. Both serial ports support MAVLink protocol for standardized autopilot integration and Transparent protocol for custom or proprietary data streams. Users can configure serial port protocol selection and baud rate parameters through the Maestro Assistant tool or Web UI interface, providing flexibility to match diverse avionics architectures.
Two SBUS input and output interfaces are available for remote control signal transmission and payload device control. These interfaces can route pilot commands to the aircraft control surfaces while simultaneously controlling gimbal orientation, camera functions, or other payload actuators. The rich interface complement makes the MK22/MK55 compatible with the majority of professional-grade flight controllers, gimbal systems, and mission computers available in the unmanned systems market.

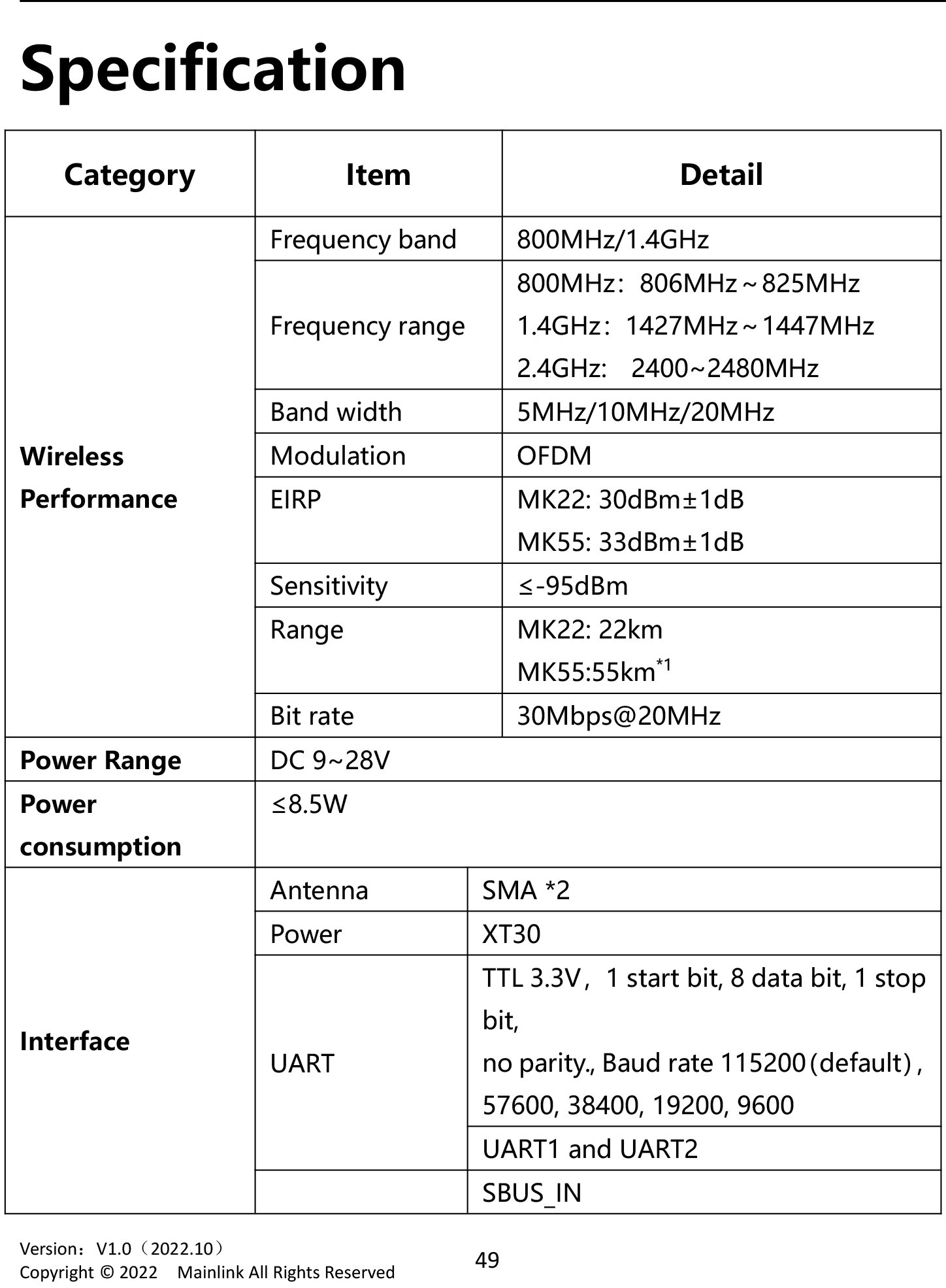

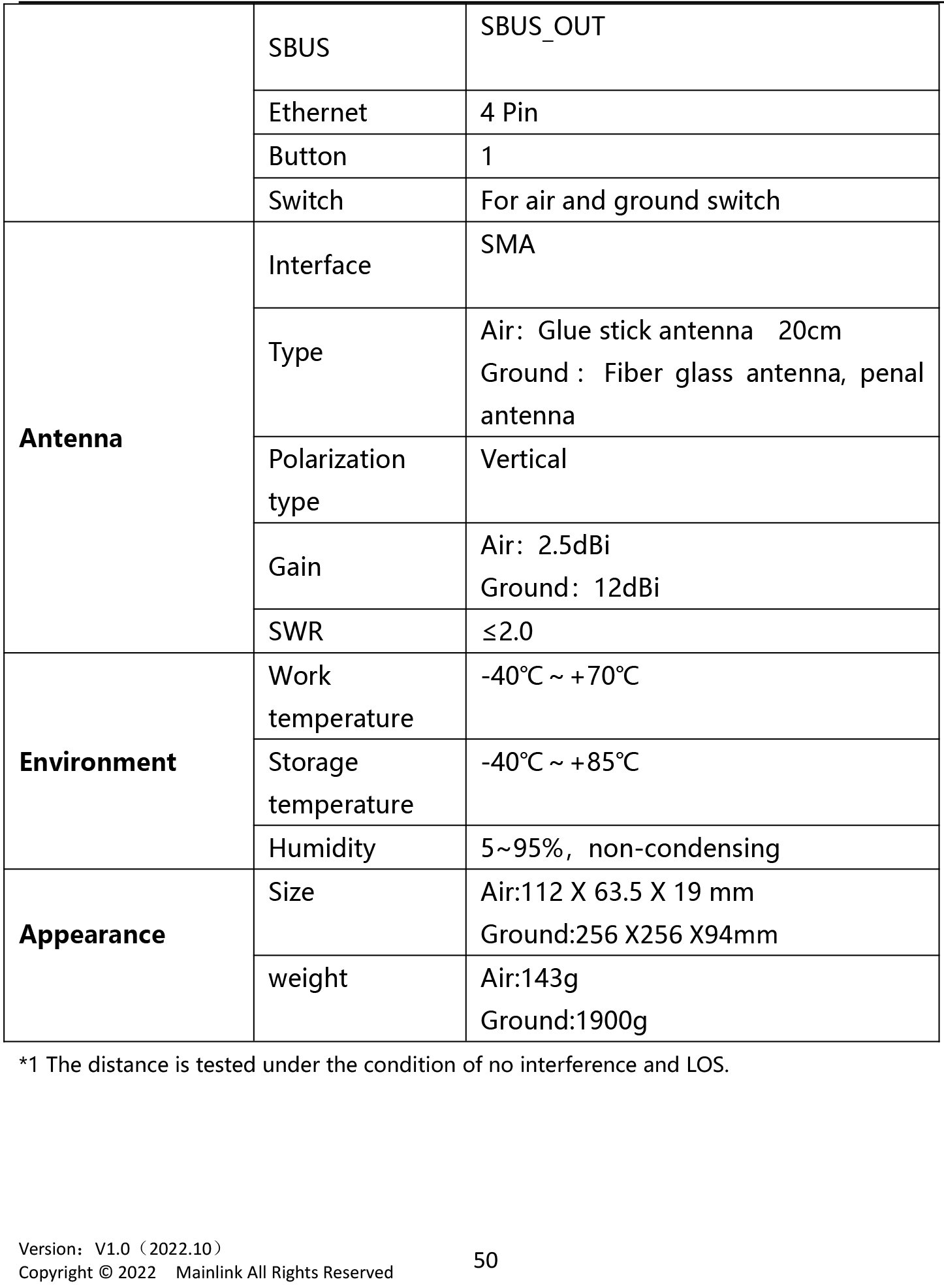

Technical Specifications of SoarApex 22km 55km Wireless Data Link
The MK22 22km 55km Wireless Data Link variant delivers 22-kilometer reliable transmission range under line-of-sight conditions, while the MK55 extends this capability to 55 kilometers for extreme long-range missions. Both variants share the same integrated architecture, dual-antenna configuration, OLED display, and comprehensive interface suite, with the primary differentiation being RF power amplification and antenna gain optimization for the extended-range variant.
The MK22/Mk55 22km 55km Wireless Data Link Key performance parameters include:
- – Transmission Range: 22 km (MK22) / 55 km (MK55) LOS
- – Integration Level: Five-in-one ground terminal
- – Antenna Configuration: Flat panel directional plus omnidirectional fiberglass
- – Display: Integrated OLED with signal strength and quality metrics
- – Power Supply: Dual-mode with universal battery and aviation connector
- – Pairing: One-click hardware code matching
- – Encryption: Automatic with user-configurable private keys
- – Airborne Mass: 150 grams
- – Serial Ports: 2x UART with MAVLink and Transparent protocol support
- – Control Interfaces: 2x SBUS input/output
- – Configuration: Maestro Assistant tool and Web UI
SoarApex MK22/MK55 22km 55km Wireless Data Link Project Applications
The MK22/MK55 22km 55km Wireless Data Link is deployed across multiple unmanned system disciplines requiring reliable long-range communication:
- – Long-Endurance Surveillance: Extended-range video and telemetry for border patrol and perimeter monitoring
- – Infrastructure Inspection: Real-time HD video feedback for power transmission line and pipeline assessment over vast geographic areas
- – Search and Rescue: Wide-area search operations requiring continuous connectivity beyond 20 kilometers
- – Agricultural Monitoring: Large-scale crop health assessment and precision spraying coordination
- – Scientific Research: Atmospheric sampling and environmental monitoring across extended transects
- – Emergency Response: Rapid deployment communication infrastructure for disaster assessment and coordination
- – Military and Defense: Secure encrypted communication for tactical unmanned systems
For integration support, custom protocol development, or volume pricing inquiries, please contact our engineering team.
