ATS20 Professional Industrial UAV Antenna Tracking System — BVLOS Automatic Directional Gimbal with Advanced State Perception for Long-Range Drone Operations
Industrial UAV Antenna Tracking System Product Overview:
The SoarApex ATS20 Industrial UAV Antenna Tracking System is a professional-grade UAV Antenna Tracking System engineered for beyond-visual-line-of-sight (BVLOS) missions requiring reliable long-range communication. This fully automatic directional antenna gimbal dynamically optimizes the image transmission link by continuously monitoring signal strength across both omnidirectional and directional antennas in real-time, automatically switching to the optimal RF path to maintain uninterrupted connectivity.
The ATS20 UAV Antenna Tracking System is portable, rapidly deployable, and adaptable to both fixed-site installations and mobile platforms — delivering the communication reliability essential for professional drone operations across inspection, search-and-rescue, and surveillance missions.
The ATS20 Industrial UAV Antenna Tracking System represents a significant advancement in ground station autonomy. Unlike conventional tracking systems that require manual calibration and constant operator oversight, the ATS20 achieves fully automatic tracking through integrated satellite/inertial combination navigation — precisely perceiving its own position, attitude, and velocity to maintain accurate antenna alignment with airborne assets. This autonomous capability transforms the ATS20 from a passive antenna mount into an intelligent communication node that actively ensures link stability throughout the entire mission profile.
The ATS20 Industrial UAV Antenna Tracking System is the critical communication infrastructure for Fixed-wing Platforms conducting extended corridor inspections, Multi-rotor Drones performing precision agriculture and mapping, and any mission requiring Long Range UAV Data Link connectivity. For command-and-control integration, pair with our UAV Control Station Terminal System, for all-day field operations deploy with our UAV Industrial Power Solution, and for comprehensive fleet deployment explore our UAV Industrial Solution services.
Industrial UAV Antenna Tracking System Core Specifications
- Tracking Method: Fully automatic antenna tracking with real-time signal optimization
- Navigation System: Satellite/inertial combination navigation for state perception
- Gimbal Range: 360° continuous horizontal rotation, 180° vertical pitch adjustment
- Tracking Algorithm: Overhead flight optimization for zenith passage
- Self-Stabilization: Active gimbal stabilization for mobile platform operations
- Protection Rating: IP65 (dust-tight and protected against water jets)
- Deployment Time: Operational within 1 minute from transport case
- Transport: Aviation-standard portable transport case included
- Platform Compatibility: Adaptable to all UAV types and flight control systems
- Mobile Mounting: Compatible with vehicles, vessels, and temporary installations
Advanced System Architecture of Industrial UAV Antenna Tracking System
1. Intelligent Dual-Antenna Signal Optimization

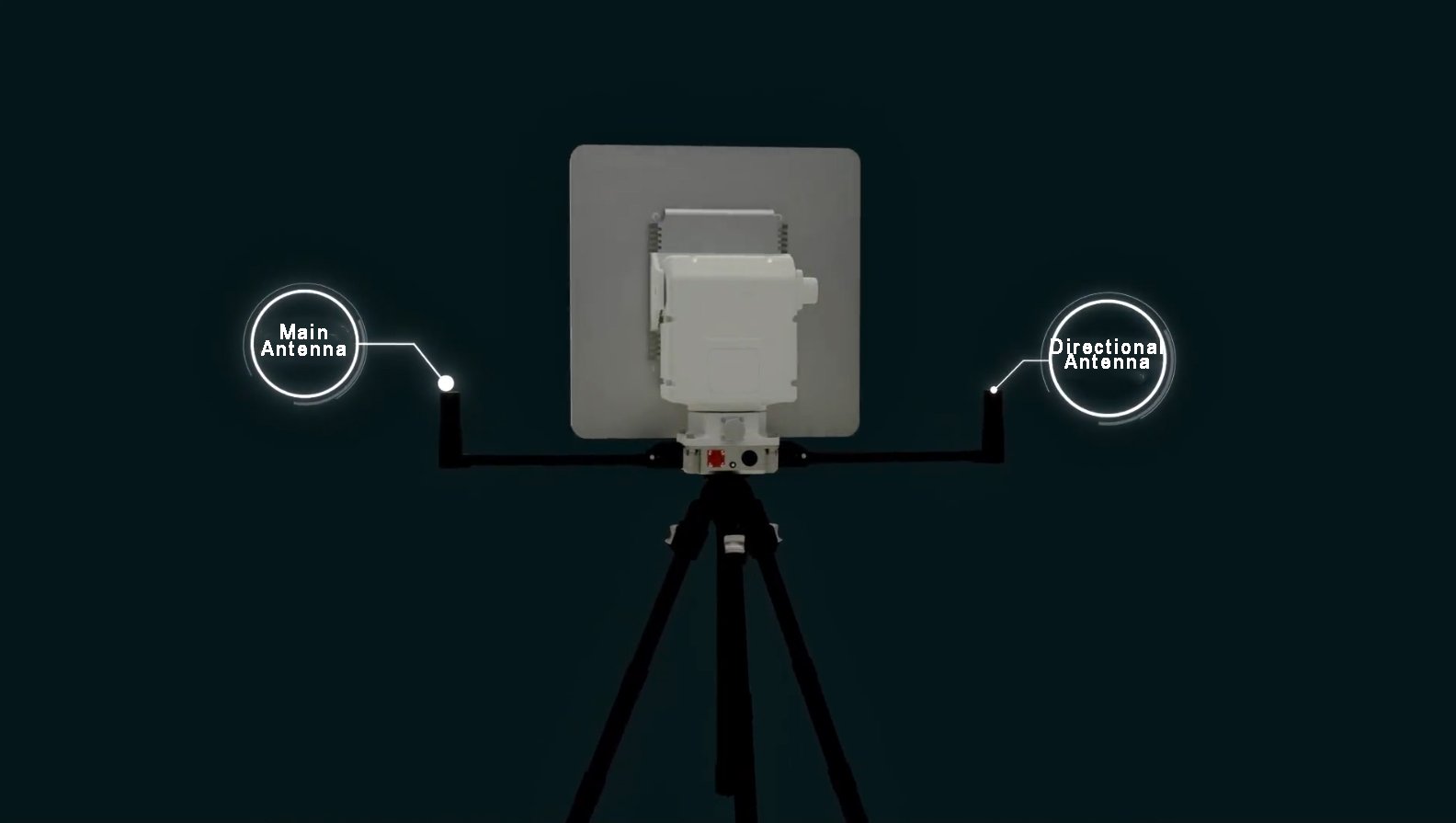

The ATS20 UAV Antenna Tracking System continuously monitors signal strength from both the omnidirectional antenna and the directional antenna in real-time. The intelligent switching algorithm dynamically selects the optimal transmission path based on current RF conditions, aircraft position, and environmental factors.
When the aircraft is within close range or maneuvering aggressively, the omnidirectional antenna provides reliable coverage without pointing constraints. As the aircraft extends to longer ranges, the system seamlessly transitions to the high-gain directional antenna, maximizing signal strength and data throughput. This dual-antenna optimization ensures consistent link quality across the full operational envelope — from takeoff and landing to extended-range transit and overhead flight patterns.
2. Advanced State Perception Navigation
The ATS20 Industrial UAV Antenna Tracking System integrates a satellite/inertial combination navigation system internally, enabling precise perception of its own position, attitude, and velocity in three-dimensional space. Unlike tracking systems that rely solely on GPS coordinates from the aircraft, the ATS20 understands its own orientation and movement dynamics — whether mounted on a stationary tripod, a moving vehicle traversing rough terrain, or a maritime vessel pitching in swell.
This self-awareness enables the system to calculate accurate pointing vectors that compensate for platform motion, ensuring the directional antenna remains precisely aligned with the UAV even when the ground station itself is in motion. The combination of satellite positioning and inertial measurement delivers robust tracking performance in GPS-challenged environments where conventional systems would lose accuracy.
3. Self-Stabilizing Gimbal for Mobile Operations
The ATS20 Industrial UAV Antenna Tracking System features a self-stabilizing gimbal mechanism that provides 360° continuous adjustment in the horizontal direction and 180° adjustment in pitch — completely freeing operators from manual pointing tasks. During vehicle-mounted or maritime operations, the gimbal actively compensates for platform motion, vibration, and attitude changes, maintaining stable antenna alignment with the aircraft.
This self-stabilization capability is essential for mobile inspection missions where the ground station must maintain connectivity while the host platform is in motion — such as pipeline inspection vehicles traversing service roads, maritime patrol vessels conducting coastal surveillance, or rapid-response units relocating to maintain optimal geometry with the aircraft.
4. Overhead Flight Algorithm Optimization
A significant challenge for antenna tracking systems occurs when aircraft fly directly overhead — the rapid azimuth rotation required to track through zenith can cause mechanical stress and temporary signal loss in conventional systems. The ATS20 incorporates specialized overhead flight algorithm optimization that anticipates and smoothly manages zenith passages. When the aircraft approaches the overhead position, the algorithm pre-positions the gimbal and executes a coordinated azimuth/pitch maneuver that maintains continuous tracking without the violent rotation common in legacy systems. This optimization ensures uninterrupted communication during critical flight phases such as landing approaches, takeoff patterns, and loiter maneuvers directly above the ground station.
5. IP65 All-Weather Protection
The ATS20 UAV Antenna Tracking System is engineered to IP65 protection standards, providing complete dust ingress protection and resistance to water jets from any direction. This all-weather capability ensures reliable operation in challenging environmental conditions including desert dust storms, tropical downpours, and coastal salt spray. The sealed enclosure protects internal electronics, motors, and sensors from environmental degradation — extending operational lifespan and reducing maintenance requirements for field-deployed units. Whether positioned at a permanent monitoring station or deployed for emergency response in adverse weather, the ATS20 maintains communication integrity when operators need it most.
6. Rapid Deployment from Aviation Transport Case
The ATS20 Industrial UAV Antenna Tracking System is delivered in a portable transport case built to aviation transportation standards, ensuring safe transit and rapid field deployment. The integrated design enables transition from transport case to fully operational status within one minute — a critical capability for time-sensitive missions such as emergency response, disaster assessment, and rapid deployment surveillance. The quick-setup procedure eliminates complex assembly steps and calibration routines, allowing operators to establish communication links immediately upon arrival at the operational site. This rapid deployment architecture transforms the ATS20 into a tactical asset that can be repositioned quickly as mission requirements evolve.
7. Datalink Blind Zone Detection

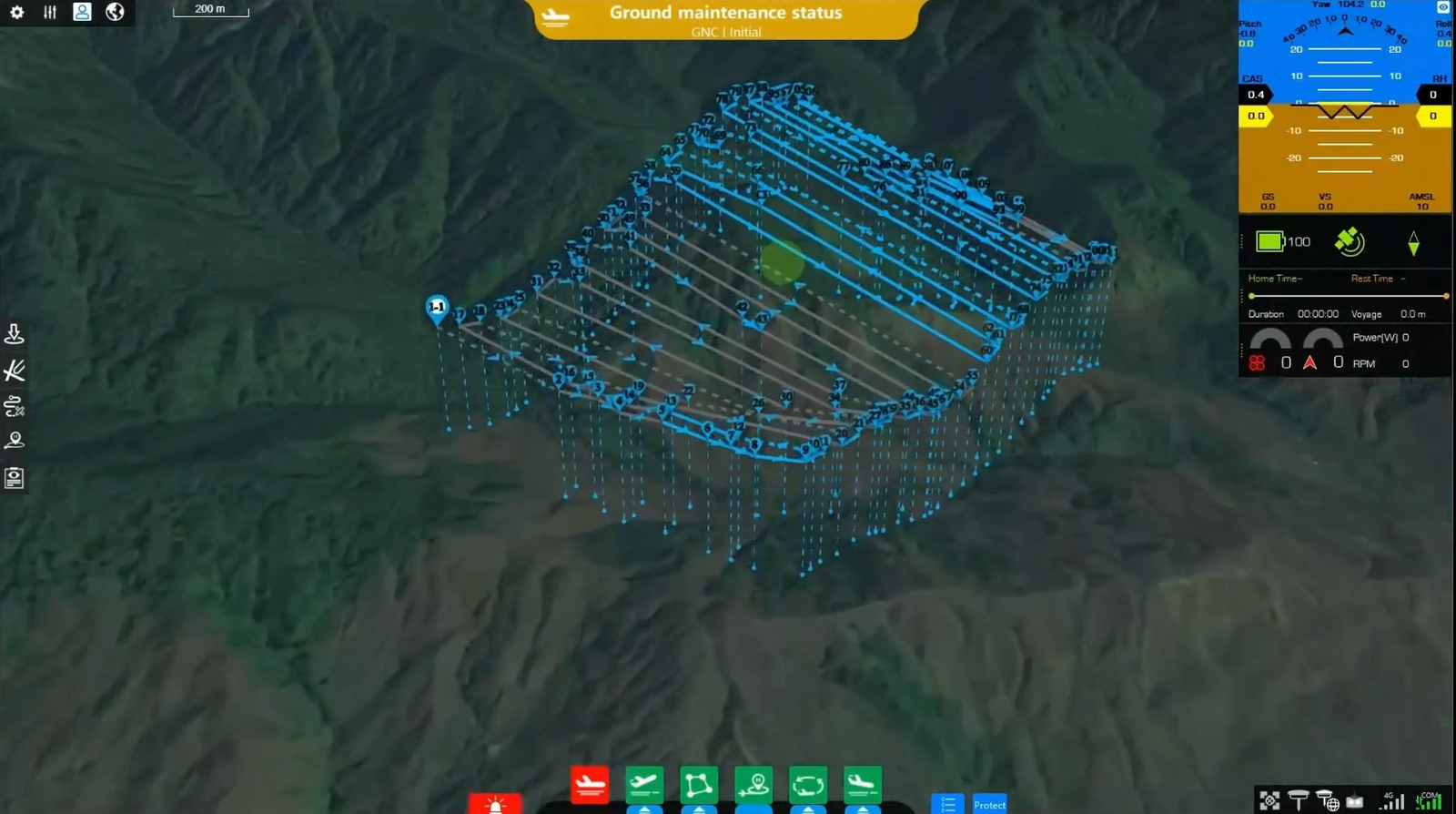

The ATS20 Industrial UAV Antenna Tracking System, in conjunction with 3D terrain mapping capability, achieves communication blind zone detection for mission planning and real-time situational awareness. The system automatically marks identified communication blind zones in the current operational area as gray regions on the mission display — providing operators with visual indication of areas where terrain, buildings, or other obstacles may obstruct the RF link. This predictive capability enables proactive mission planning that avoids communication dead zones, ensuring continuous connectivity throughout the flight profile and reducing the risk of link loss during critical mission phases.
8. Efficient Interaction Interface
The ATS20 Industrial UAV Antenna Tracking System features an efficient interaction interface designed for intuitive operation under field conditions. The control status display provides at-a-glance indication of tracking performance, signal strength, and system health. Rapid mode switching enables operators to transition between tracking profiles optimized for different mission types — from high-agility multi-rotor tracking to smooth fixed-wing following. Keyboard shortcut operations support rapid response in exceptional situations, allowing operators to execute emergency procedures without navigating complex menu structures. This interface design prioritizes operational efficiency, ensuring that operators maintain focus on mission execution rather than system management.
I/O & Connectivity of Industrial UAV Antenna Tracking System
- RF Interface: Omnidirectional and directional antenna ports
- Network Interface: Standard Ethernet for ground station integration
- Power Input: Compatible with AC and DC power sources
- Data Interface: Support for telemetry and video stream transmission
- Mounting Interface: Tripod, vehicle mount, and vessel mount compatible
- Transport Case: Aviation-standard protective case with custom foam inserts
Industrial UAV Antenna Tracking System Software Ecosystem & Compatibility
The ATS20 UAV Antenna Tracking System is fully compatible with:
- Mavlink Protocol: Seamless integration with ArduPilot and PX4 flight control stacks
QGroundControl: Full mission planning and telemetry visualization - Mission Planner: Windows-based comprehensive ground station operations
- AheadX Technology: Native support for QP530 and QP537 reconnaissance drone platforms
- Third-Party Integration: Compatible with all UAV types and flight control products equipped with standard telemetry
- Custom Development: SDK access for OEM-specific application development
Application Scenarios of Industrial UAV Antenna Tracking System
- Power Line & Pipeline Corridor Inspection: Extended-range tracking for linear infrastructure
- Precision Agriculture: Large-scale farmland coverage with consistent link quality
- Search-and-Rescue Operations: Rapid deployment in remote and challenging terrain
- Border & Perimeter Security: Persistent surveillance with mobile ground station capability
- Maritime Patrol & Coastal Monitoring: Vessel-mounted operations in marine environments
- Disaster Response & Emergency Communications: Quick deployment in infrastructure-damaged areas
- Wildlife Conservation & Anti-Poaching: Extended-range observation in protected reserves
- Military & Defense Reconnaissance: Secure, reliable communication in contested environments
- BVLOS Commercial Delivery: Extended-range tracking for drone logistics corridors
- Scientific Research & Environmental Monitoring: Long-duration missions requiring sustained links
What’s in the Box?
- ATS20 Industrial UAV Antenna Tracking System gimbal unit ×1
- Omnidirectional antenna ×1
- Directional antenna ×1
- Aviation-standard transport case ×1
- Tripod mounting kit ×1
- Vehicle/vessel mounting adapter ×1
- Power supply unit ×1
- Quick start guide ×1
Why Choose the ATS20 Industrial UAV Antenna Tracking System?
The ATS20 Industrial UAV Antenna Tracking System delivers professional-grade autonomous tracking capabilities that transform limited-range drone operations into true BVLOS missions:
- Fully Automatic Tracking: No manual pointing or calibration required
- Dual-Antenna Optimization: Intelligent switching between omni and directional antennas
- Advanced State Perception: Satellite/inertial navigation for self-aware tracking
- Self-Stabilizing Gimbal: 360° horizontal, 180° pitch with active motion compensation
- Overhead Algorithm: Smooth zenith passage without signal interruption
- IP65 Protection: All-weather operation in dust, rain, and marine environments
- 1-Minute Deployment: Operational from transport case in 60 seconds
- Blind Zone Detection: 3D terrain mapping for proactive communication planning
- Mobile Platform Ready: Vehicle and vessel mounting with vibration compensation
- Efficient Interface: Intuitive controls with keyboard shortcuts for emergency operations
- Universal Compatibility: Adaptable to all UAV types and flight control systems
For technical inquiries, custom integration requirements, or volume pricing for fleet deployment, contact us at info@soarapex.com.
