Autel SAT45 Professional UAV Antenna Transmission System — 28-Mile Smart Base Station for BVLOS Long-Range Drone Operations
UAV Antenna Transmission System Product Overview:
The Autel SAT45 UAV Antenna Transmission System is a professional-grade UAV Antenna Transmission System engineered for beyond-visual-line-of-sight (BVLOS) missions and ultra-long-range unmanned aerial operations. This intelligent smart antenna base station integrates three antennas — directional, omnidirectional, and RTK positioning — into a single lightweight, man-portable unit that delivers up to 28 miles of transmission range with 70 Mbps data throughput. Designed for seamless integration with Autel Robotics’ Dragonfish series and compatible ecosystem products, the SAT45 UAV Antenna Transmission System limited-range drone operations into true long-distance missions with enhanced wireless signal reception, superior anti-interference security, and centimeter-level positioning accuracy.
The SAT45 UAV Antenna Transmission System represents a paradigm shift in ground station architecture, consolidating multiple RF subsystems into one rapidly deployable platform. Its intelligent antenna switching algorithm continuously monitors signal quality in real-time, automatically selecting the optimal antenna configuration to maintain the strongest possible connection as the aircraft maneuvers across the operational area. This autonomous optimization eliminates manual intervention while maximizing link stability — a critical capability for professional missions where communication integrity directly impacts mission success and operational safety.
The SAT45 UAV Antenna Transmission System is the essential range-extension component for Fixed-wing Platforms conducting extended corridor inspections, Multi-rotor Drones performing large-area mapping, and any mission requiring Long Range UAV Data Link connectivity. For command-and-control integration, pair with our UAV Control Station Terminal System, and for comprehensive fleet deployment, explore our UAV Industrial Solution services.
Core Specifications of UAV Antenna Transmission System
- Transmission Range: Up to 28 miles (45 kilometers)
- Data Throughput: Up to 70 Mbps (MIMO mode, within 6.2 miles)
- Battery Architecture: Built-in dual battery system
- Battery Life: Up to 15 hours continuous operation
- Battery Design: 30-second quick-release for hot-swapping
- Tracking Method: Dual-antenna high-precision automatic tracking
- RTK Positioning: Dual RTK modules for centimeter-level accuracy
- Protection Rating: IP54 (all-weather operation)
- Portability: Lightweight, man-packable design
- Deployment: Rapid setup and takedown for mobile operations
- Platform Compatibility: Autel Dragonfish Lite, Standard, and Pro
UAV Antenna Transmission System Advanced System Architecture
1. Triple-Antenna Intelligent Switching System
The SAT45 UAV Antenna Transmission System integrates three distinct antenna systems into a unified base station architecture. The aircraft continuously monitors signal strength with the base station in real-time, and the intelligent switching algorithm automatically transitions between antennas to maintain the strongest possible connection throughout the mission profile. When operating through the high-gain directional antenna, the system achieves the maximum 28-mile transmission range at speeds up to 70 Mbps. In MIMO configuration within 6.2 miles, the full 70 Mbps throughput is available for bandwidth-intensive applications such as 4K video streaming and high-rate telemetry. This intelligent antenna management ensures that operators always benefit from the optimal link configuration without manual intervention or technical expertise.
2. Dual-Antenna High-Precision Tracking
The SAT45 UAV Antenna Transmission System achieves highly precise antenna tracking through a dual-antenna architecture that combines the benefits of directional and omnidirectional reception. The omnidirectional antenna provides continuous signal acquisition regardless of aircraft orientation, ensuring that the tracking system never loses lock even during aggressive maneuvers or rapid heading changes. Simultaneously, the directional antenna focuses RF energy into a high-gain beam aimed precisely at the aircraft, maximizing signal strength and data throughput. This dual-antenna approach delivers the reliability of omnidirectional coverage with the performance of directional gain — a combination that is essential for maintaining stable connectivity across the full 28-mile operational envelope.
3. Centimeter-Level Positioning with Dual RTK Modules
The SAT45 features built-in dual RTK (Real-Time Kinematic) positioning modules that calculate the relative position between the base station and the aircraft with centimeter-level accuracy. By obtaining the aircraft’s precise location through the RTK correction network and combining this with the base station’s known coordinates, the system can determine the exact pointing vector required for optimal antenna alignment. This capability is particularly valuable in complex operational environments such as dense vegetation, urban canyons, and mountainous terrain where standard GPS positioning may introduce errors that degrade tracking accuracy. The centimeter-level precision ensures that the high-gain directional antenna maintains optimal alignment even when the aircraft operates at low altitudes or in GPS-challenged environments.
4. Long-Duration Dual-Battery Power System

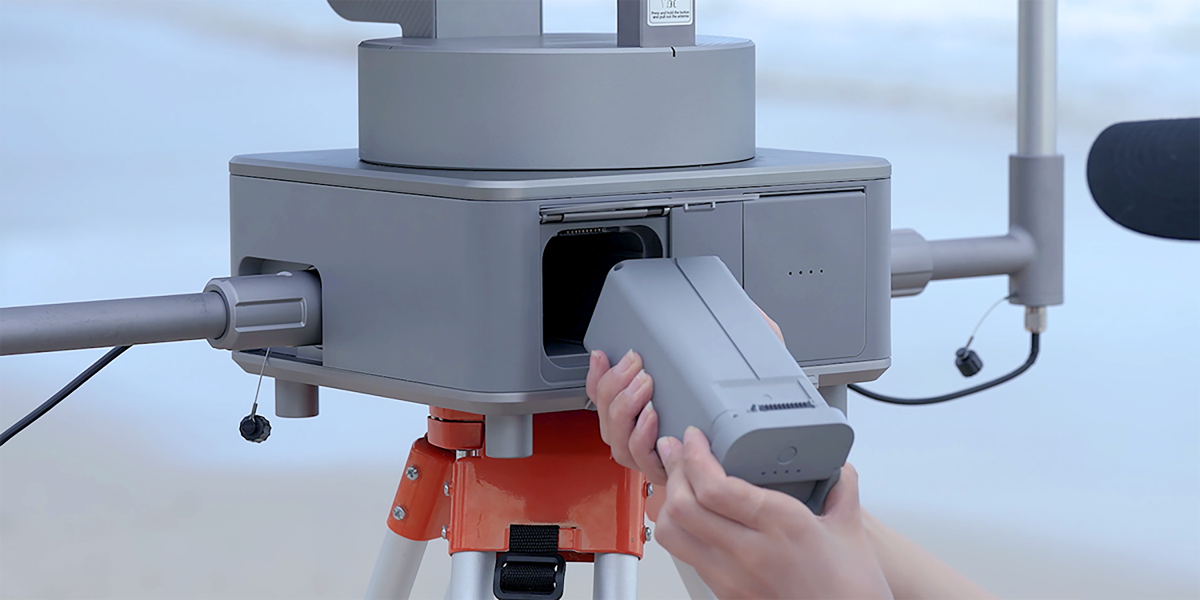

The SAT45 is equipped with a built-in dual battery architecture capable of delivering up to 15 hours of continuous operation — sufficient for multiple sorties or extended persistent surveillance missions without recharging. The innovative 30-second quick-release battery design enables rapid field replacement, allowing operators to maintain continuous coverage through battery rotation without system shutdown. This hot-swappable power architecture eliminates operational downtime during critical missions such as emergency response, border security, and infrastructure monitoring where uninterrupted link availability is mission-critical.
5. Rapid Deployment for Mobile Operations

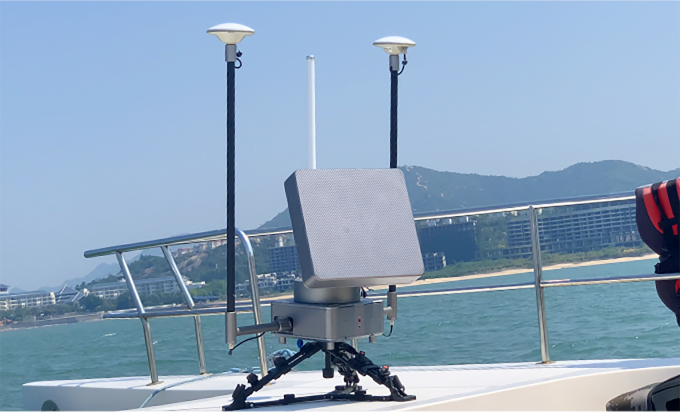

The SAT45 UAV Antenna Transmission System features a lightweight, man-portable design that can be quickly attached to mobile platforms including vehicles, boats, and rapid-response units near operational front lines. The quick setup and takedown capability supports highly mobile operations where the ground station must relocate frequently to maintain optimal geometry with the aircraft or to follow the progression of dynamic mission profiles. This portability transforms the SAT45 from a fixed infrastructure component into a tactical asset that adapts to evolving operational requirements — whether mounted on a survey vehicle traversing pipeline corridors, deployed on a maritime patrol vessel, or positioned at a forward observation post.
I/O & Connectivity of UAV Antenna Transmission System
- Directional Antenna Interface: High-gain panel antenna for maximum range
- Omnidirectional Antenna: 360° signal acquisition for tracking stability
- Dual RTK Antennas: Centimeter-level positioning correction input
- Ethernet Port: Standard network interface for ground station integration
- Wireless Data Link: Seamless integration with Autel Robotics ecosystem
- Power Input: Dual-battery system with quick-release hot-swap capability

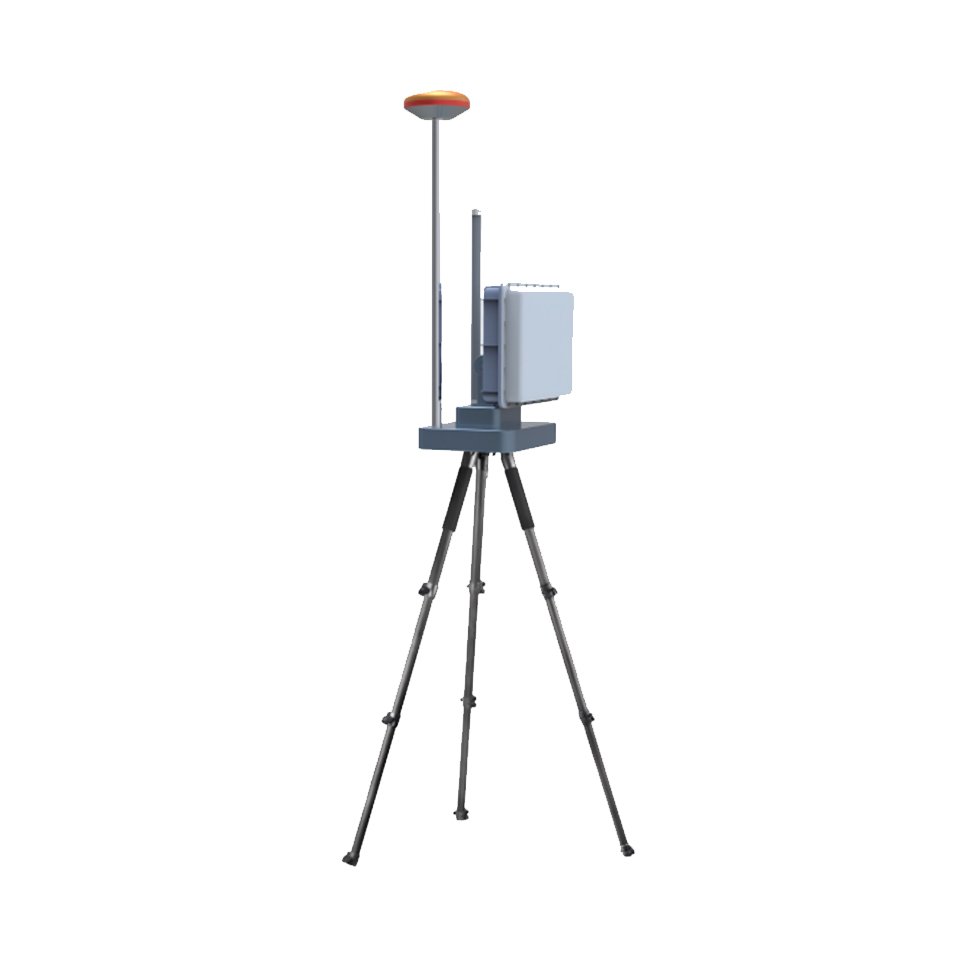

- Mounting Interface: Tripod and vehicle-mount compatible
Software Ecosystem & Compatibility
The SAT45 UAV Antenna Transmission System is fully compatible with:
- Autel Dragonfish Series: Native integration with Dragonfish Lite, Standard, and Pro aircraft
- Autel Ground Control Station: 9.7-inch 1000nit ultra-bright touchscreen with 2048×1536 resolution
- Mission Planner: Windows-based comprehensive ground station operations
QGroundControl: Full mission planning and parameter tuning support
Mavlink Protocol: Standard telemetry and command interface - Custom Integration: SDK access for OEM-specific application development
Autel Ground Control Station Integration

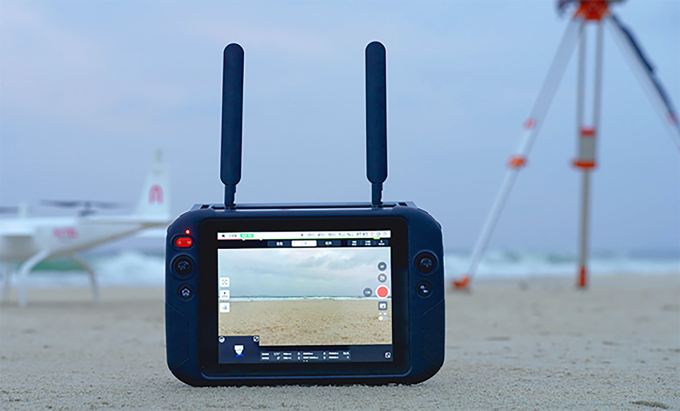

The SAT45 is designed for seamless operation with the Autel Ground Control Station, featuring a 9.7-inch display with 1000 nits peak brightness and 2048×1536 ultra-HD resolution. This screen delivers approximately twice the brightness of conventional smartphones, ensuring exceptional visibility under direct sunlight — a critical requirement for outdoor field operations. The high-resolution display presents detailed telemetry data, high-definition video feeds, and mission planning interfaces with the clarity and precision demanded by professional operators conducting complex BVLOS missions.
Application Scenarios
- Power Line & Pipeline Corridor Inspection: 28-mile range covers extensive linear infrastructure
- Precision Agriculture & Large-Scale Mapping: Consistent link quality across expansive farmland
- Search-and-Rescue & Emergency Response: Rapid deployment in remote disaster areas
- Border & Perimeter Security: Persistent surveillance with 15-hour battery endurance
- Maritime Patrol & Coastal Monitoring: Vehicle and vessel-mounted mobile operations
- Wildlife Conservation & Environmental Monitoring: Long-duration observation in remote habitats
- Telecommunications Infrastructure Assessment: High-altitude tracking for tower inspection
- Disaster Response & Emergency Communications: Communication relay in infrastructure-damaged zones
- BVLOS Commercial Delivery: Extended-range tracking for drone logistics corridors
- Military & Defense Operations: Secure, long-range command and control in contested environments
What’s in the Box?

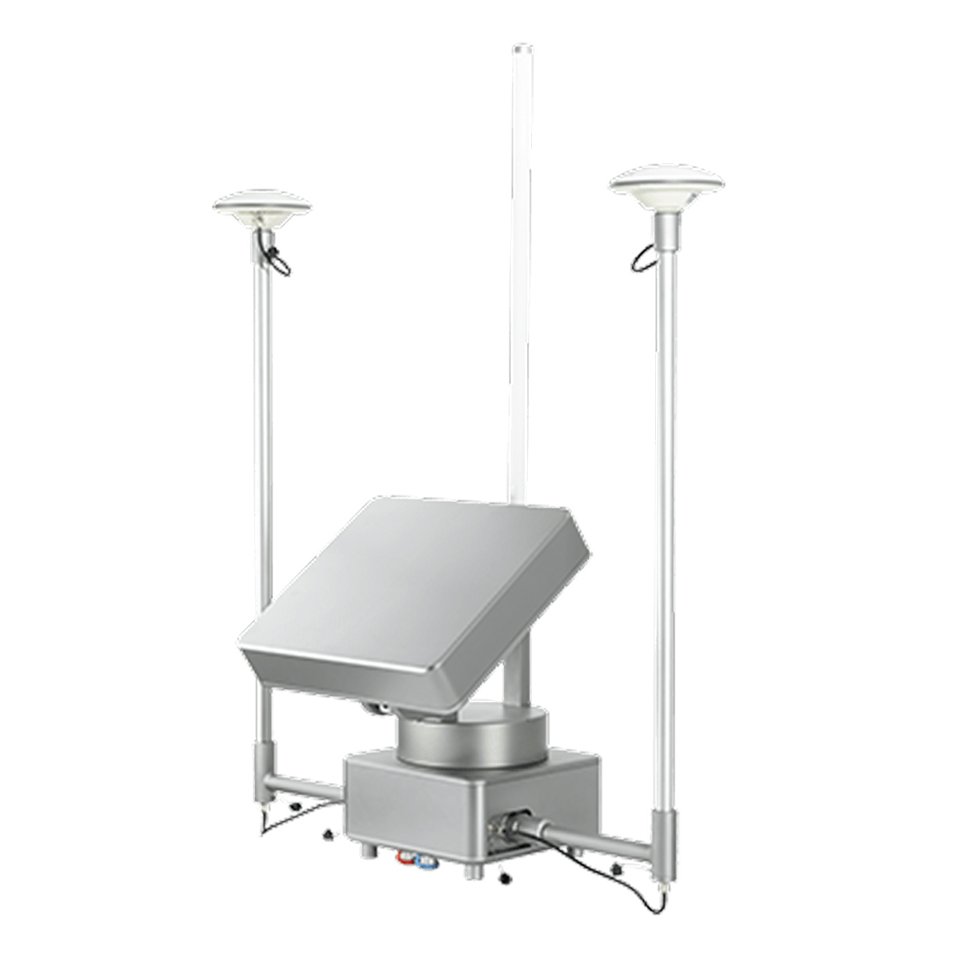

- SAT45 Smart Antenna Transmission System base station ×1
- High-gain directional antenna ×1
- Omnidirectional antenna ×1
- Dual RTK antenna set ×1
- Dual battery pack ×1
- Charging adapter ×1
- Mounting hardware kit ×1
- Quick start guide ×1
Why Choose the SAT45 UAV Antenna Transmission System?
The SAT45 delivers enterprise-grade range extension capabilities that redefine the operational envelope of professional drone systems:
- 28-Mile Transmission Range: Industry-leading distance for BVLOS missions
- 70 Mbps Data Throughput: High-bandwidth link for 4K video and dense telemetry
- Intelligent Antenna Switching: Automatic optimization without operator intervention
- Dual RTK Positioning: Centimeter-level accuracy for precision tracking
- 15-Hour Battery Life: All-day operation with dual-battery architecture
- 30-Second Quick-Release: Hot-swappable batteries eliminate downtime
- IP54 Protection: All-weather deployment in harsh field conditions
- Man-Portable Design: Rapid deployment on vehicles, boats, and mobile units
- Autel Ecosystem Native: Seamless integration with Dragonfish series and GCS
- Dual-Antenna Tracking: Omnidirectional reliability with directional performance
For technical inquiries, custom integration requirements, or volume pricing for fleet deployment, contact us at info@soarapex.com.
