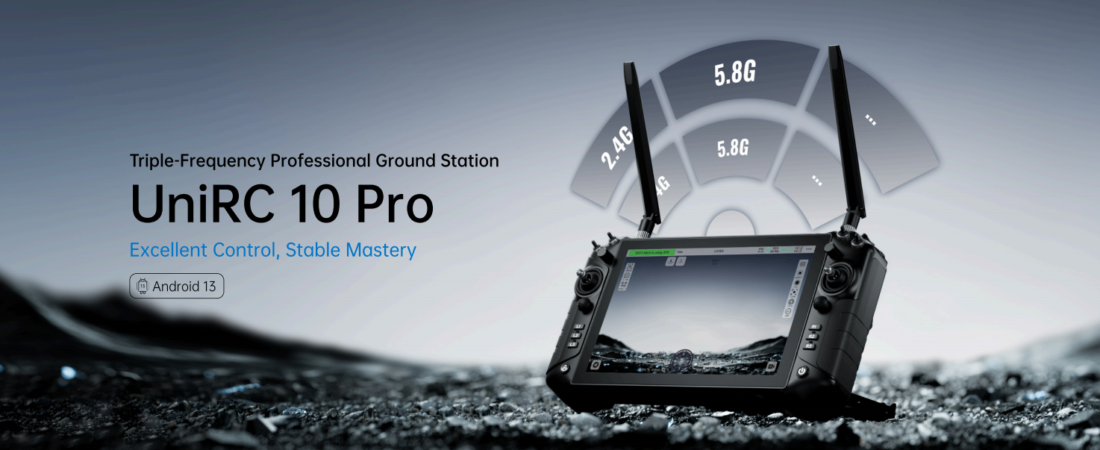

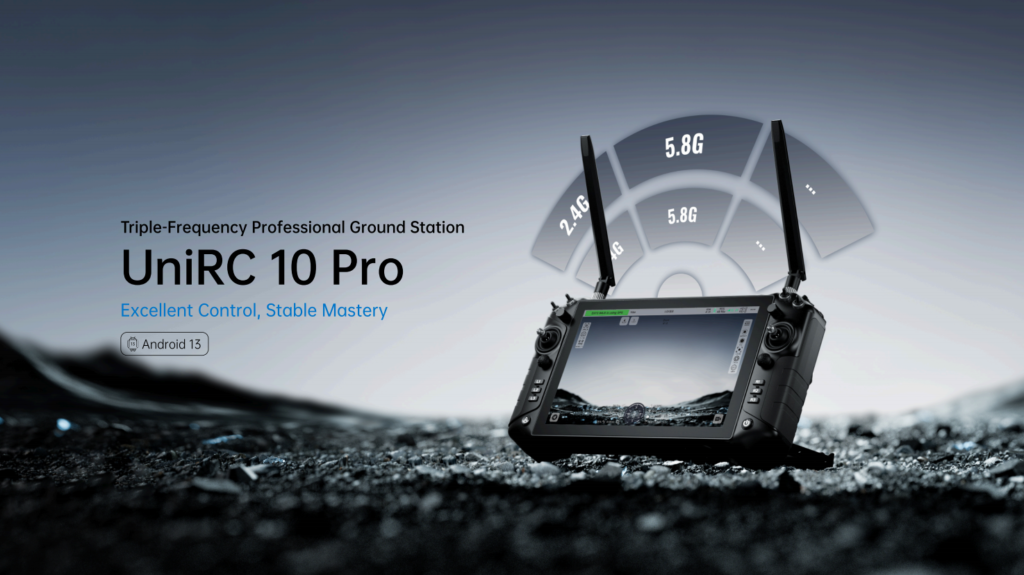

UniRC 10 Professional Triple-Frequency Ground Control Station
The fourth flagship handheld ground control station from SIYI TECH, engineered for professional unmanned operations across multi-rotor UAVs, VTOL fixed-wing platforms, UGVs, USVs, and intelligent robotics.
Why Choose the UniRC 10 Pro?
Built on SIYI’s “Mixed-Source Open Ecosystem,” this professional GCS delivers unmatched control precision, communication stability, and ecosystem compatibility for demanding unmanned missions.
Ultra-Bright 10.1″ HD Display
1920×1200 resolution with 2000nits adaptive brightness eliminates glare in direct sunlight. Supports multi-stream video pulling and detailed telemetry display for professional unmanned devices.
Triple-Frequency Redundancy
Adaptive frequency hopping across configurable single or dual-band combinations. Real-time environmental sensing with dynamic adjustment of frequency, channel, and modulation rate for maximum anti-interference capability.
27 Physical Control Channels
Dual Hall-sensor main joysticks + dual mini joysticks, knobs, dials, metal 3-position switches, and rocker switches. Parallel two-handed operation enables simultaneous multi-payload management.
Hot-Swap Dual-Battery Architecture
Internal + external battery system with PD 65W fast charging and in-use charging capability. Eliminates operational downtime during critical field missions with seamless battery rotation.

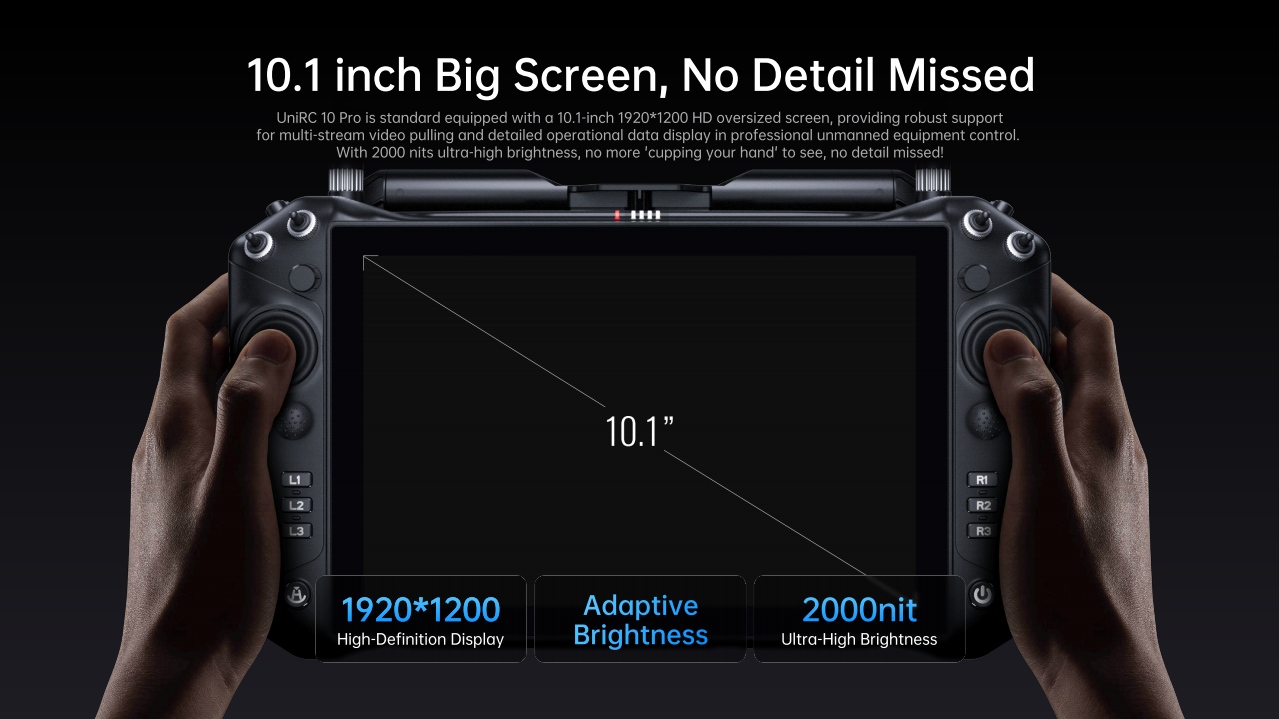

10.1-Inch Sunlight-Readable Display
The largest and brightest screen in SIYI’s handheld GCS lineup. The 1920×1200 HD resolution delivers crisp multi-stream video and comprehensive telemetry dashboards for professional unmanned equipment.
With 2000nits adaptive brightness, operators maintain full situational awareness in direct sunlight—no hand-shading required. Whether monitoring data link telemetry or controlling multi-rotor UAV payloads, every detail remains visible.
- 1920×1200 Full HD resolution
- 2000nits peak brightness
- Multi-stream video support
- Android 13 operating system
Triple-Frequency Redundant Communication
Professional unmanned missions demand unwavering link stability. The UniRC 10 Pro features triple-frequency redundancy with configurable single or dual-band operation modes.
Adaptive frequency hopping dynamically adjusts band, channel, and modulation rate based on real-time RF environment analysis. This delivers superior anti-interference performance, extended communication range, and reliable UAV data link connectivity in challenging electromagnetic environments.
- 2.4GHz / 5.8GHz / X-band configurable
- Adaptive frequency hopping (AFH)
- 65 Mbps transmission bitrate
- AES-encrypted secure channel

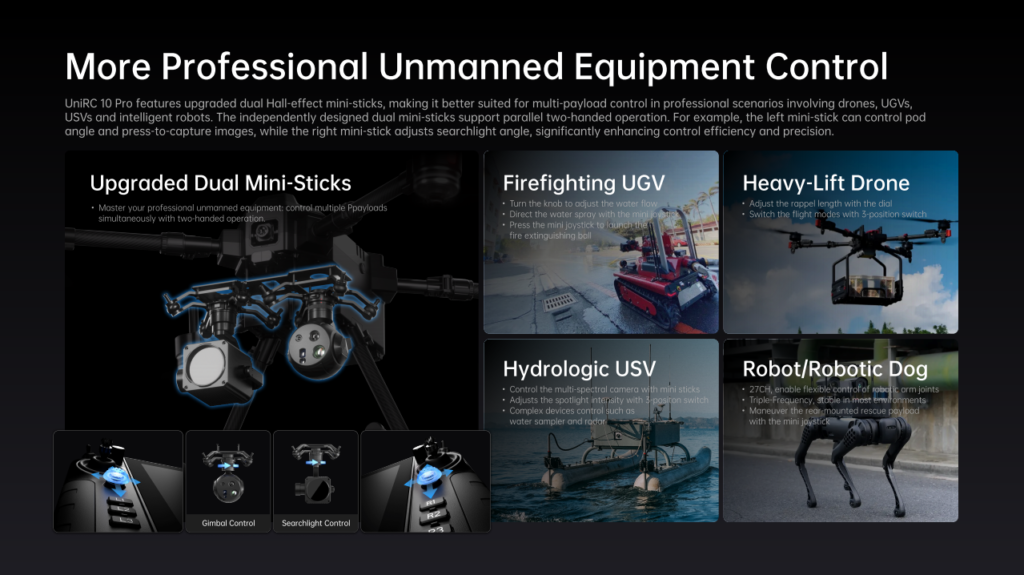

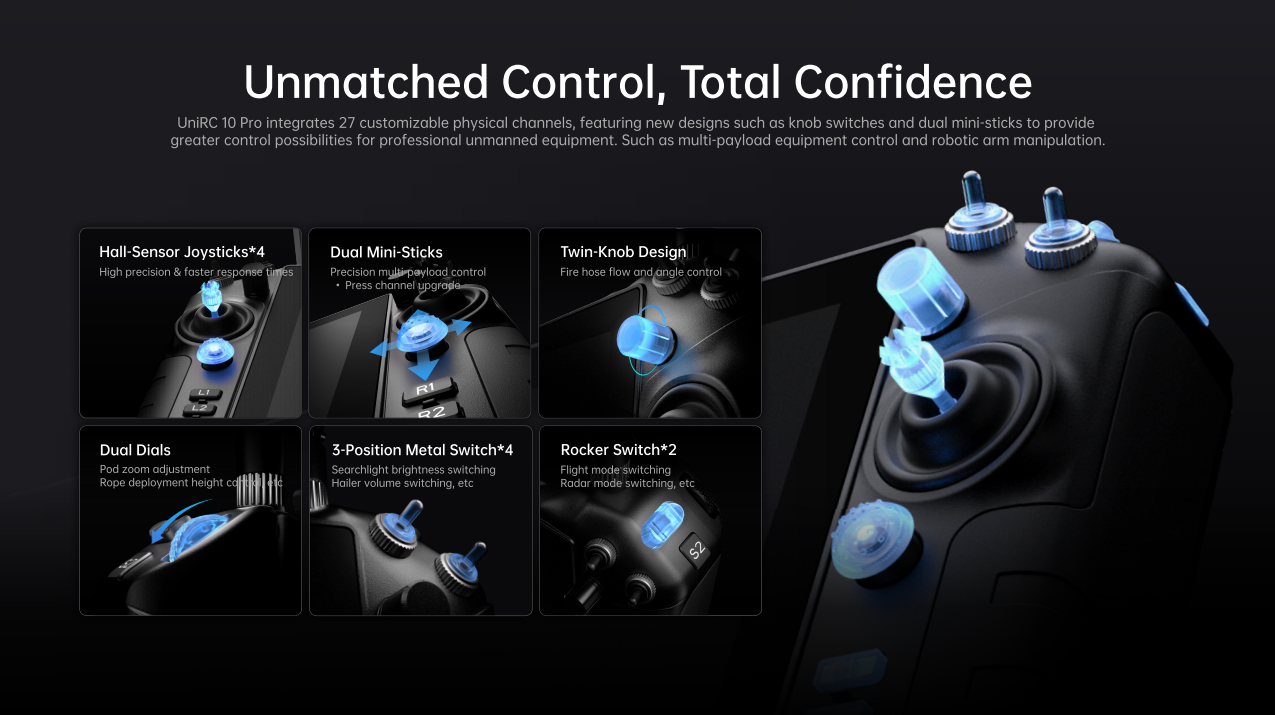

27 Physical Channels for Precision Control
Complex professional payloads—EO/IR gimbals, LiDAR, mapping cameras, water cannons—demand granular control. The UniRC 10 Pro upgrades to 27 customizable physical channels including Hall-sensor main and dual mini joysticks.
Parallel two-handed operation lets operators control gimbal angle and shutter with the left mini joystick while adjusting spotlight or payload orientation with the right—dramatically enhancing mission efficiency and control precision for VTOL fixed-wing platforms and heavy-lift drones.
- 4× Hall-sensor joysticks (2 main + 2 mini)
- Metal 3-position switches & rocker switches
- Knobs and dials for fine adjustment
- Fully customizable channel mapping

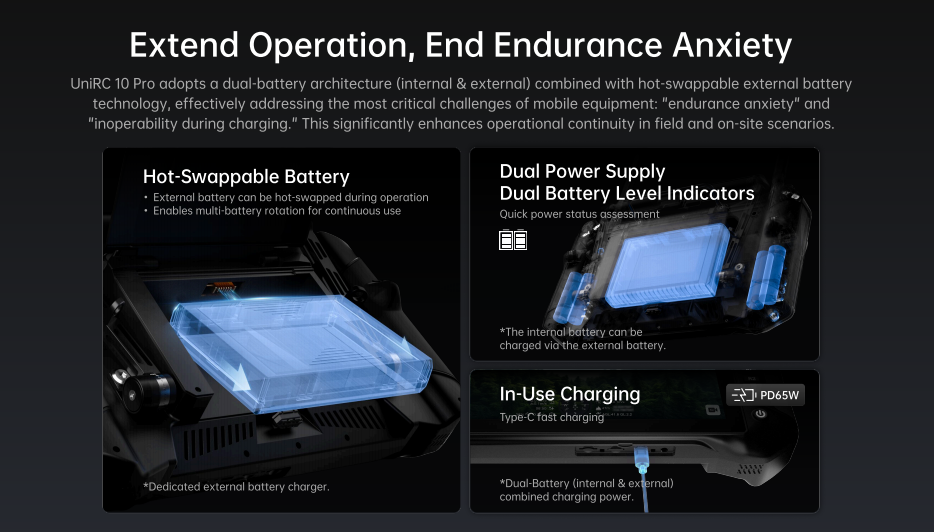

Hot-Swap Power for Uninterrupted Missions
The dual-battery architecture (internal + external) with hot-swap technology eliminates the industry pain points of “range anxiety” and “inoperability during charging.”
Operators can swap external batteries mid-mission without powering down, while PD 65W fast charging supports in-use charging via USB-C. The software interface displays dual battery levels for proactive power management—critical for extended ground station operations in remote field environments.
- Dual-battery hot-swap architecture
- PD 65W USB-C fast charging
- In-use charging capability
- Dual battery level indicators

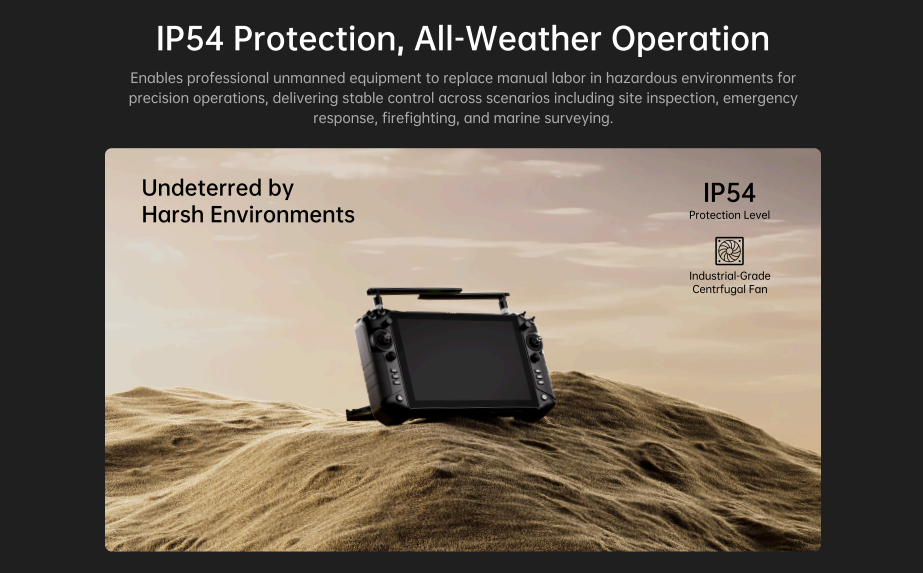

IP54 Rugged Design & Rich I/O
Rated IP54 for dust and water splash resistance, the UniRC 10 Pro thrives in harsh environments from -20°C to 55°C. An industrial centrifugal fan maintains thermal stability, keeping internal temperatures within ~10°C of ambient.

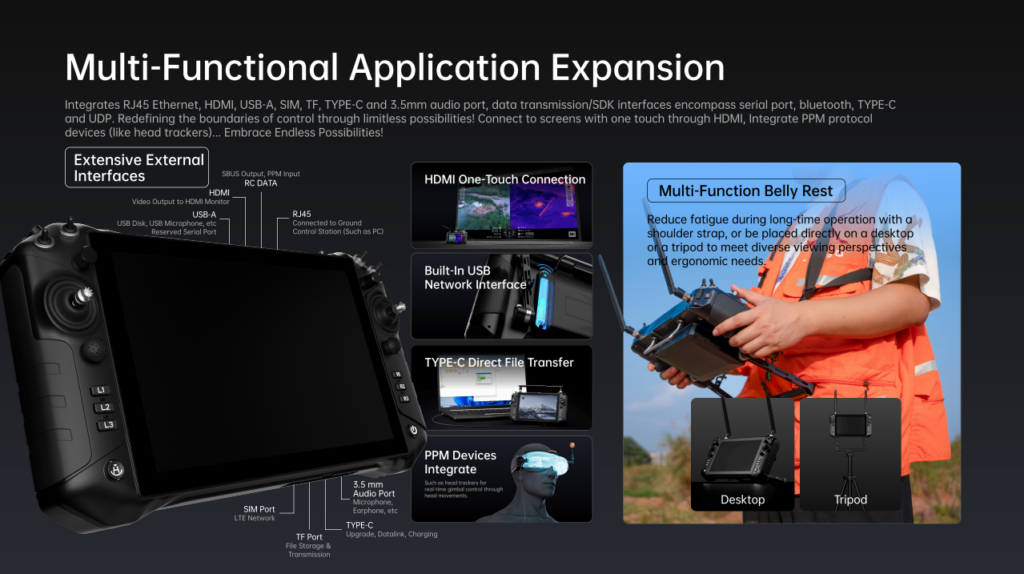

Comprehensive hardware interfaces include RJ45 Ethernet, HDMI, USB-A, USB-C, SIM/TF slots, and 3.5mm audio. SDK interfaces span serial port, Bluetooth, UDP, and more—enabling seamless integration with antenna tracking systems, external displays, and PPM head-tracking devices.
- IP54 all-weather protection
- -20°C to 55°C operating range
- RJ45 / HDMI / USB-A / USB-C / SIM / TF
- Serial / Bluetooth / UDP SDK support
Open Ecosystem Integration
The UniRC 10 Pro leverages SIYI’s mixed-source open ecosystem for rapid deployment with minimal integration overhead.
SIYI Ecosystem
Out-of-the-box compatibility with SIYI gimbals, flight controllers, and propulsion systems. Zero-integration deployment for rapid mission readiness.
MAVLink Protocol
Rapid integration with ArduPilot, PX4, and other MAVLink-based autopilots. Reduces development cycles and accelerates time-to-deployment.
UniGCS Software
Native ground control software enabling flight controller telemetry, gimbal control, propulsion monitoring, and rapid link parameter tuning.
Related SoarApex Systems
Complete your professional unmanned setup with our integrated ecosystem.
External Resources
Authoritative references and official documentation for the UniRC 10 Pro ecosystem.
Official product announcement and technical specifications from SIYI TECHNOLOGY.
Open-source micro air vehicle communication protocol powering the UniRC 10 Pro ecosystem.
Trusted open-source autopilot platform fully compatible with the UniRC 10 Pro GCS.
Professional-grade open-source flight control stack supported by the UniRC 10 Pro.
Comprehensive overview of ground control station technology and applications.
Ready to Upgrade Your Ground Control?
The UniRC 10 Pro triple-frequency professional GCS is available now. Contact SoarApex for pricing, integration support, and ecosystem compatibility verification.
