SoarApex UPS LiFePO4 Portable Power Station System– Industrial UAV Power Solution for Outdoor Long Time Operations
UPS LiFePO4 UAV Power Station System Product Overview:
The SoarApex UPS LiFePO4 UAV Power Station System series delivers robust, mission-critical energy solutions engineered for both industrial UAV operations and residential emergency backup. Featuring continuous output capacities ranging from 1,800W to 4,200W with integrated super AC fast-charging technology, these units combine LiFePO4 battery chemistry with advanced power management systems to ensure reliable, clean energy delivery in the most demanding environments.
Designed with portability at its core, the compact form factor enables rapid deployment across field operations, while intelligent connectivity—via Bluetooth and Wi-Fi—allows remote monitoring and control even when operators are off-site. Whether powering Fixed-wing Platforms during extended survey missions, supporting Multi-rotor Drones for aerial inspection workflows, or serving as a backup for FPV & Specialized Platforms, the SoarApex UPS LiFePO4 UAV Power Station System series provides uninterrupted power assurance.
1. E1800LFP UPS LiFePO4 UAV Power Station System – 1,800W LiFePO4 Battery
The E1800LFP UPS LiFePO4 UAV Power Station System serves as the entry-level powerhouse in the SoarApex lineup, ideal for smaller UAV fleets and light-duty industrial applications. Its AC Pure Sine Wave Inverter delivers clean, grid-quality power essential for sensitive avionics and charging systems.
UPS LiFePO4 UAV Power Station System Key Specifications:
- Rated Power:** 1,800W continuous / 3,000W surge (10ms)
- Battery Capacity:** 1,024Wh (51.2V / 20Ah LiFePO4)
- Output Voltage:** 100V–120V Pure Sine Wave
- Cycle Life:** 3,500+ cycles to 80% depth of discharge
- DC Output:** XT60 20A (12V) – compatible with standard UAV power connectors
- AC Input:** 100V–120V / 1,000W max (80% charge in 1 hour)
- Solar Input:** XT60 port, Voc 11V–60V / 600W max / 20A max
- Charging Time:** 1.3 hours (AC super-fast charging)
- Dimensions:** L14.9 × W9.4 × H10 in
- Weight:** 29 lbs (13.5 kg)
- Operating Temperature:** Charge: -10°C to 45°C; Discharge: -20°C to 45°C
- Smart Control:** Wi-Fi remote control + Bluetooth connectivity
- Warranty:** 2+1 Years
UPS LiFePO4 UAV Power Station System Standout Features:
Intelligent Battery Temperature Management:** Automatic heating activation below 0°C during charging (AC or DC input), ensuring reliable cold-weather performance for BVLOS Antenna Tracking System deployments in arctic or high-altitude environments.
- Adjustable Charging Speed:** Customizable charge rates to protect grid infrastructure or generator sources.
- UPS Functionality:** Seamless zero-transfer-time backup for critical equipment.
- Expandable Architecture:** Cascade with EP3000-48V or EP3800-48V expansion batteries up to 4,864Wh total capacity.
- 12 Versatile Outputs:** Including PD 100W USB-C for modern device charging.
- Multi-Source Recharge:** AC, solar, car, generator, or AC+Solar simultaneous input.

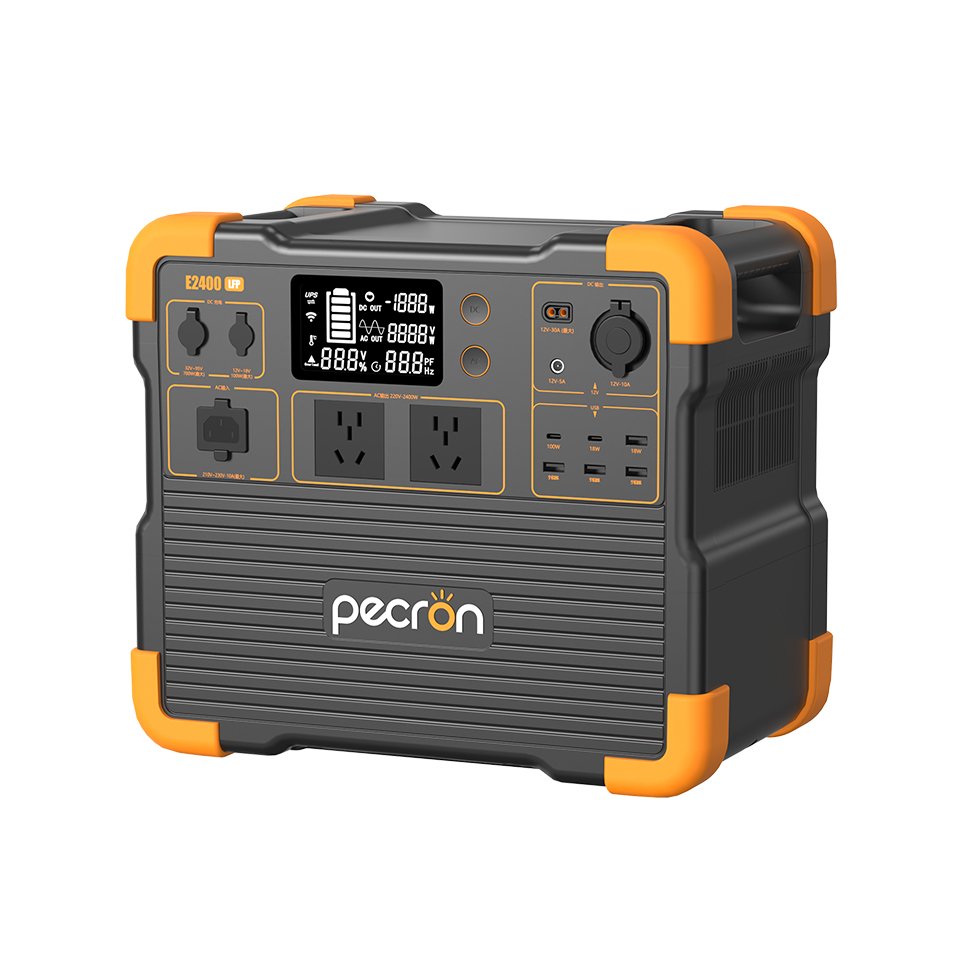

2. E2400LFP UPS LiFePO4 UAV Power Station System – 2,400W LiFePO4 Battery
The E2400LFP UPS LiFePO4 UAV Power Station System bridges the gap between portable convenience and industrial-grade output, delivering 2,400W of continuous power with a substantial 2,048Wh capacity. This model is optimized for medium-scale UAV operations requiring sustained energy for Long Range UAV Data Link ground stations and extended flight battery cycling.
UPS LiFePO4 UAV Power Station System Key Specifications:
- Rated Power:** 2,400W continuous / 4,000W surge (10ms)
- Battery Capacity:** 2,048Wh (51.2V / 40Ah LiFePO4)
- Output Voltage:** 100V–120V Pure Sine Wave
- Cycle Life:** 3,500+ cycles to 80%
- DC Output:** XT60 30A (12V)
- AC Input:** 100V–120V / 1,800W max (full charge in 1.5 hours)
- Solar Input:** Dual-port configuration – DC5521 (12V–18V / 100W) + GX16MF (32V–95V / 700W)
- Charging Time:** 1.5 hours
- Dimensions:** L14.8 × W9.3 × H13 in
- Weight:** 45 lbs (20.5 kg)
- Operating Temperature:** Charge: 0°C to 45°C; Discharge: -20°C to 45°C
- Smart Control:** Dedicated APP + Wi-Fi remote control
- Warranty:** 2+1 Years
UPS LiFePO4 UAV Power Station System Standout Features:
- Dual Solar Input Architecture:** Supports both low-voltage portable panels and high-voltage fixed arrays for maximum deployment flexibility.
- Massive Expandability:** Cascade up to 2× EP3800-48V expansion units, scaling total capacity to 9,728Wh—sufficient for multi-day off-grid UAV Control Station operations.
- Enhanced XT60 Output:** 30A rating supports higher-current UAV battery chargers and auxiliary equipment.

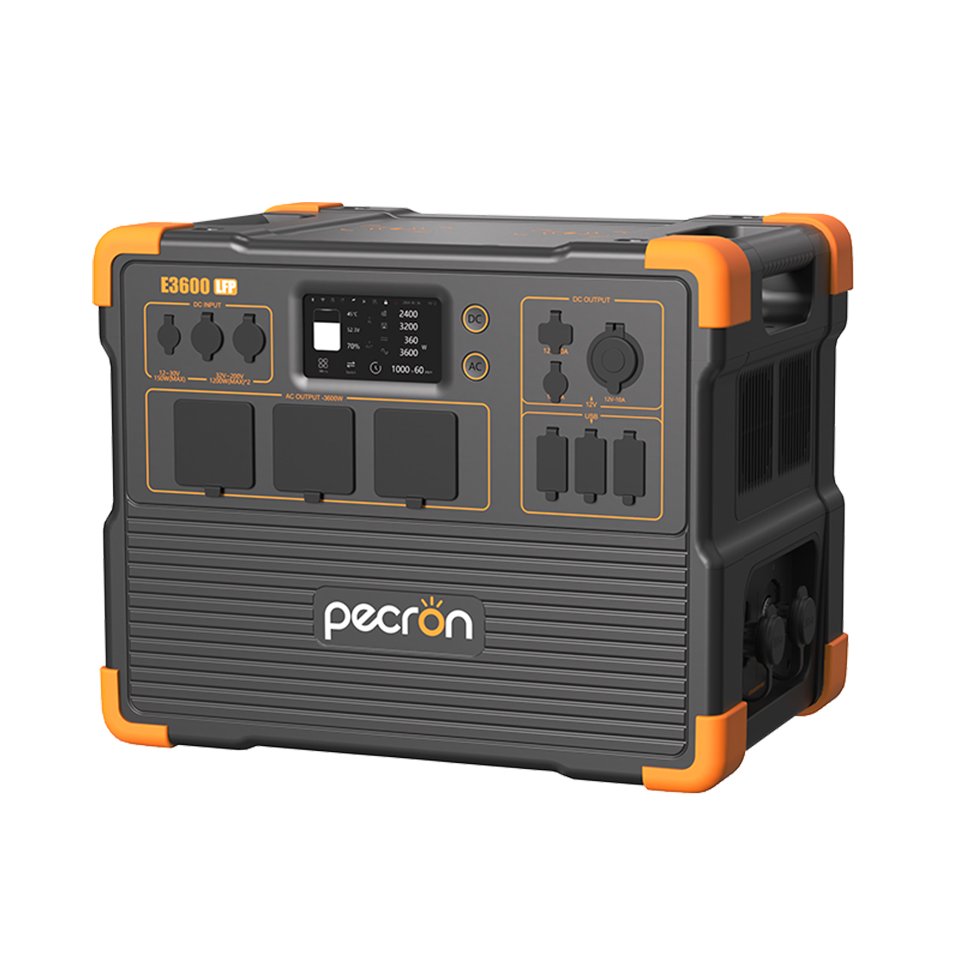

3. E3600LFP UPS LiFePO4 UAV Power Station System – 3,600W LiFePO4 Battery
The E3600LFP UPS LiFePO4 UAV Power Station System represents the high-performance tier, engineered for heavy-duty UAV industrial applications and parallel 240V split-phase configurations. Its 3,600W bidirectional PSW Inverter and 3,072Wh base capacity establish a new benchmark for portable energy density.
UPS LiFePO4 UAV Power Station System Key Specifications:
- Rated Power: 3,600W continuous / 7,000W surge
- Battery Capacity:** 3,072Wh (expandable up to 18,432Wh with 4× EP3800-48V)
- Output: 100V–120V Pure Sine Wave; 240V split-phase capable (2× E3600LFP + 240V box = 7,200W)
- AC Input: 3,200W (30A cable, 1.3h) or 1,800W (15A cable, 1.8h)
- Solar Input: 2× XT60 ports, 32V–150V / 20A max each (2,400W total max)
- DC Output: XT60 30A (12V)
- Smart Control: UPS mode, Wi-Fi control, APP control
- Additional Features: 16 versatile outputs, 15W wireless charger, PD 100W USB-C
- Warranty: 2+3 Years
UPS LiFePO4 UAV Power Station System Standout Features:

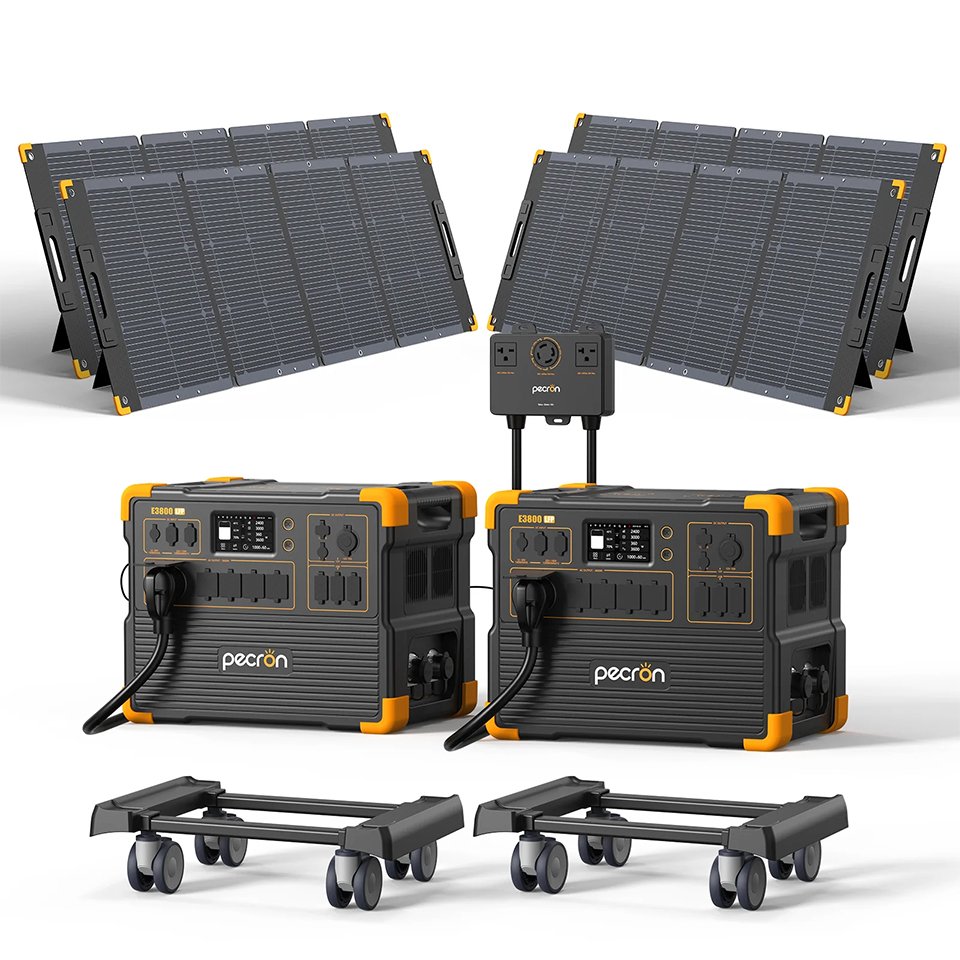

- Split-Phase 240V Capability:** Pair two units with a 240V distribution box to deliver 7,200W at 240V—critical for industrial equipment and high-voltage UAV ground support systems.
- Customizable Charging Rate:** Fine-tune AC charge current to match available grid or generator capacity.
- Bidirectional Inverter Technology:** Enables both charging and discharging through the same AC port, simplifying system architecture.
4. E4200LFP UPS LiFePO4 UAV Power Station System – 4,200W LiFePO4 Battery
The flagship E4200LFP delivers uncompromising power for the most demanding UAV Industrial Solution deployments. With 4,200W continuous output and 3,840Wh base capacity expandable to an extraordinary 26,880Wh, this unit serves as the central power hub for large-scale unmanned system operations.
UPS LiFePO4 UAV Power Station System Key Specifications:
- Rated Power: 4,200W continuous / 7,000W+ surge
- Battery Capacity: 3,840Wh (expandable to 26,880Wh with 6× EP3800-48V)
- Output: 100V–120V Pure Sine Wave; 240V split-phase (2× E4200LFP + 240V box = 8,400W)
- AC Input: 3,200W (30A cable, 1.4h) or 1,800W (15A cable, 2.5h)
- Solar Input: 2× XT60 ports, 32V–150V / 20A max each (3,000W total max)
- DC Output: XT60 30A (12V)
- Smart Features: Built-in automation, intelligent usage statistics, Bluetooth + APP control
- Outputs: 14 versatile ports including PD 100W USB-C
- Warranty: 3+2 Years
UPS LiFePO4 UAV Power Station System Standout Features:
- Intelligent Usage Statistics: Real-time energy monitoring and historical analytics for operational optimization.
- Maximum Solar Harvest: 3,000W solar input capacity supports rapid field replenishment via high-efficiency PV arrays.
- Bluetooth Connectivity: Direct local pairing for secure, low-latency control in RF-sensitive environments.

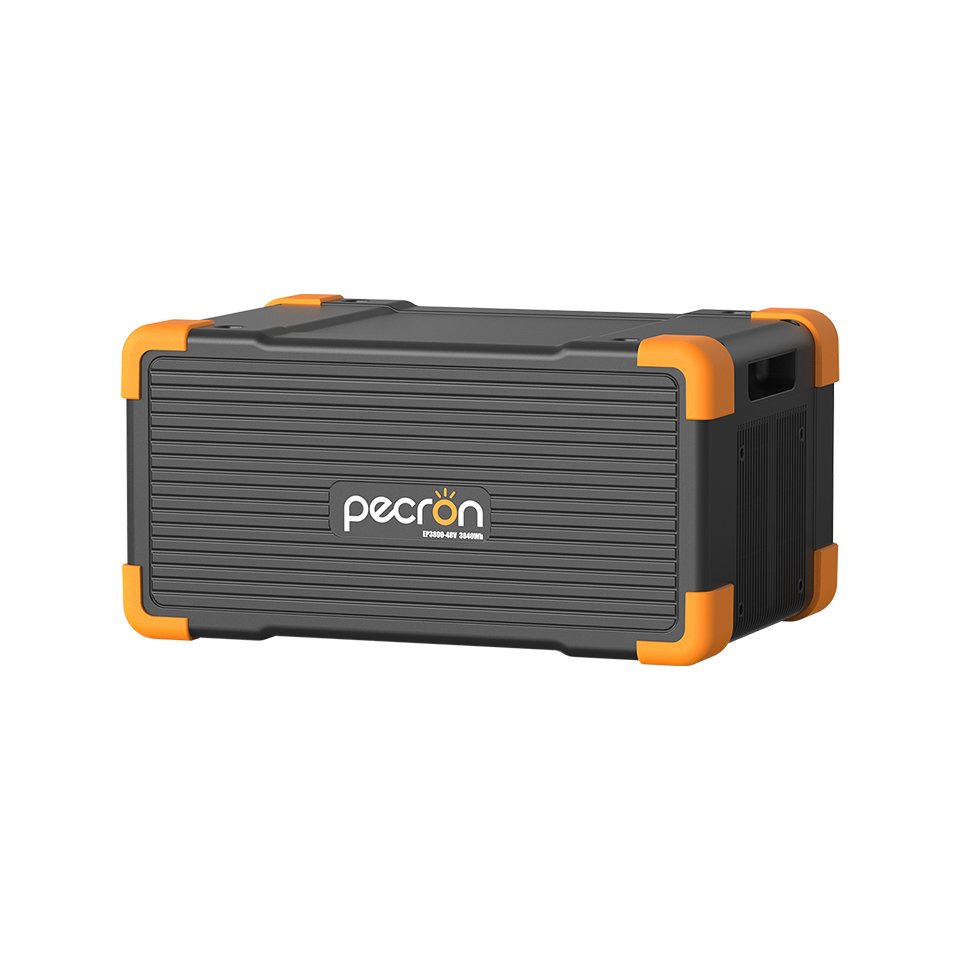

5. EP-48V Expansion Battery – 3,840Wh Modular Capacity LiFePO4 Portable Power Station System
The EP-48V expansion battery seamlessly integrates with the E1800LFP, E2400LFP, E3600LFP, and E4200LFP models, enabling linear capacity scaling without system downtime.
UPS LiFePO4 UAV Power Station System Specifications:
- Capacity: 3,840Wh (51.2V / 75Ah LiFePO4)
- Cycle Life: 3,500+ cycles to 80%
- Dimensions: L441 × W312 × H223 mm (17.3 × 12.2 × 8.8 in)
- Weight: ~30.3 kg (66.8 lbs)

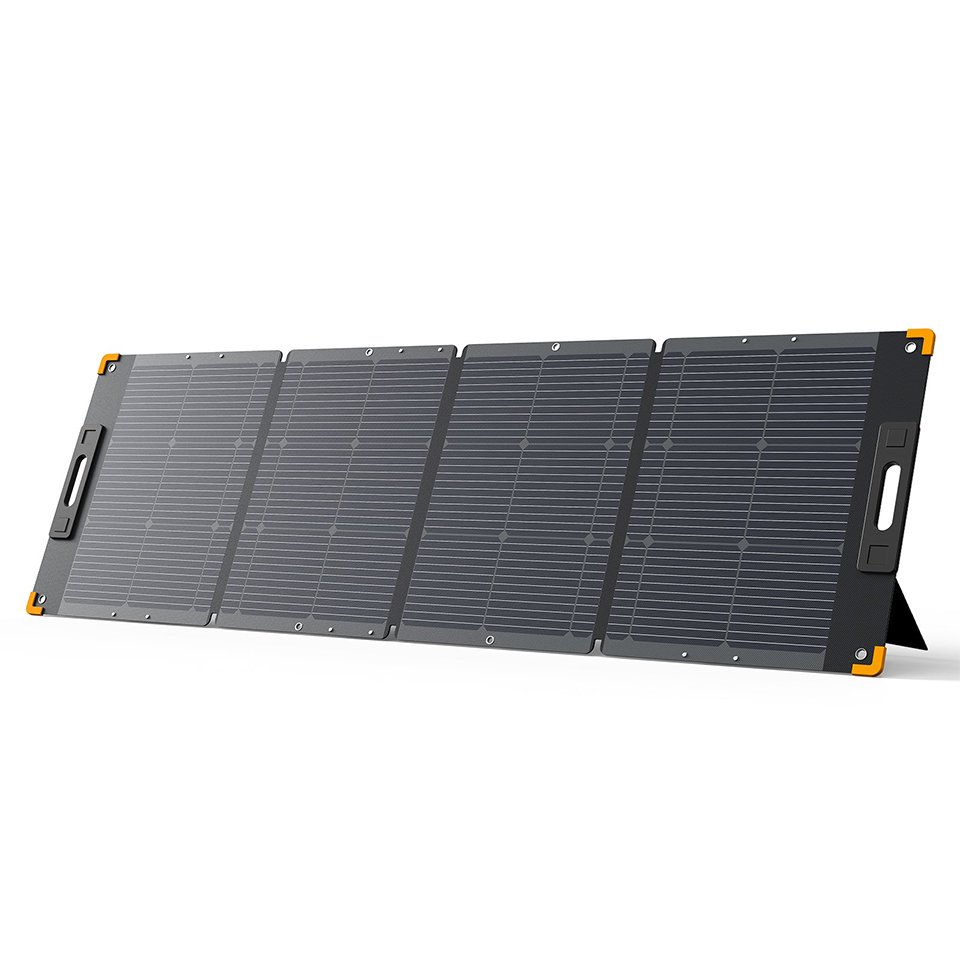

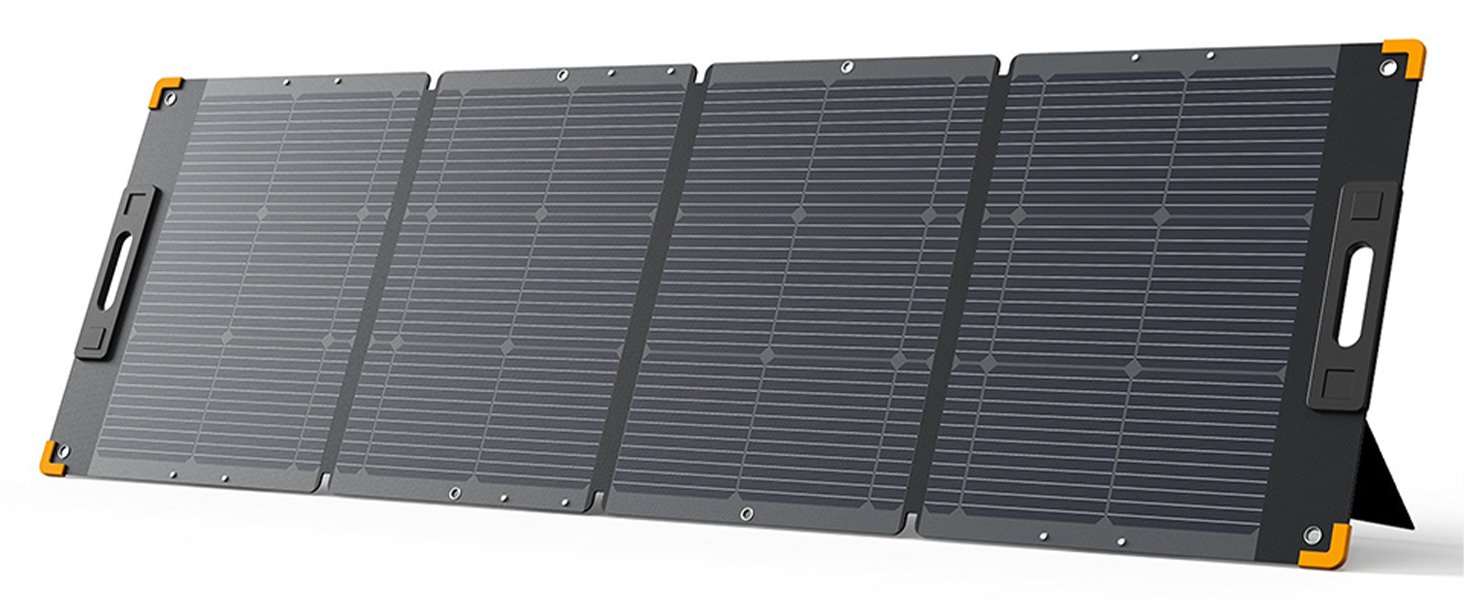

6. PV-300W Portable Solar Panel – IP67 Waterproof
Complement your SoarApex power station with the PV-300W foldable solar panel, engineered for off-grid UAV operations and emergency energy independence.
UPS LiFePO4 UAV Power Station System Key Features:
- High Conversion Efficiency: Monocrystalline cells achieve up to 25% efficiency, outperforming conventional panels in elevated temperatures.
- Universal MC4 Connectors: Standardized output ensures compatibility with most solar-ready devices and photovoltaic systems.
- IP67 Ingress Protection: Fully waterproof and dust-tight for all-weather deployment.
- Ultra-Portable Design: Folds to 636 × 789 × 49 mm; weighs only 12.74 kg.
UPS LiFePO4 UAV Power Station System Specifications:
- Maximum Power: 300W ±5%
- Operating Voltage: 36V ±5%
- Operating Current: 8.3A ±5%
- Open Circuit Voltage (Voc): 41.4V ±5%
- Short Circuit Current (Isc): 8.7A ±5%
- Cell Efficiency: ≥25%
- Operating Temperature: -10°C to +65°C
- Unfolded Size: 2,362 × 787 × 4.5 mm
*Storage Note: Store panels upright when not in use. Avoid stacking heavy or sharp objects to prevent cell damage, and keep away from standing water.*
Why Choose SoarApex UPS LiFePO4 UAV Power Station System?
- Uninterruptible Power Supply (UPS) Integration: Zero-transfer-time switching protects sensitive UAV avionics, UAV Control Station computers, and telemetry equipment from power anomalies.
- LiFePO4 Chemistry Superiority: Compared to traditional lithium-ion, lithium iron phosphate batteries offer enhanced thermal stability, longer cycle life, and improved safety profiles—critical for field-deployed energy systems.
- Industrial-Grade XT60 Connectivity: Standardized XT60 connectors ensure compatibility with the vast majority of UAV battery chargers, FPV equipment, and RC power systems.

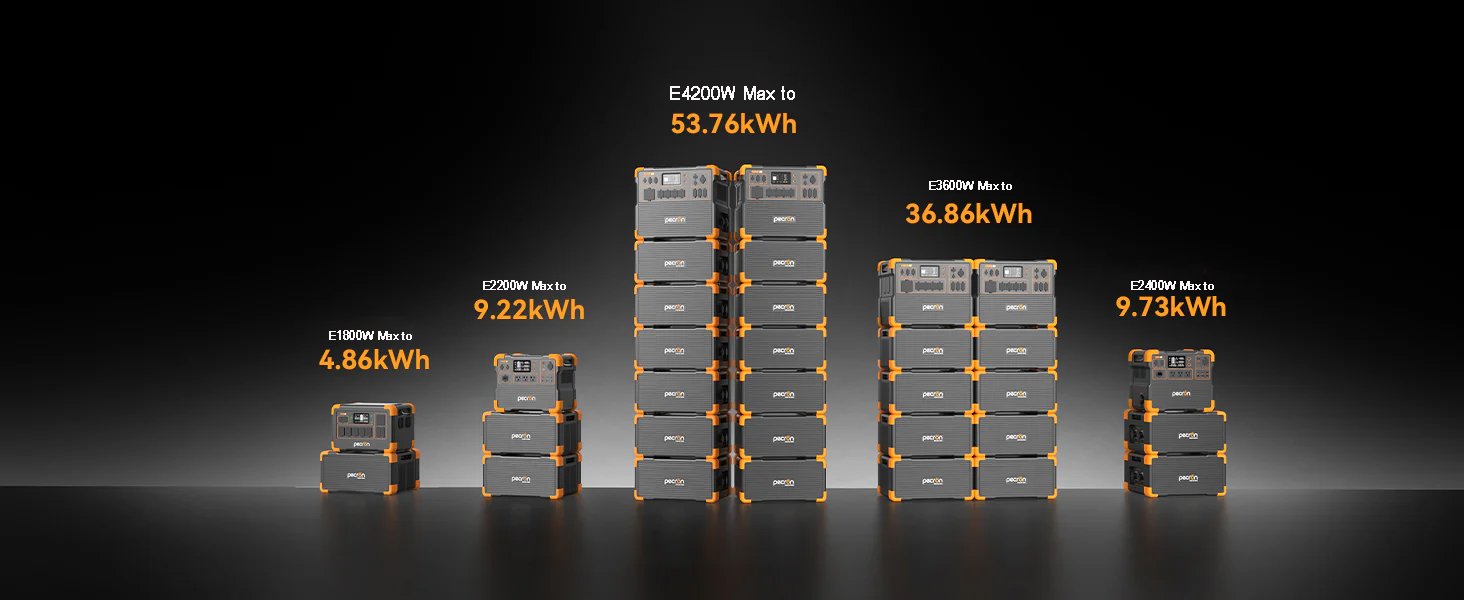

- Scalable Architecture: Modular expansion from 1,024Wh to 26,880Wh accommodates operations from single-drone hobbyists to enterprise UAV Industrial Solution fleets.
- Multi-Protocol Charging: AC super-fast charging, high-voltage solar arrays, 12V vehicle ports, and generator input provide unmatched operational flexibility.
- Smart Connectivity: Wi-Fi and Bluetooth APP control enable remote monitoring, firmware updates, and power scheduling—essential for autonomous Long Range UAV Data Link stations.
LiFePO4 Portable Power Station System Applications:
- UAV Fleet Charging: Rapid-cycle charging for Multi-rotor Drones, Fixed-wing Platforms, and FPV & Specialized Platforms in remote locations.
- BVLOS Ground Stations: Reliable power for BVLOS Antenna Tracking System hardware and directional radio equipment.
- Emergency Backup: Residential and commercial UPS protection during grid outages.
- Field Research & Survey: Silent, emission-free power for environmental monitoring and geospatial data collection.
- Film & Aerial Photography: Clean sine wave output prevents interference with camera stabilization systems and wireless video links.
Contact & Inquiry
For detailed technical documentation, fleet pricing, or custom integration consultation, please contact our engineering team.
