SIYI ZT30 Multi-Sensor Optical Pod
Precision power line inspection with 4K 30x optical zoom, EO/IR split-screen imaging, and AI-powered anomaly detection. Deployed on multi-rotor UAV platforms for transmission tower maintenance in high-voltage electromagnetic environments.
Power Inspection Challenges
Transmission tower environments present unique operational demands. The SIYI ZT30 inspection payload must function as the UAV’s “eyes” — stable, precise, and resilient against electromagnetic interference.
Unclear Imaging
Small defects like fine cracks, missing pins, and corrosion spots require high-resolution capture from a safe distance. Gimbal instability and wind disturbances cause blurring at full zoom.
Hidden Thermal Issues
Abnormal heating in tension clamp lead plates and other structural components is invisible to the naked eye. Infrared detection is essential for preventing potential failures before they occur.
Low Inspection Efficiency
Large-scale inspection tasks generate massive data volumes. Without AI assistance, operators struggle to filter valid information and identify high-frequency fault points quickly.
Electromagnetic Interference
High-voltage transmission lines generate strong electromagnetic fields that can disrupt payload electronics, gimbal control, and data link systems, risking operational failure.
Integrated Inspection System
A complete ecosystem combining the SIYI ZT30 payload with a professional multi-rotor UAV platform, ground control station, and mission planning software.
SIYI ZT30 Payload
4K EO + 640×512 IR + LRF
30x optical / 180x hybrid zoom
854g, -10°C to 50°C
UniDrone E900
Industrial-grade multi-rotor UAV
Anti-vibration quick-release mount
Extended flight endurance
UniRC 7Pro GCS
Handheld ground control station
Dual-channel HD video display
One-touch gimbal & thermal control
Field Operation Workflow
A four-step inspection protocol demonstrating the SIYI ZT30 capabilities in real-world transmission tower maintenance.
Step 1: System Integration & Pre-Flight

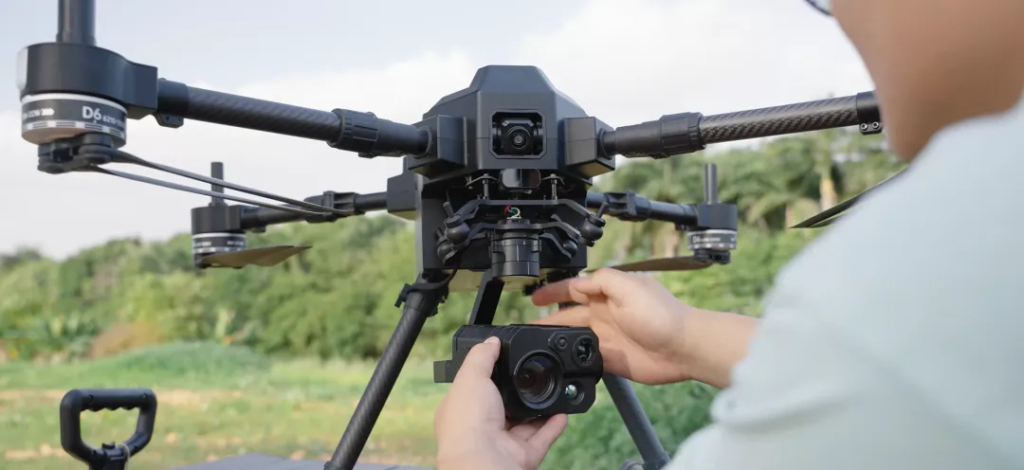

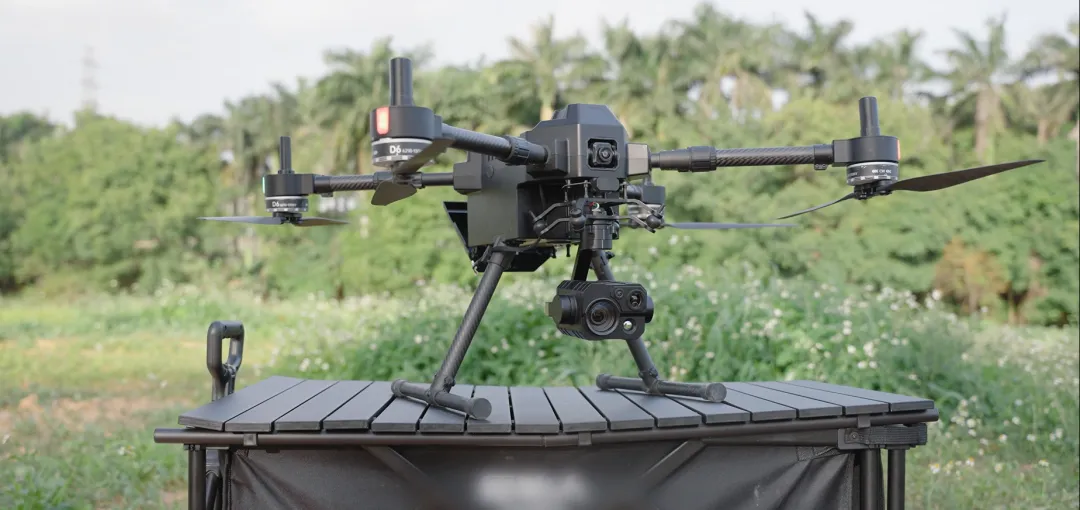

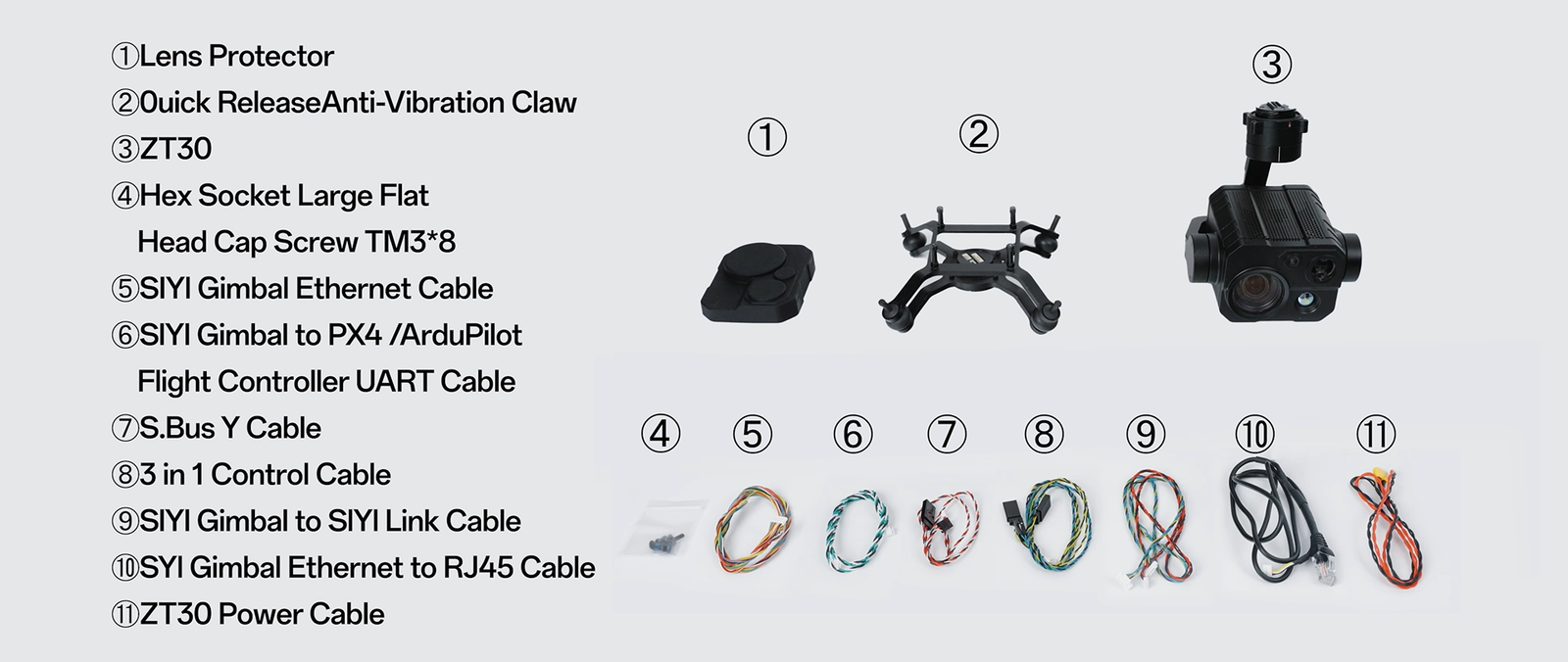

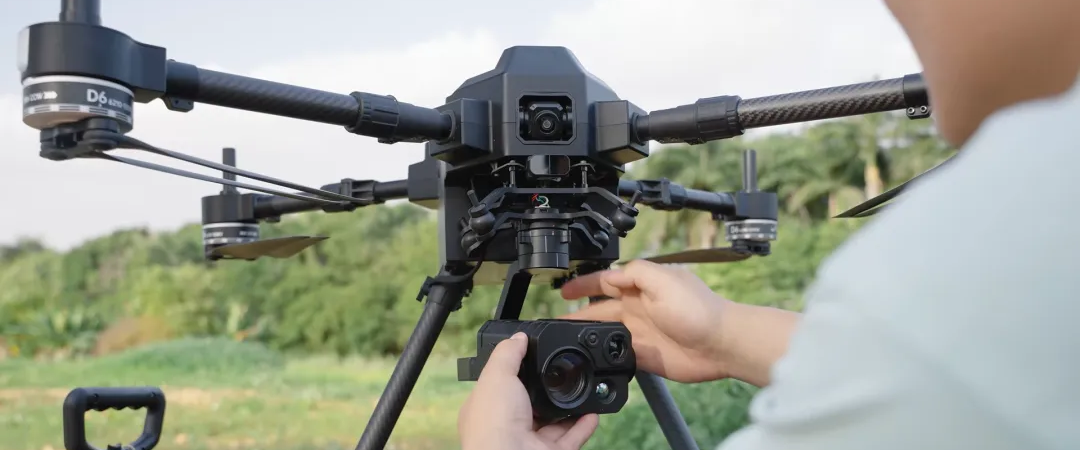

The ZT30 was mounted on the UniDrone E900 using an anti-vibration quick-release mount, ensuring stable imaging during flight operations. The team conducted comprehensive pre-flight checks including battery levels, component security, and lens cleanliness for both FPV and ZT30 optics.
Frequency matching was performed between the ground control station and the integrated data link system to establish reliable communication before takeoff from an open operational area.
- Anti-vibration quick-release payload mount
- Dual battery verification for extended missions
- Frequency matching for interference-free operation
- Lens calibration for EO and IR sensors
Step 2: HD Visible Light Inspection

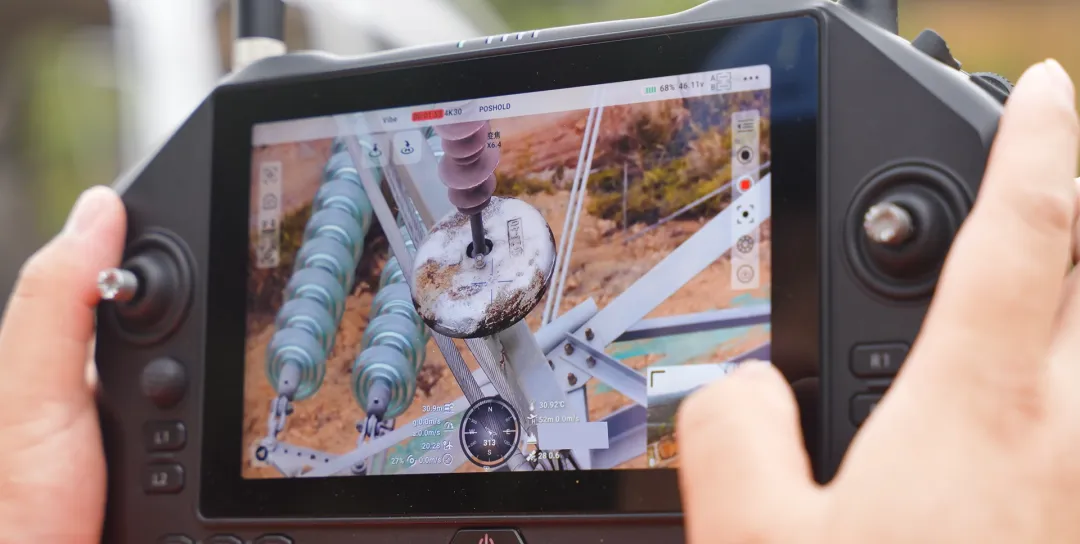

Operating at high altitude, the UAV inspected insulator integrity with SIYI ZT30 30x optical zoom and 180x hybrid zoom capabilities. The 4K sensor delivered crisp imagery that revealed dirt accumulation, rusted counterweights, damaged insulators, and displaced vibration dampers.
Wide-angle scanning identified a hanging phase sequence plate and a bird’s nest at the tower top — hazards that would be invisible from ground level. The three-axis stabilized gimbal ensured sharp imaging even at full zoom, with unlimited yaw rotation enabling complete 360° coverage.
- 4K ultra-wide-angle EO sensor
- 30x optical / 180x hybrid zoom
- Three-axis stabilized gimbal
- Unlimited 360° yaw rotation
Step 3: Infrared Thermal Analysis

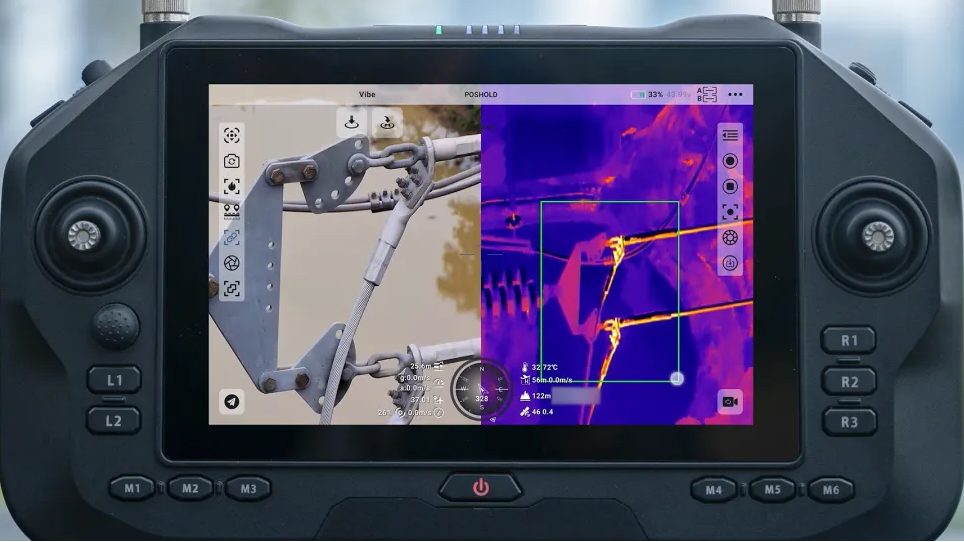

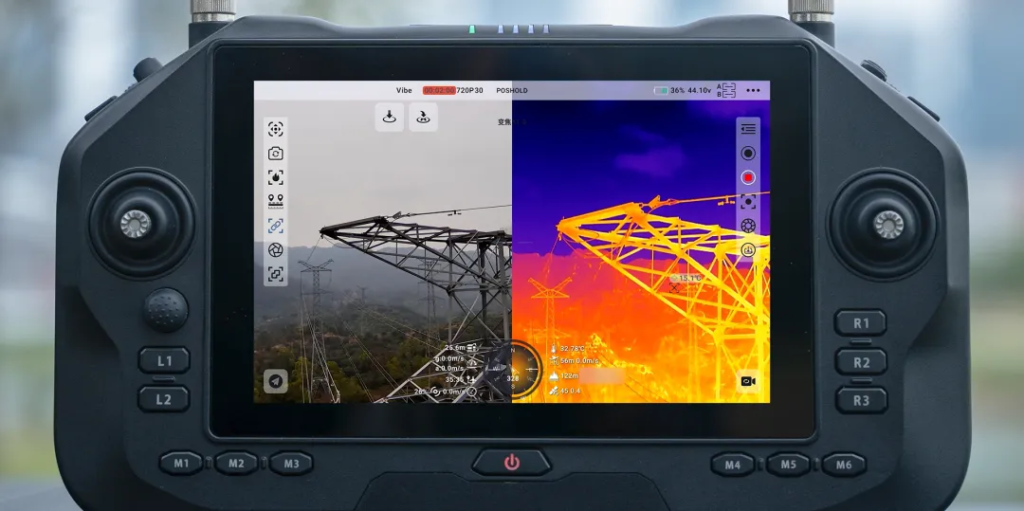

Using UniGCS’s split-screen EO/IR imaging with linked zoom, the team examined temperature conditions at critical points across the tower structure. The 640×512 IR sensor with 6x digital zoom enabled precise thermal profiling of tension clamp lead plates and connection points.
Three temperature measurement modes — point, area, and global — provided comprehensive thermal data. No abnormal heating was detected, confirming structural integrity. This SIYI ZT30 dual-sensor approach ensures no thermal anomalies escape detection, significantly reducing missed fault rates.
- 640×512 IR resolution with 6x zoom
- Split-screen EO/IR linked zoom
- Point / area / global temperature modes
- Real-time hotspot detection and alerting
Step 4: Data Archiving & Analysis

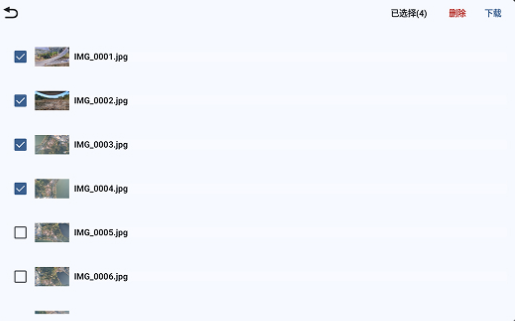

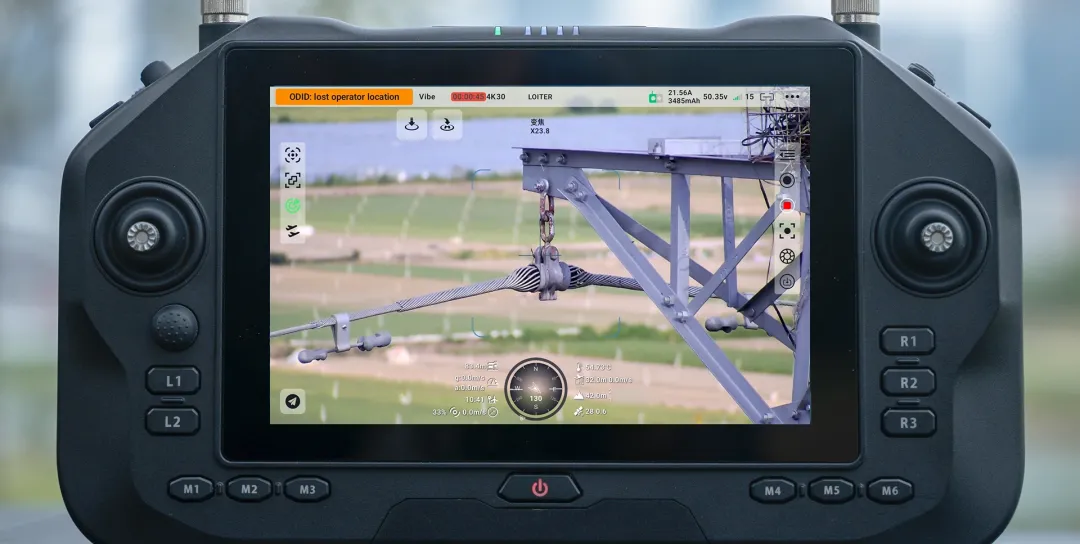

Following a safe return, all EO and IR imagery was exported for detailed analysis and historical comparison. The comprehensive dataset enables trend tracking across inspection cycles, supporting predictive maintenance strategies for transmission infrastructure.
When paired with portable power stations for extended field operations and antenna tracking systems for beyond-visual-line-of-sight missions, the SIYI ZT30 ecosystem delivers complete inspection workflow coverage from deployment to reporting.
- Dual-channel HD video export
- Historical data comparison
- Predictive maintenance support
- Comprehensive inspection reporting
ZT30 Performance Results
How the SIYI ZT30 addressed each critical challenge during the transmission tower inspection drill.
Imaging Clarity
4K sensor and 30x optical zoom significantly improved defect detection accuracy with minimal quality loss at high magnification. Stabilized gimbal eliminated motion blur.
Hidden Issue Detection
Split-screen EO/IR imaging with linked zoom enabled efficient temperature comparison and anomaly detection invisible to standard visible-light cameras.
Operational Efficiency
AI-based component recognition via SIYI’s AI Tracking Module II. Quick switching between wide-angle and zoom modes. Average power consumption of only 9W.
EMI Resilience
Zero interference-related issues in high-voltage electromagnetic environments. No video flickering, signal loss, or gimbal control errors during the entire operation.
